Cable Tray Roll Forming Making Machine with Punching Holes And Holes Distance High Dimensional Accuracy Is Required

Cable Tray Roll Forming Making Machine with Punching Holes And Holes Distance High Dimensional Accuracy Is Required High Accuracy Permissible Deviation Linear Dimension External Radii Chamfer Heights

  • YD-CT-03

  • YTSING

  • 8455229090

Working Stations:
18 SETS
Availability:
Inquire Add to Basket

Cable tray making machine other construction material machine

Equipment components: Manual uncoiler, Punching dies,Roll forming machine, computer control system, hydraulic control system, cutting, out table

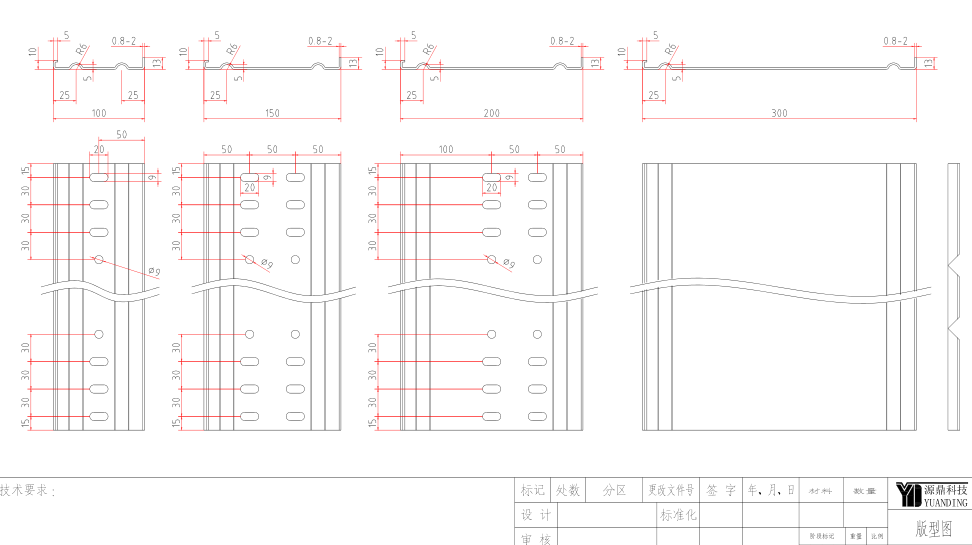

>>>Profile drawings

b551298b4f1c2fb3d72b2406e695915

 Parameter
Finished Product Thickness 0.8-2.0mm
Material Galvanized/Carbon   Steel Coil
Effective width 100mm、150mm,200mm,300mm
Machine Main Specification
Coiler Dimensions for   decoiler 500*800*800mm
Capacity 3 tons
Mandrel expansion by manual


Punching unit Punching Material Cr12.Mov.HRC58-62
Roll forming part Dimensions for   rollformer 15000*1800*1500mm
Structure Column
Working Station 18working stations
Roller Material GCr15,Double   machining
Shaft Diameter 76mm
Driving System Chain driving
Main power 15KW
Cutter Material mould blade
Power of hydraulic station 5.5KW
Cutting   System Hydraulic


成型2

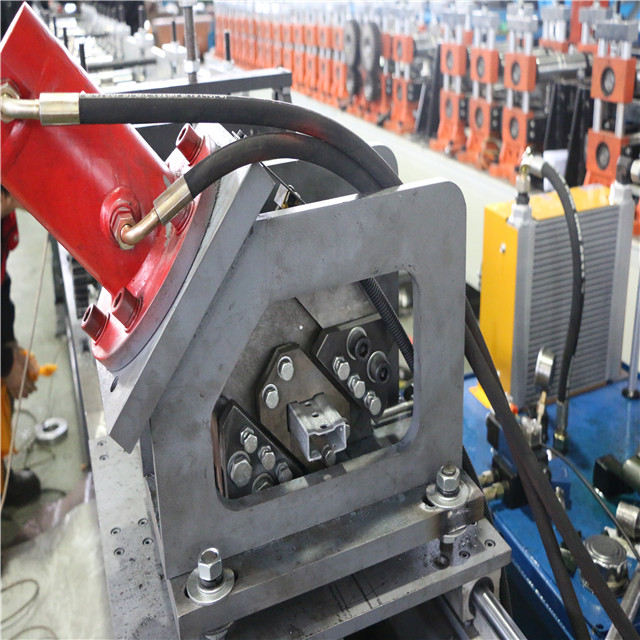

剪切
