Guide rail for solar support roll forming machine

Guide rail for solar support roll forming machine

  • YD-GR-02

  • YTSING

Availability:
Inquire Add to Basket

Guide rail for solar support roll forming machine

Parameter
Finished Product Thickness 1.2-2.0mm
Material GI
Coil width AS PROFILE
Machine Main Specification
Coiler Dimensions for   decoiler 1000*1800*1500mm
Capacity 3tons
Mandrel expansion by Hydraulic


Roll forming part Dimensions for   rollformer 8000*1500*1500mm
Structure Column
Working Station 22 working stations
Roller Material Cr12.Mov.HRC58-62
Shaft Diameter 75mm
Driving System CHAIN driving
Main power 11KW*2
Cutter Material Cr12.Mov.HRC58-62
Power of hydraulic station 4.5KW
Cutting  System Hydraulic

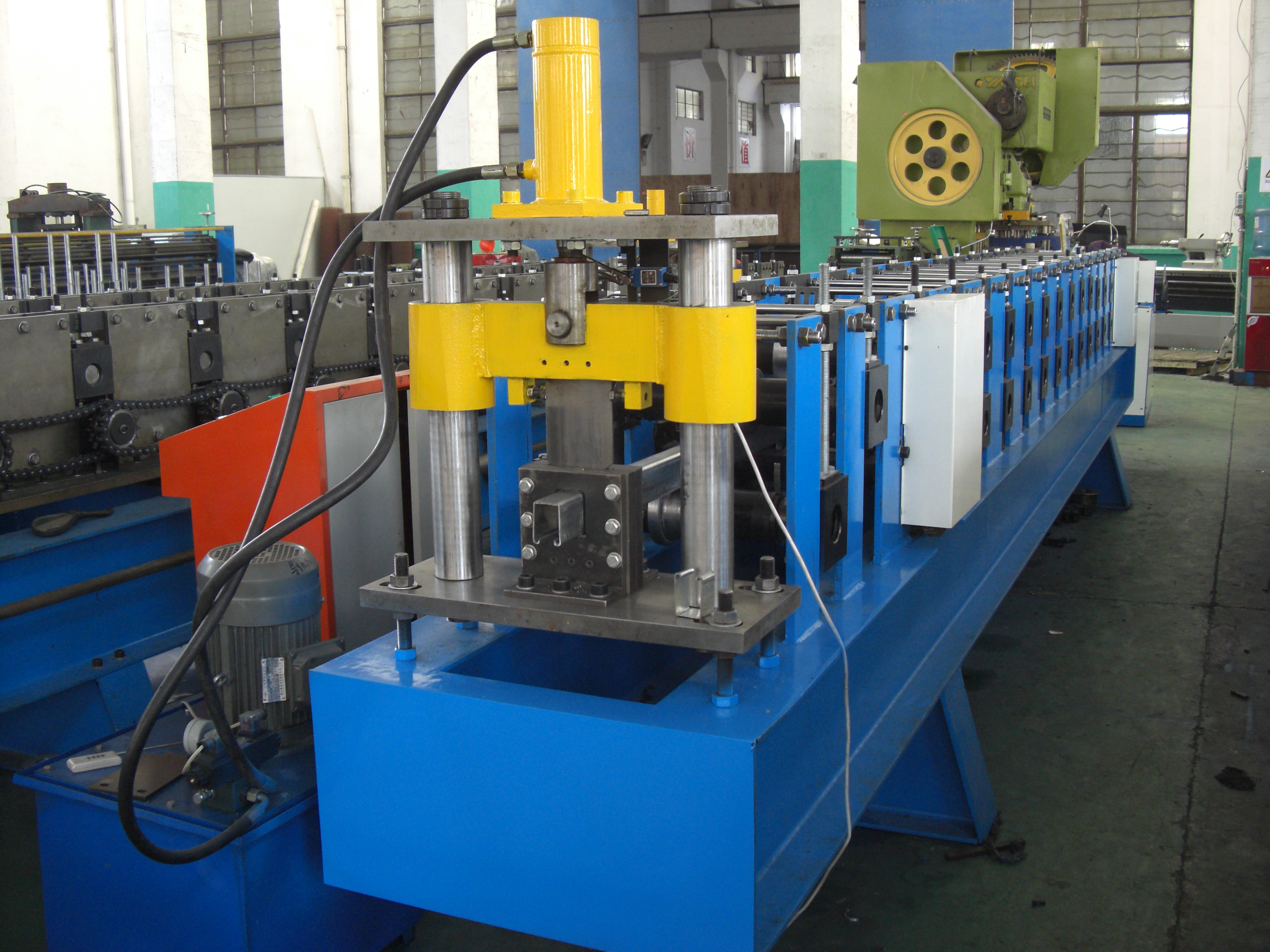

gaiderail16
