YD-RS-04
YTSING

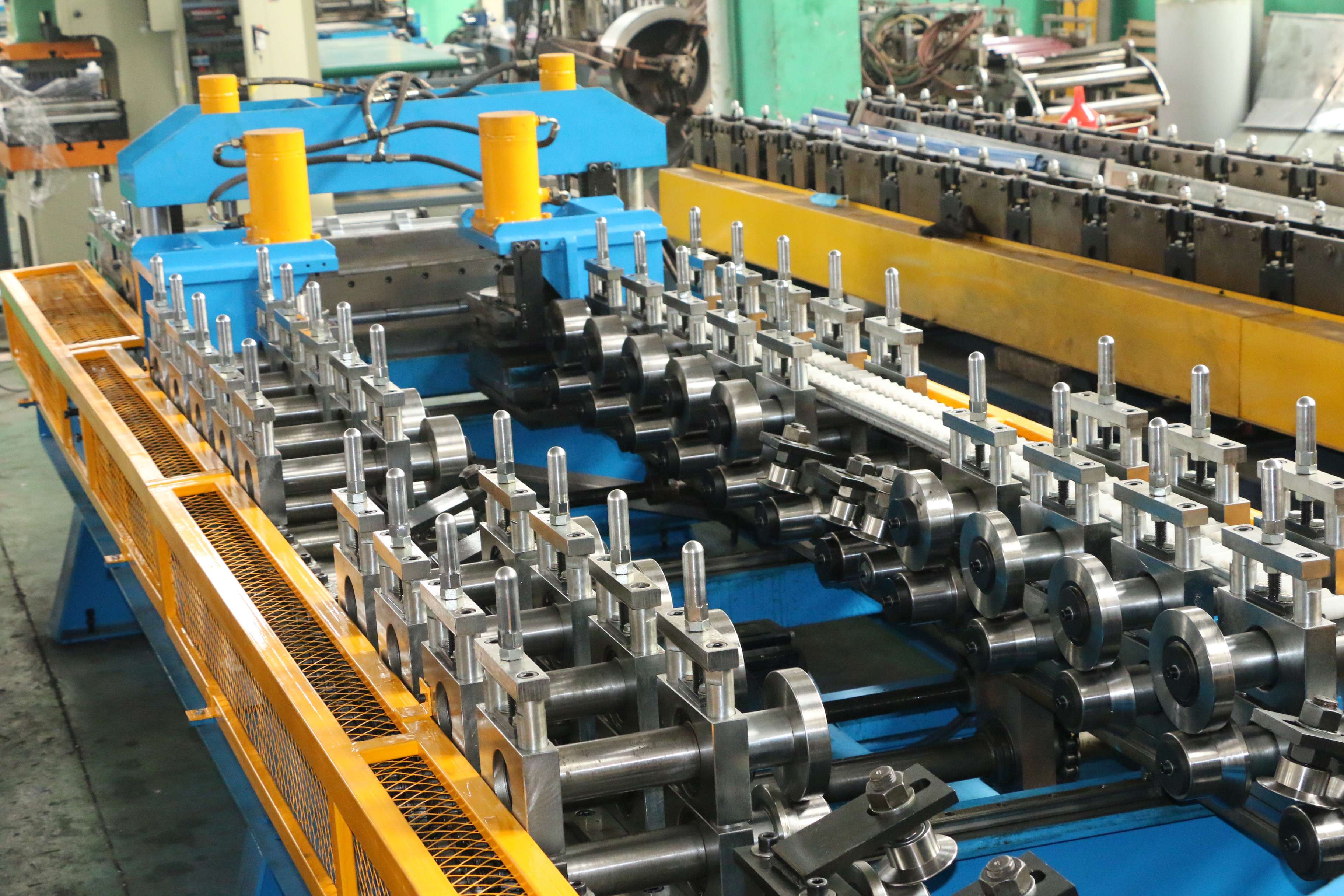

Box panel/ rack shelf making machine with change width automatically
| Parameter | ||
| Finished Product | Thickness | 0.9-1.2mm |
| Material | GI | |
| Coil width | AS PROFILE | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 1200*1800*1500mm |
| Capacity | 5tons | |
| Mandrel expansion by | Hydraulic | |
| Leveling part | power | 3.0kw |
| Punching unit | Dimensions for punching | 2000*1200*1500mm |
| Punching machine | Hydraulic | |
| Punching Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 7.5KW | |
| Roll forming part | Dimensions for rollformer | 8000*1500*1500mm |
| Structure | Column | |
| Working Station | 10-12 working stations | |
| Roller Material | Cr12.HRC58-62 | |
| Shaft Diameter | 75mm | |
| Driving System | CHAIN driving | |
| Main power | 11KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 7.5KW | |
| Cutting System | Hydraulic | |
