sharethis sharing button

Profiling Line For The Poduction of The Profile Lodgment Shuttle Roll Forming Machine

  • YD-RK-03

  • YTSING

Availability:
Product Description

Total power required

32.9kw

Working Station
24 sets
Max.shaft diameter
85mm
Motor power
18.5KW

Dimensions (L*W*H)

11m*1.6m*1.5m

Overall packing s hipment


Total 2X40gp container

Working hours per day

8 to 16 hours

Set up t ime

20 mins

Line d irection

Left to right while facing operator panel

Machine frame

H-BEAM frame

Variable line speed

0-8m/min

Material loading system

Manual

MAJOR EQUIPMENTS we designed as below:

A - DECOILER.....................................................................PASSIVE DECOILER WITH LEVELING

B-PUNCHING UNIT.....................................................................SERVO FEEDING AND PRESS MACHINE PUNCHING

C- INFEEDER APPLICATOR.........................................TO GUIDE MATERIAL

D- ROLL FORMING UNIT............................TO ROLLING THE DRAWING PROFILE

E-CUTTING SYSTEM...................................HYDRAULIC CUT TO LENGTH

F- OUTPUT TABLE...... ......................SUPPORT THE FINISHED PRODUCTS

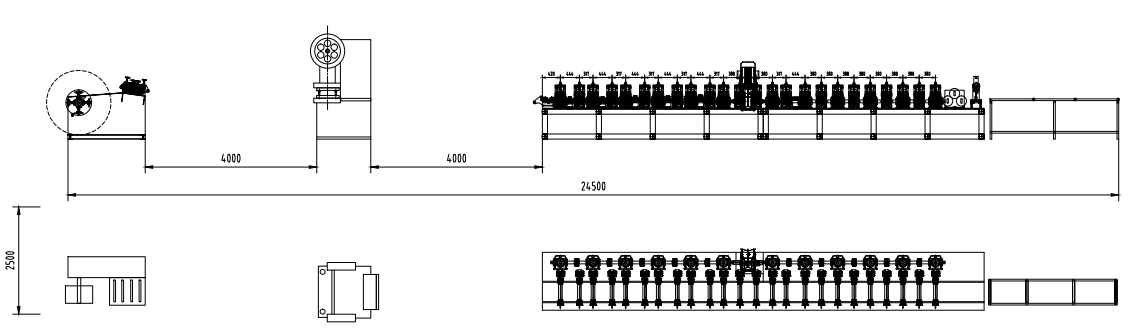

MACHINE WORKING FLOW
