YD-CT-02
YTSING
Working Stations: | |
---|---|
Availability: | |
Cable tray making machine other construction material machine
Equipment components: Manual uncoiler, Punching dies,Roll forming machine, computer control system, hydraulic control system, cutting, out table
>>>Profile drawings
Parameter | ||
Finished Product | Thickness | 0.8-2.0mm |
Material | Galvanized/Carbon Steel Coil | |
Effective width | 100mm、150mm,200mm,300mm | |
Machine Main Specification | ||
Coiler | Dimensions for decoiler | 500*800*800mm |
Capacity | 3 tons | |
Mandrel expansion by | manual | |

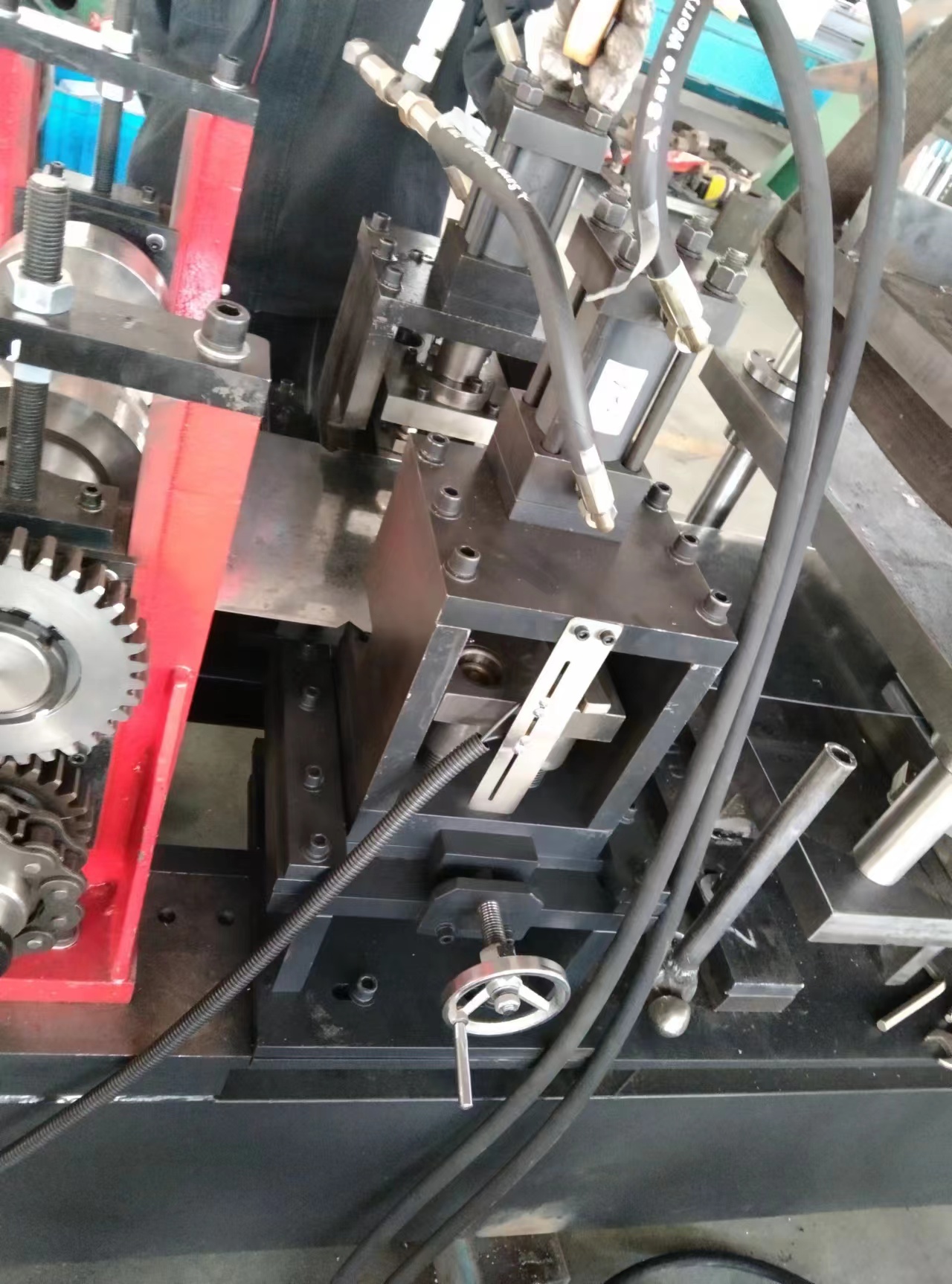

Punching unit | Punching Material | Cr12.Mov.HRC58-62 |
Roll forming part | Dimensions for rollformer | 15000*1800*1500mm |
Structure | Column | |
Working Station | 18working stations | |
Roller Material | GCr15,Double machining | |
Shaft Diameter | 76mm | |
Driving System | Chain driving | |
Main power | 15KW | |
Cutter Material | mould blade | |
Power of hydraulic station | 5.5KW | |
Cutting System | Hydraulic |
Cable tray making machine other construction material machine
Equipment components: Manual uncoiler, Punching dies,Roll forming machine, computer control system, hydraulic control system, cutting, out table
>>>Profile drawings
Parameter | ||
Finished Product | Thickness | 0.8-2.0mm |
Material | Galvanized/Carbon Steel Coil | |
Effective width | 100mm、150mm,200mm,300mm | |
Machine Main Specification | ||
Coiler | Dimensions for decoiler | 500*800*800mm |
Capacity | 3 tons | |
Mandrel expansion by | manual | |
Punching unit | Punching Material | Cr12.Mov.HRC58-62 |
Roll forming part | Dimensions for rollformer | 15000*1800*1500mm |
Structure | Column | |
Working Station | 18working stations | |
Roller Material | GCr15,Double machining | |
Shaft Diameter | 76mm | |
Driving System | Chain driving | |
Main power | 15KW | |
Cutter Material | mould blade | |
Power of hydraulic station | 5.5KW | |
Cutting System | Hydraulic |
