YD-AF-01
YTSING
Air Filter Frame making machine with automatically bending corner
Product Description:
| 参数 Parameter | ||
| Finished Product | Thickness | 1.0-1.2mm |
| Material | Galvanized/Carbon Steel Coil | |

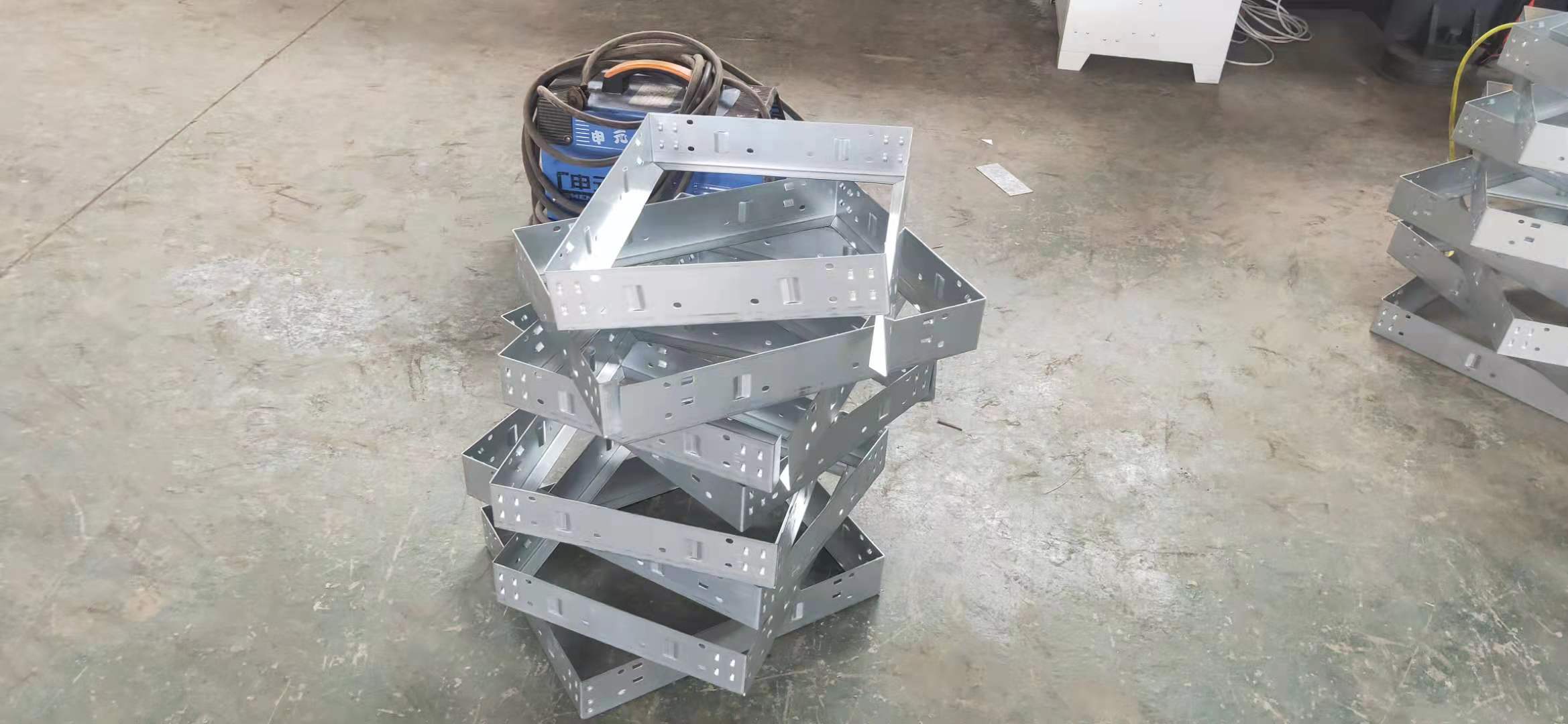

| Size of frame | 610*610、610*320、610*505、505*505 | |
| Machine Main Specification | ||
| Coiler+leveling | Dimensions for decoiler | 1500*1000*1200mm |
| Capacity | 3 tons | |
| Mandrel expansion by | Manual | |
| Power of leveling | 2.2KW | |

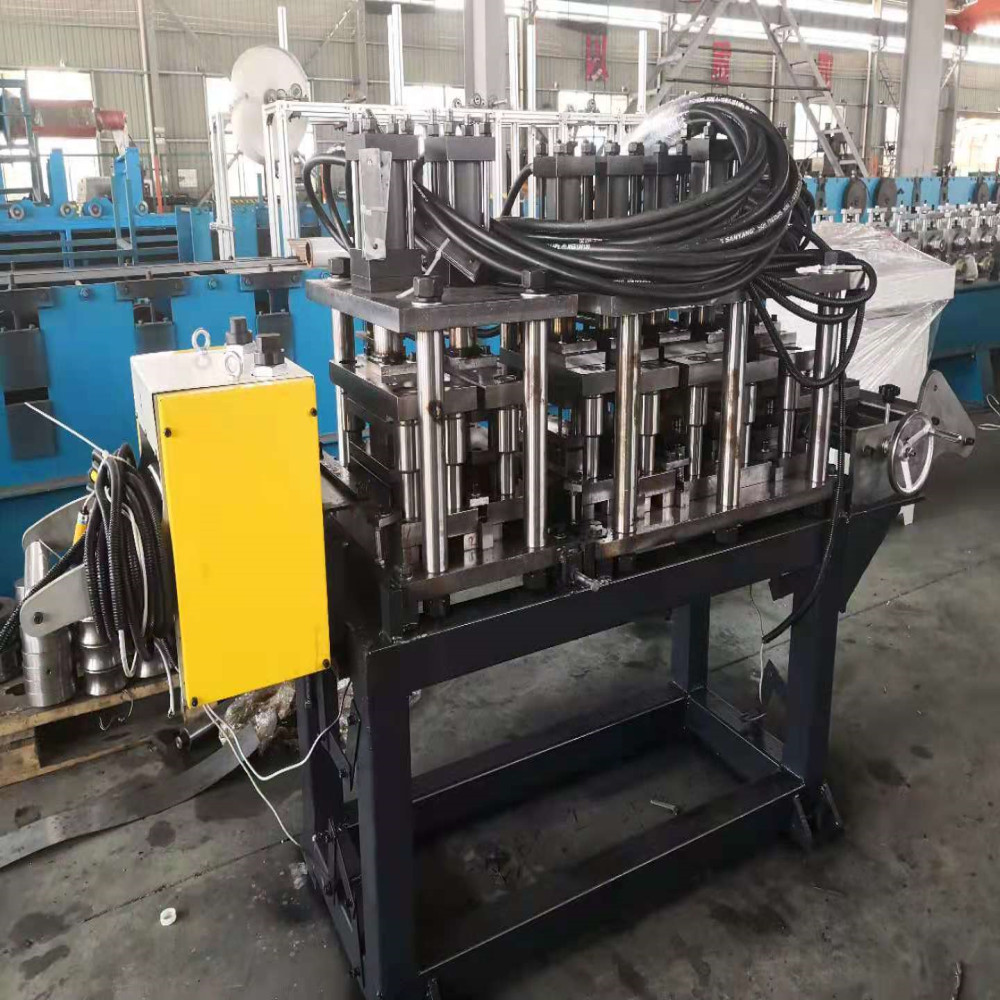

| Punching unit | Dimensions for punching | 2000*800*1500mm |
| Power servo motor | 1.8KW | |
| Punching Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 5.5KW | |

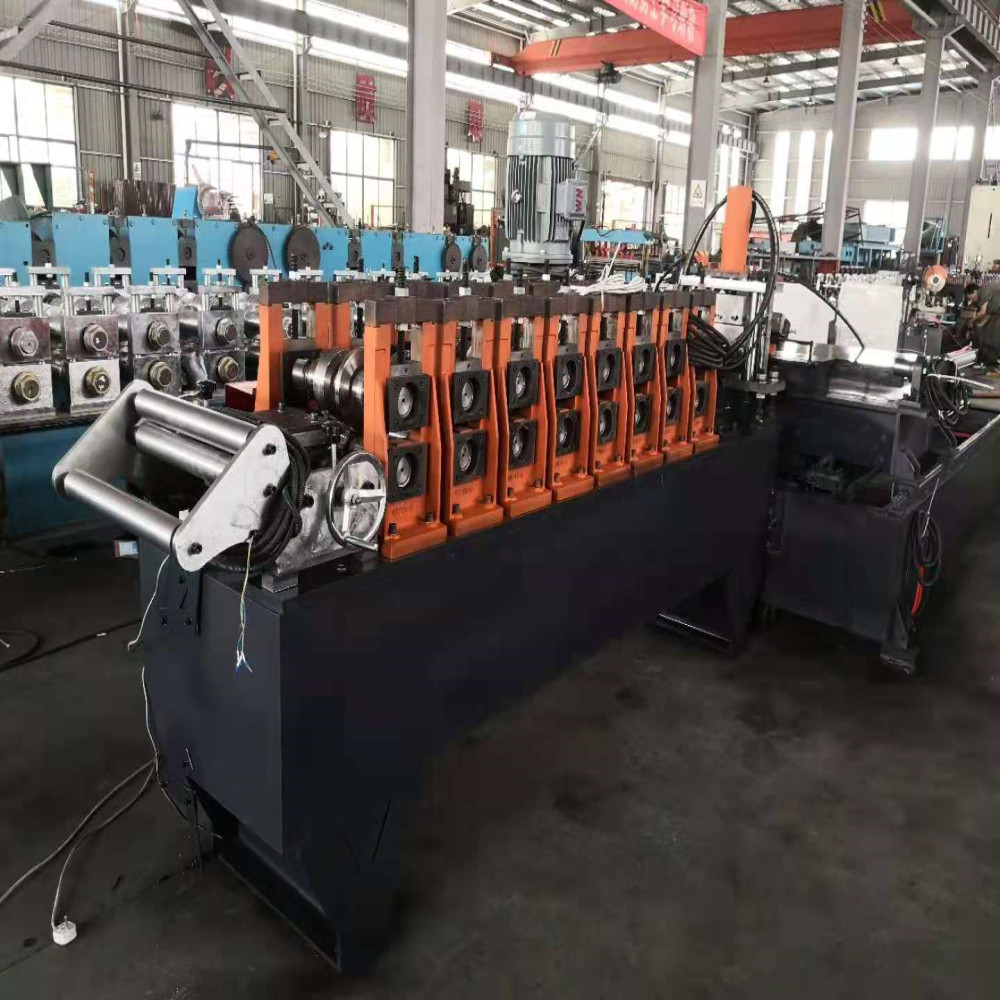

| Roll forming part | Dimensions for rollformer | 4200*1000*1500mm |
| Structure | Column | |
| Working Station | 8 working stations | |
| Roller Material | Cr12.HRC58-62 | |
| Shaft Diameter | 76mm | |
| Driving System | Chain driving | |
| Main power | 7.5KW | |

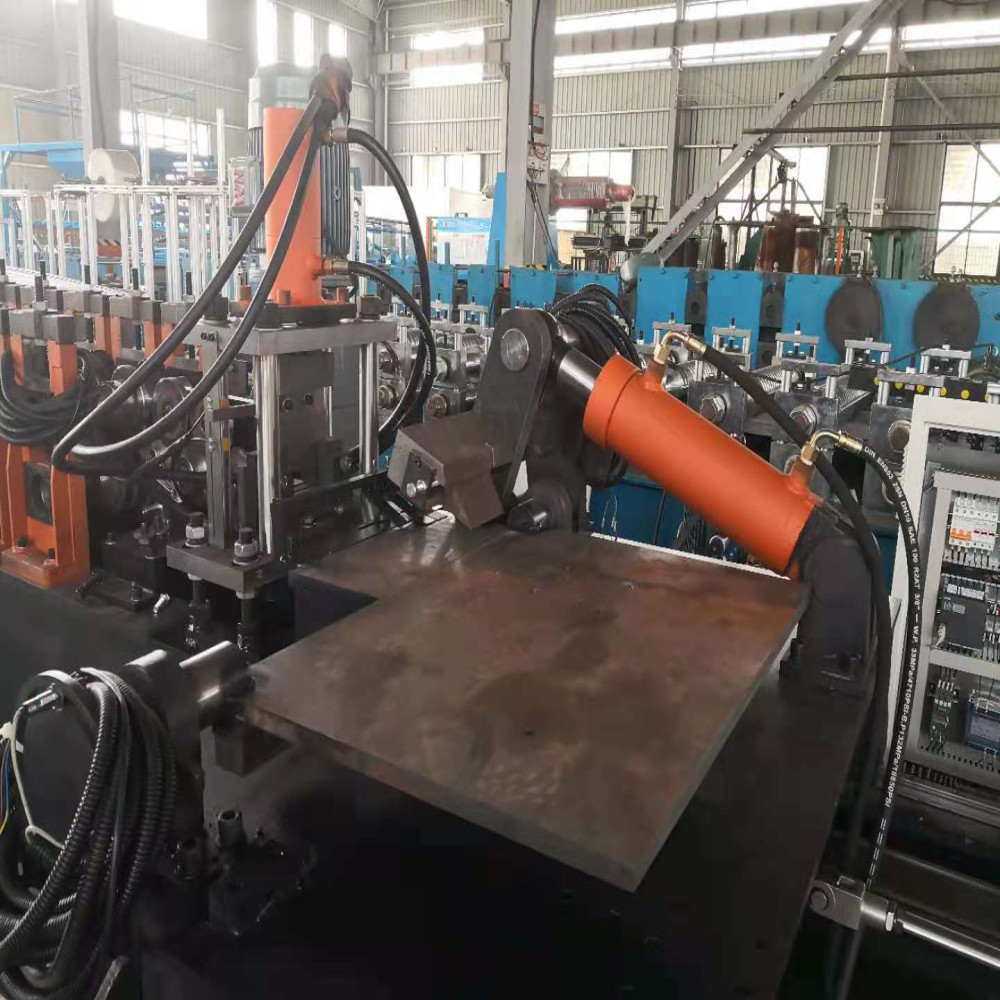

| Cutting device+bending | Dimensions | 3000*1000*1500mm |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Cutting System | Hydraulic | |

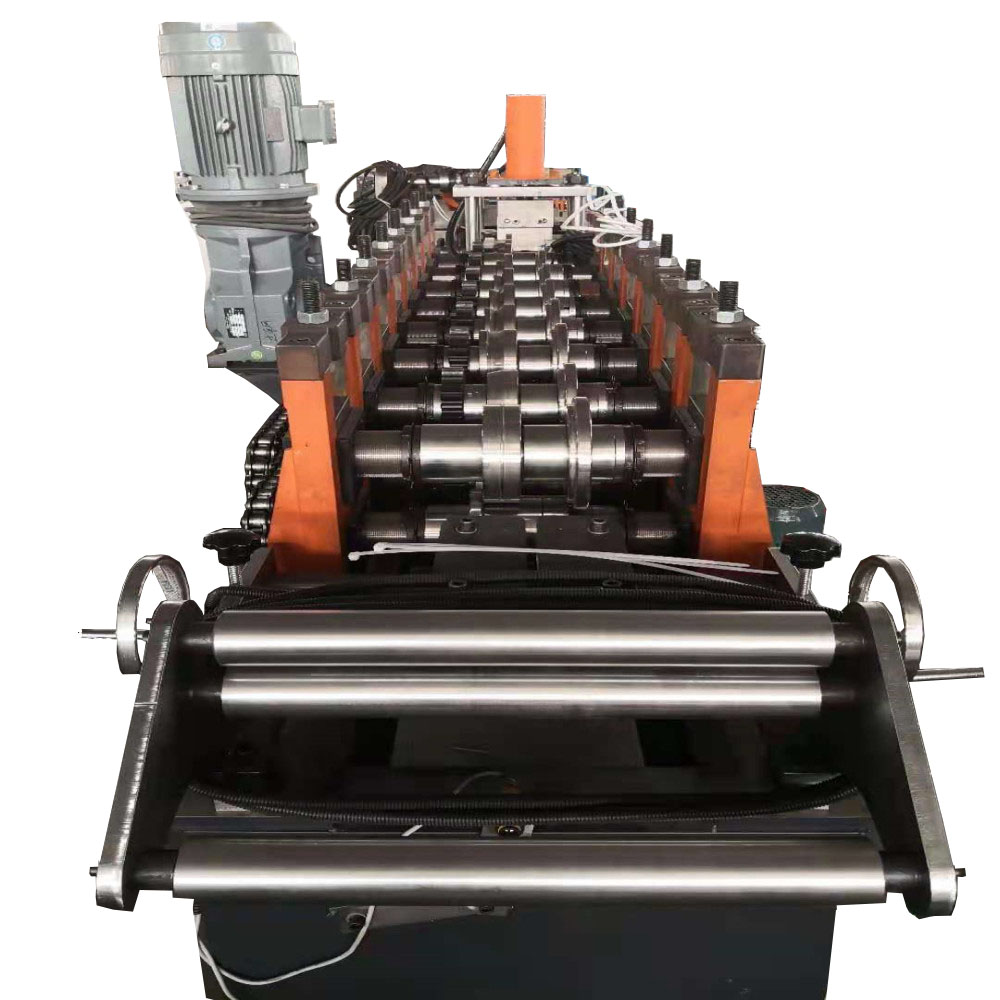

ROLLERS
The rollers processing by twice CNC machining and quenched, HRC 58-62;
Punching the holes and angle edge;
Mold material is Cr12 Mov;

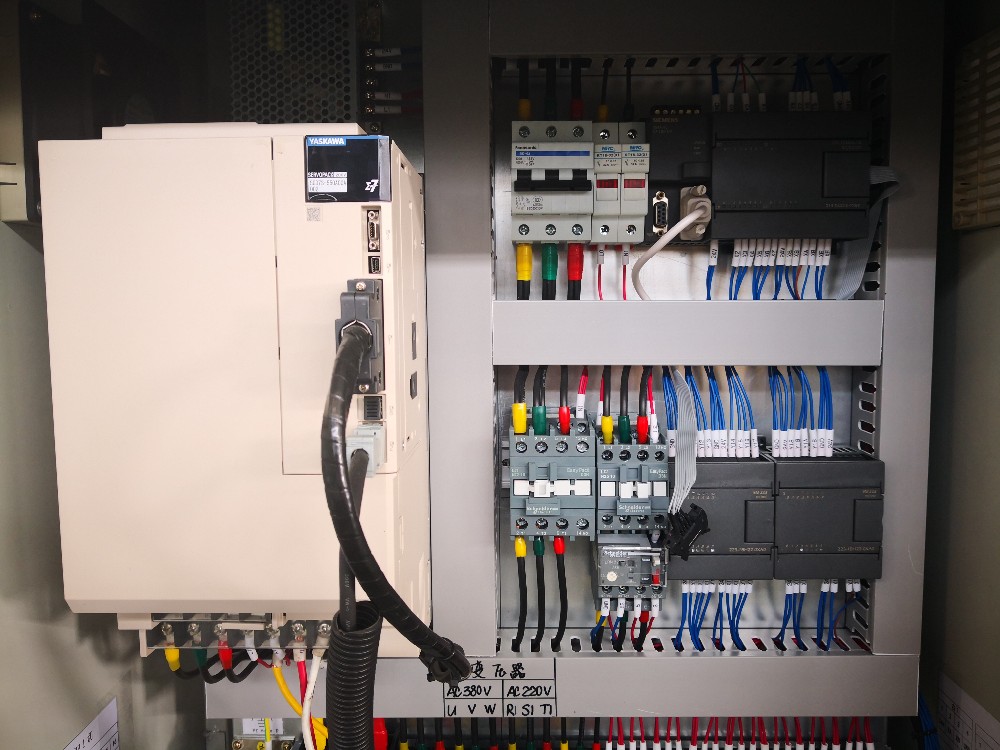

1. PLC controller -- Siemens
2. Transducer -- Yaskawa
3. Encoder -- KOYO
4. Other electronic component- Schneider
