Total power required | 53.4kw |
| Working Station | 16 sets |
| Max.shaft diameter | 76mm |
| Motor power | 18.5KW |
Dimensions (L*W*H) | 7.5m*1.6m*1.5m |
Overall packing s hipment | Total 1X40gp container |
Working hours per day | 8 to 16 hours |
Set up t ime | 20 mins |
Line d irection | Left to right while facing operator panel |
Machine frame | H-BEAM frame |
Variable line speed | 2-3m/min |
Material loading system | Manual |
MAJOR EQUIPMENTS we designed as below:
A - DECOILER.....................................................................Hydraulic DECOILER
B-LEVELING MACHINE.....................................................................TO MAKE THE MATERIAL FLAT TO NEXT PROCESS
C-PUNCHING UNIT.....................................................................SERVO FEEDING AND PRESS MACHINE PUNCHING
D- INFEEDER APPLICATOR.........................................TO GUIDE MATERIAL
E- ROLL FORMING UNIT............................TO ROLLING THE DRAWING PROFILE
F-CUTTING SYSTEM...................................FLYING SAW CUT TO LENGTH
G- OUTPUT TABLE...... ......................SUPPORT THE FINISHED PRODUCTS

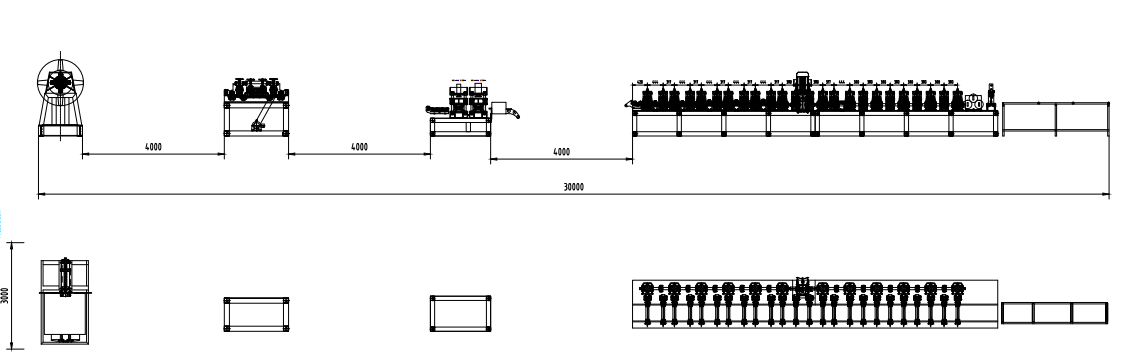

MACHINE WORKING FLOW
