New Technology Rack shelving Roll Forming Machine Use for Supermarket

Views: 421     Author: Site Editor     Publish Time: 2023-06-09      Origin: Site

Shelving Roll Forming Machine Use for Supermarket

This kind of roll forming machine is used for the production of shelf which applied on supermarket or warehouse.This machine can produce 300/400/500mm width of shelf.PCL control to automatic adjust the width.The forming machine is equipped with a riveting unit, which can automatically riveted after forming to increase the load force of the shelf.The speed of the whole production line is 2-3 pieces per minute.Efficient and automatic production with only one person to operate.

Below are the basic parameters of this equipment, if you are also interested, please feel free to contact us.


Item

Parameter

Material

Thickness

0.5-0.8mm


Diameter of shaft

120 mm

Hydraulic power

5.5KW

Capacity

8 tons hydraulic auto de-coiler

Material of shaft

GCr 45 steel

Punching and Notch Device
Quantity 1pc
Notch and punch material Cr12,quenched 58-62
System Hydraulic punching and notch
Motor power 7.5KW






Forming stand

Station

30 stations

Shaft Material

45# steel 76mm diameter;

Frame body

H-BEAM frame 450 mm

Roller materail

GCr15 , hard chromed , HRC 58-62

Main motor

22kw(2*11KW)

Voltage

380v,50hz,3ph

Transport

Chains drive

Size approx

29m*1.8m*1.6m

Overall packing shipment

1* 40ft+1*20ft

Working hours

per day 8 to 16 hours

Set up time

30 min

Line direction

Left to right while facing operator panel

Cages

Use the strong steel nets sliding on the full machine length

Hydraulic Cutting system

Material

Blade and mold material: Cr12mov steel with quenched

treated 60-62℃

Cutting power

7.5kw


Output table

Specification(W*H)

3000mm*1500mm


Construction

Welded steel frame with chromed rollers










Others

Screen

5.7 inch Siemens Touch Screen

PLC and frequency

conversion

Siemens PLC,Yasakaw Frequency Changer

Other electronic components

Schneider

Encoder

Omron



Use

1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.

3)Error is easy to adjusted.

Language

English and Chinese

Product

Length

Based on requirements

Accuracy level

Profile dimension +/- 0.5 mm

Cut length: +/-1.5mm

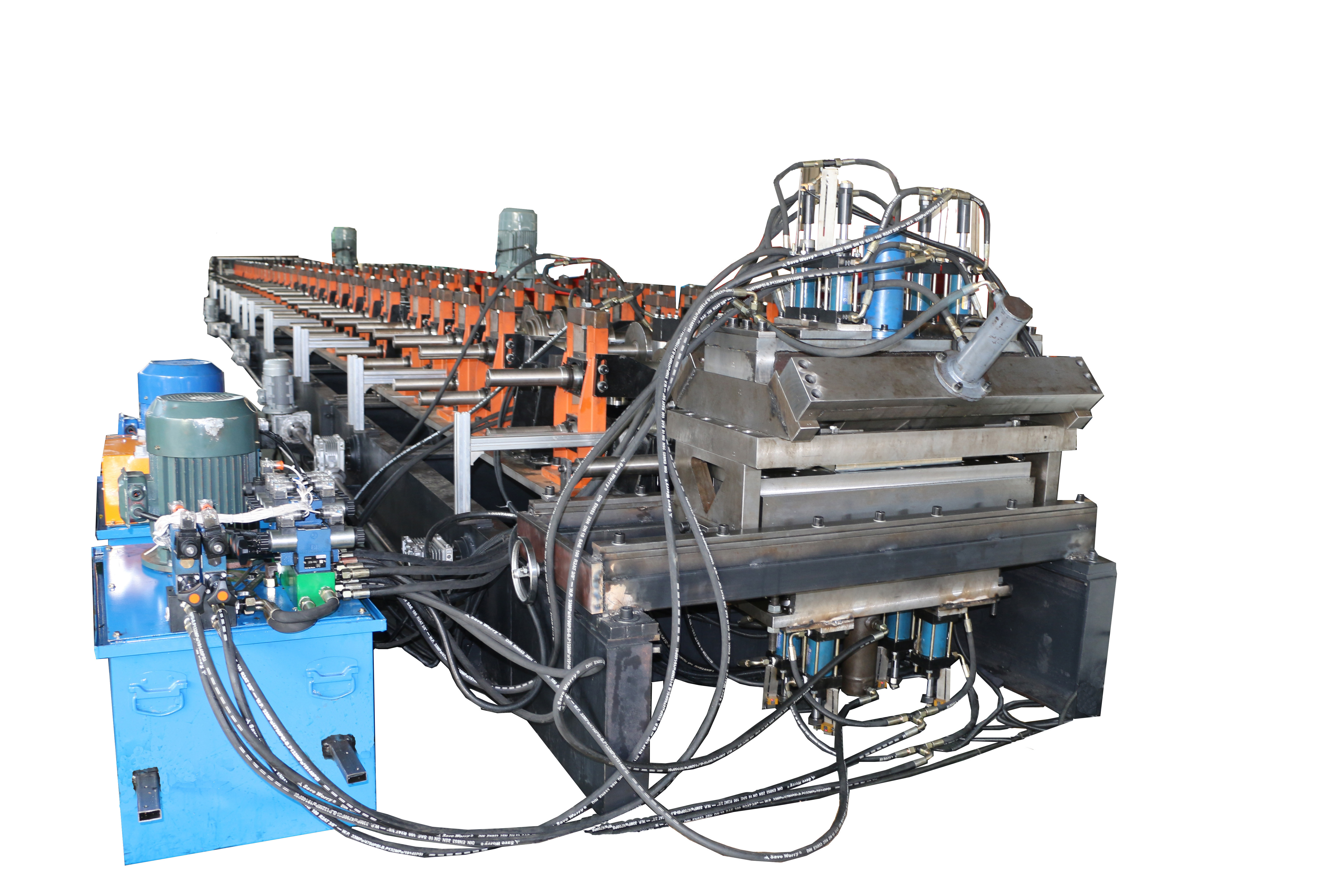

1dde454e1a2f34a925f7cb520890b7d

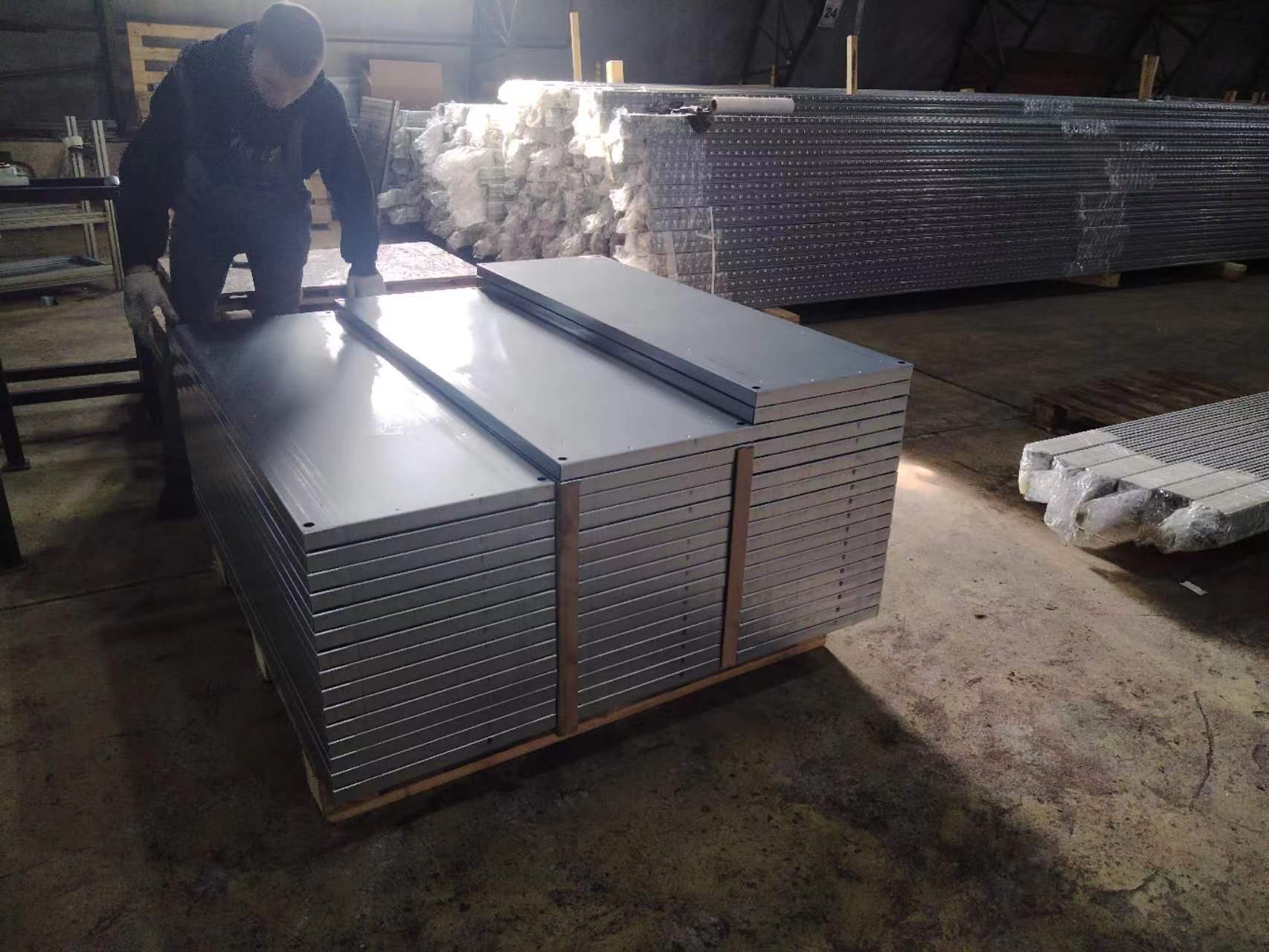

微信图片_20230331143946

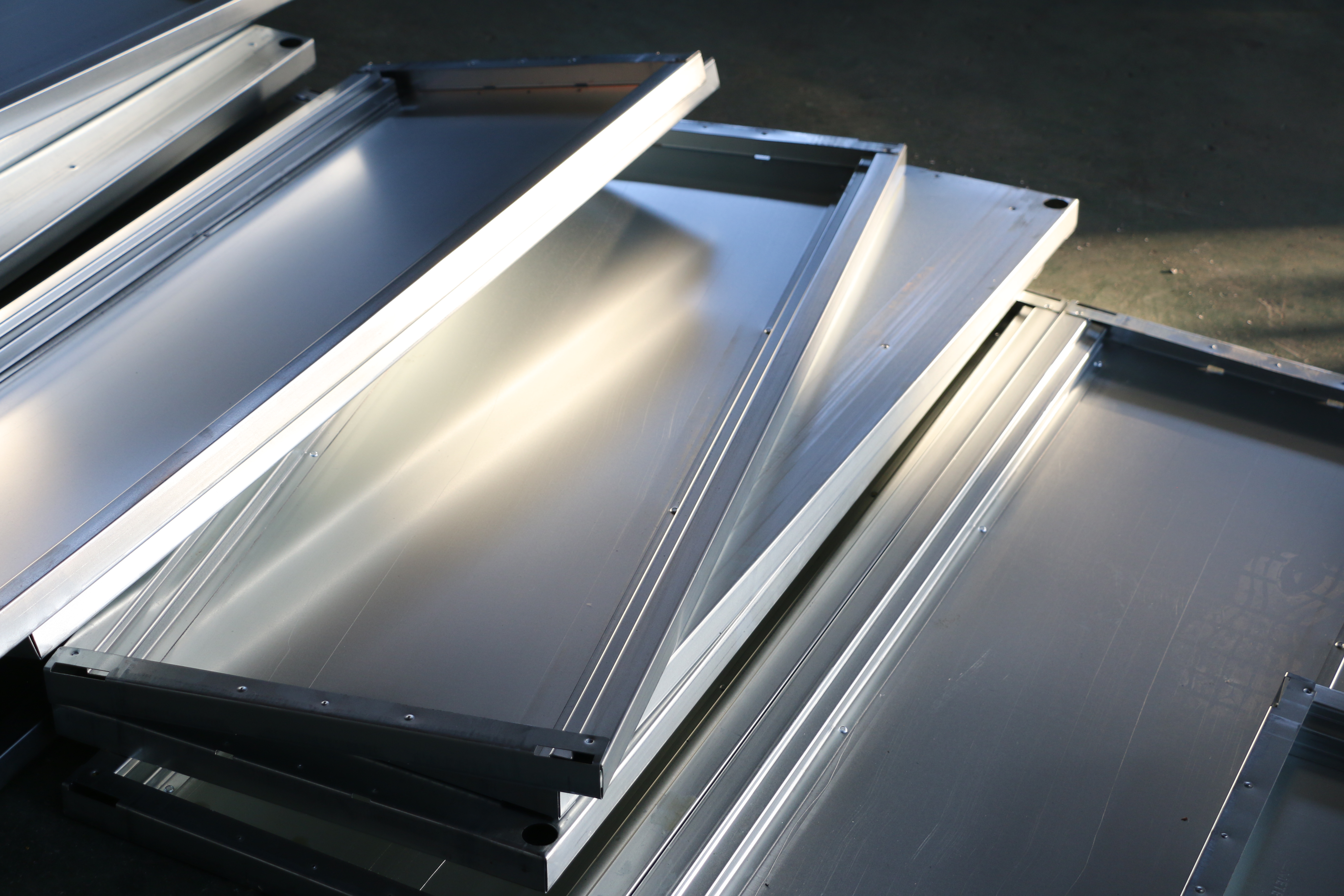

IMG_2275
