Storage Rack Upright Roll Forming Machine

  • YD-HP-04


  • 8455229090


Storage Rack Upright Roll Forming Machine

2 外购牌坊 型钢


The sturcture we use for this machine has the higher duty mechanical behavior;

Storage rack roll forming machine with higher percision column stand structure;



 To make the material level enough to the press machine;

 Active type leveling;

冲孔 冲床小


 To punching holes according to the profile drawing;

 Press machine capacity: 630 KN (63 tons);

成型 货架


The rollers processing by twice CNC machining and quenched, HRC 58-62;

Upright roll forming machine design as width changeable for multi-size of product;


Easy operatiion for customer to adjust the product output, to make sure it is straighten;

Rack roll forming machine avoid from bend, curve and twist;

Cutting blade material is Cr12 Mov



1. PLC controller  -- Siemens

2. Transducer -- Yaskawa

3. Encoder -- KOYO

4. Other electronic component- Schneider.

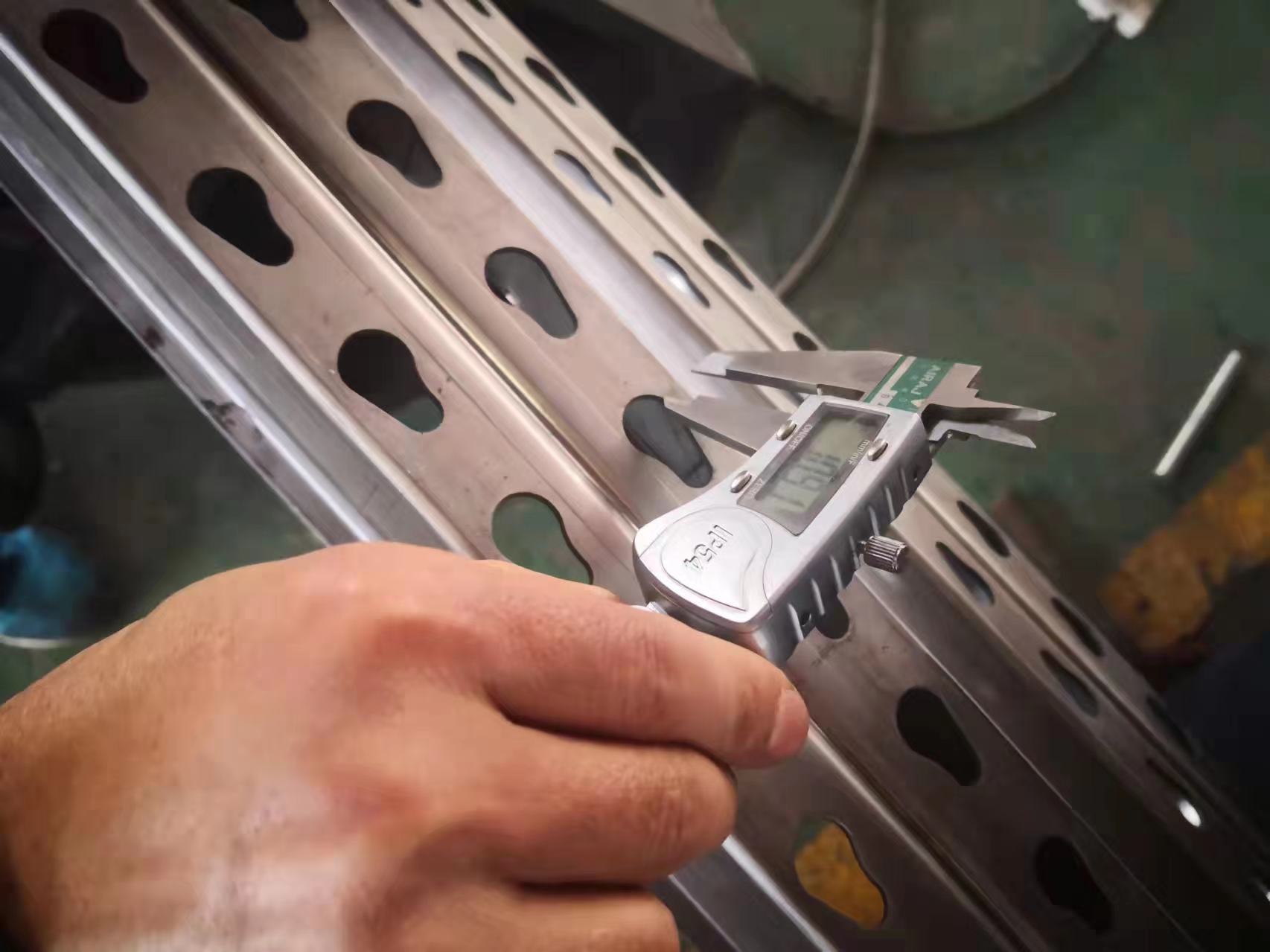

Finished Product Thickness 1.5-2.5mm
Material Galvanized/Carbon   Steel Coil
Effective width 50mm
Machine Main Specification
Coiler Dimensions for   decoiler 500*800*1000mm
Capacity 5 tons
Mandrel expansion by Hydraulic

Punching unit Dimensions for   punching 1500*800*1000mm
Power servo motor 1.8KW
Punching Material Cr12.Mov.HRC58-62
Press machine 110T
Roll forming part Dimensions for   rollformer 12000*1800*1500mm
Structure Column
Working Station 22working stations
Roller Material GCr15,Double   machining
Shaft Diameter 80mm
Driving System Gearbox driving
Main power 18.5KW*2
Cutter Material mould blade
Power of hydraulic station 4.0KW
Cutting   System Hydraulic and Flying

More than 10 year working life

Our machine can steady running at least 10 years.

Based on this situation, you could have stable productivity and avoid from fixing.

More individal service

If you have requrest of your using problem, like running space, operation program language. We can do better.

Better after-sale service

Life long response within 12 hours , while you have question of running machine.

PE film covered of machine surface;

Fix by angle steel and steel rope, to make sure no any displacement happen during the reasonable shippment


1. Are you manufacturer or trading company?

We are manufacturer for 15 years

2. What is the delivery time?

For standard machine, delivery time is usually 60-70 working days.

3. What is your payment term?

30% TT deposit paid in advance, 70% balance paid before shipping.

4. How can I evaluate your company.

1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.

2-We have CE certificate, and our factory has been inspected by TÜV , SGS,  and Bureau Veritas. Please contact us to get the certificate document if you need.

5. How can I get to your factory.

We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
