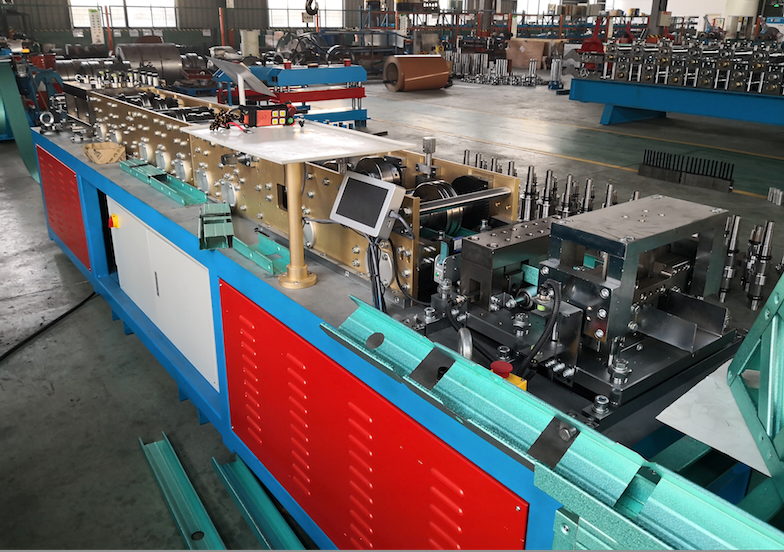

LIGHT STEEL VILLA FRAME ROLLFORMER

Views: 302     Author: Site Editor     Publish Time: 2023-06-30      Origin: Site

Mainly technical details

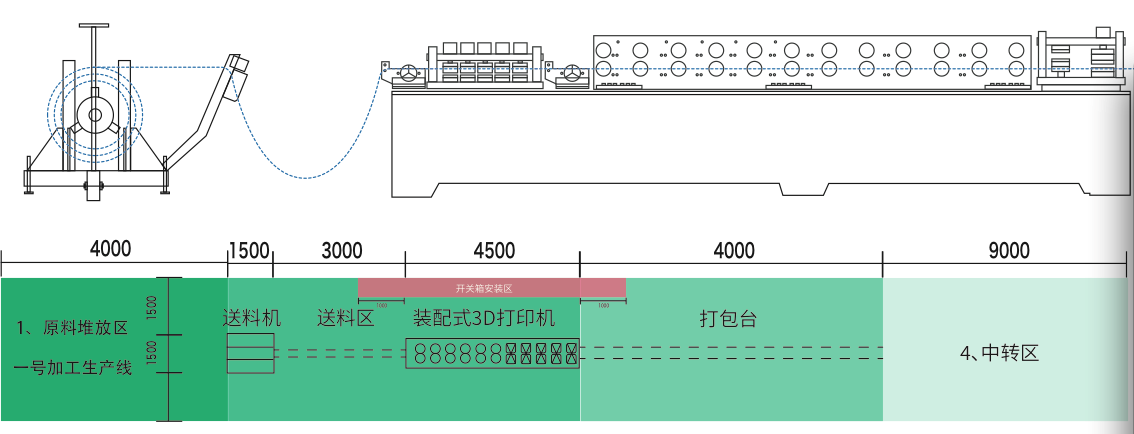

Layouts:

轻钢龙骨

DECOILER








NO.

ITEMS

TECHNICALS



1

Decoiler type


Moveable   with jack unit



2

Decoiler size


1600x700x1050mm


3

Machine color


Blue   with red


4

Main motor


550w


5

Diameter


450-530mm


6

Capacity


1800kgs

PUNCHING UNIT








NO.

ITEMS

TECHNICALS



1

Punching type


Pre-punch



2

Punch material


SKD11


3

Machining type


CNC   Maching centre


4

Hydraulic power


7.5kw

HYDRAULIC SYSTEM

Function: servo drive is used in the main molding power. Due to the advantages of short stopping distance and high length control accuracy, the length of the outboard is precisely controlled








NO.

ITEMS

TECHNICALS



1

Hydraulic power


7.5kw



2

Hydraulic pump


CRRFE


3

4.

Tank

Servo   power


160L

5.5KW

HYDRAULIC CUT








NO.

ITEMS

TECHNICALS



1

Cutting type


Hydraulic



2

Cutting material


Cr12mov


3

Cutting power


7.5kw

微信图片_20230630092827
