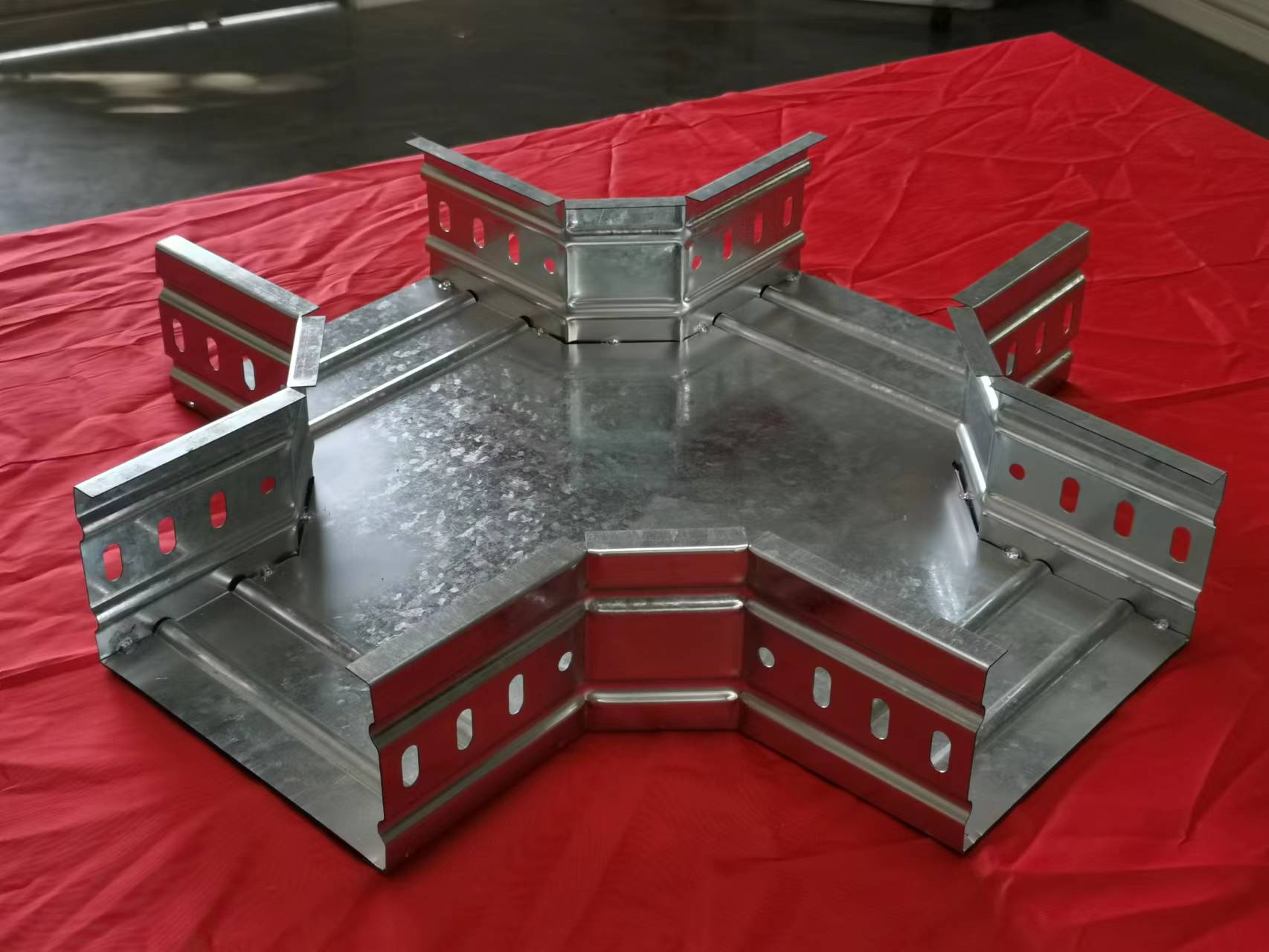

Cable tray connectors making machine

Views: 301     Author: Site Editor     Publish Time: 2023-06-27      Origin: Site

Cable tray making machine other construction material machine

Equipment components: Manual uncoiler, Punching dies,Roll forming machine, computer control system, hydraulic control system, cutting,  out table

Finished Product Thickness 0.8-2.0mm
Material Galvanized/Carbon   Steel Coil
Effective width 100mm、150mm,200mm,300mm
Machine Main Specification
Coiler Dimensions for   decoiler 500*800*800mm
Capacity 3 tons
Mandrel expansion by manual

Punching unit Punching Material Cr12.Mov.HRC58-62

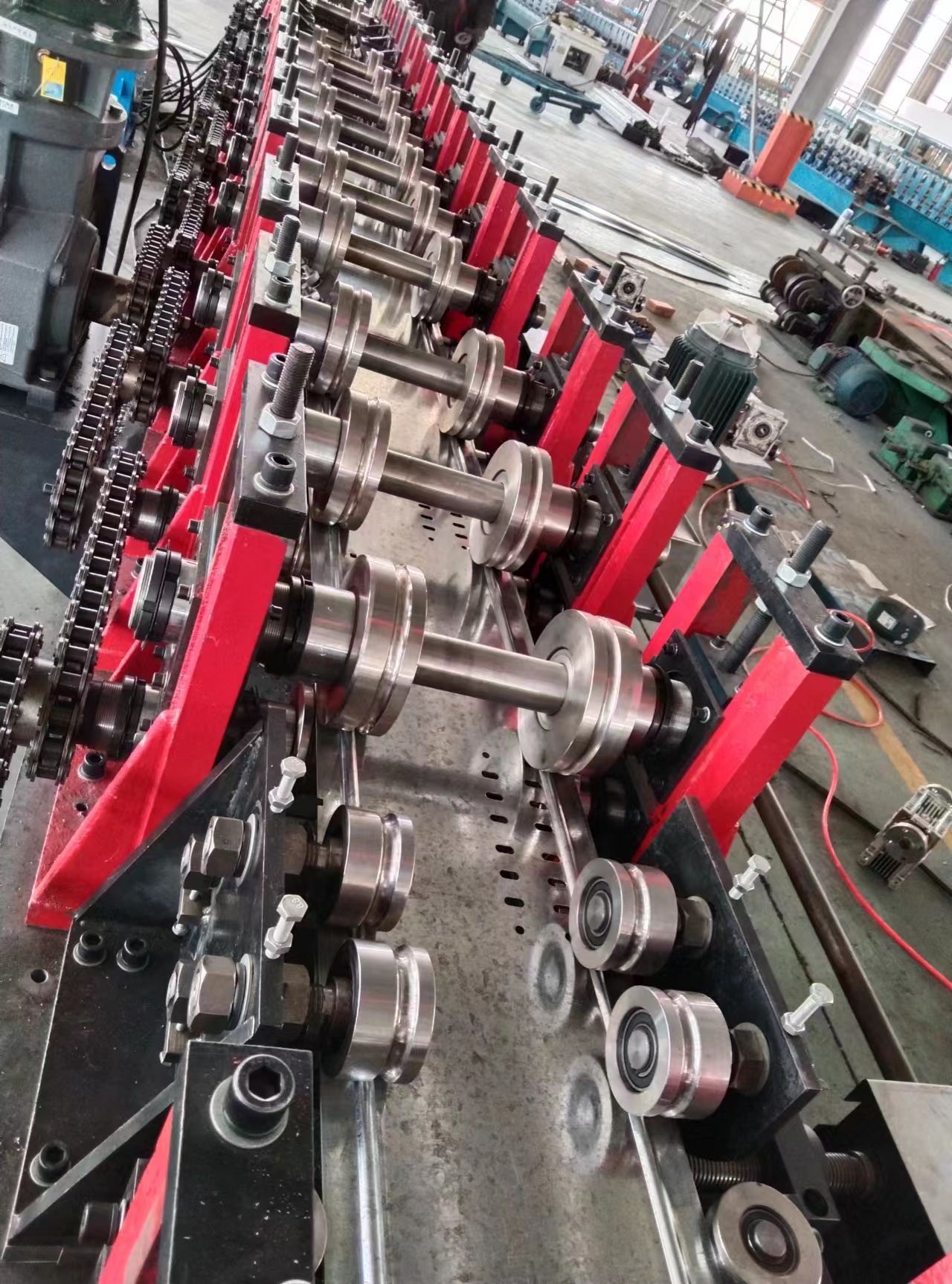

Roll forming part Dimensions for   rollformer 15000*1800*1500mm
Structure Column
Working Station 18working stations
Roller Material GCr15,Double   machining
Shaft Diameter 76mm
Driving System Chain driving
Main power 15KW
Cutter Material mould blade
Power of hydraulic station 5.5KW
Cutting   System Hydraulic
