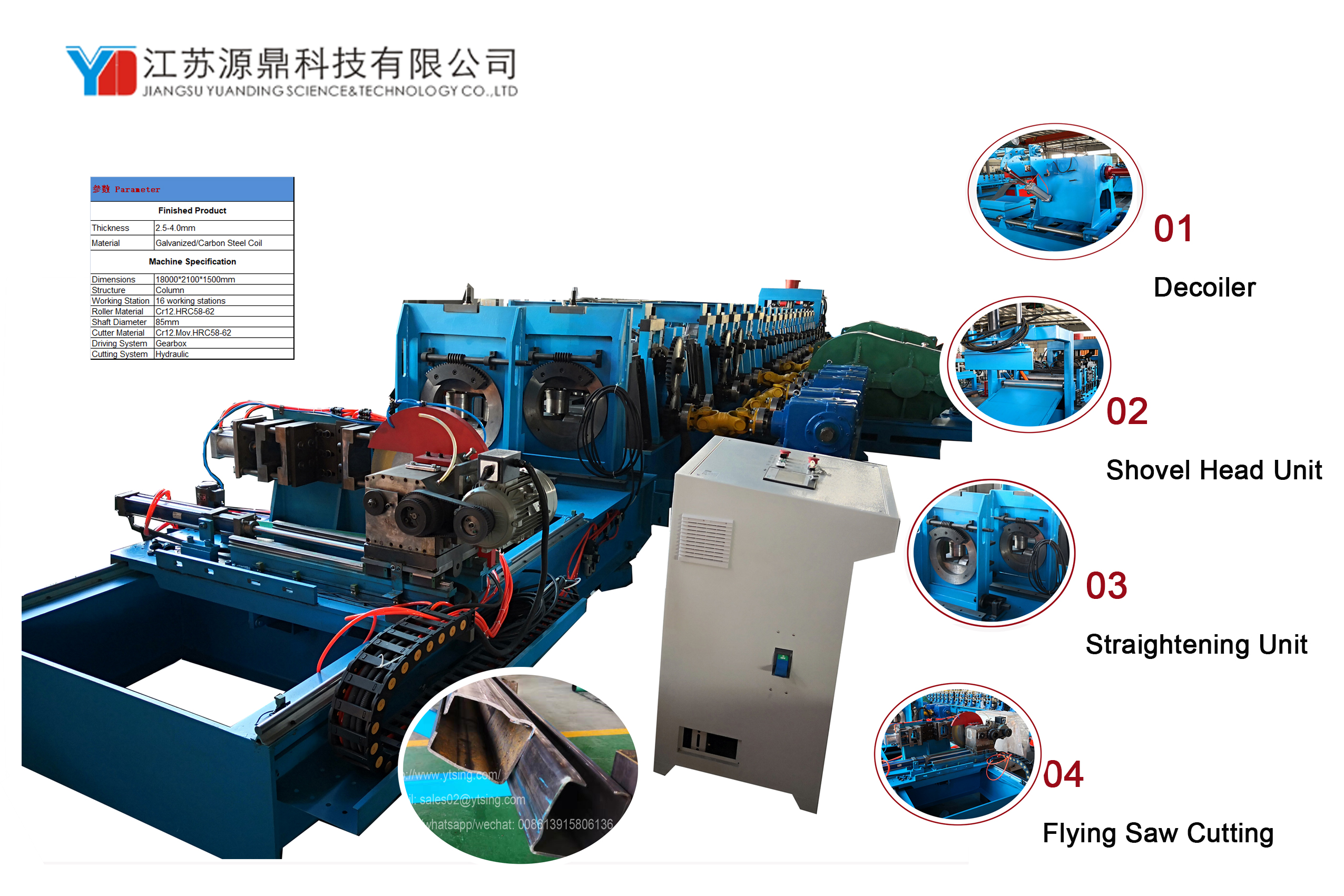

Guide rail making machine heavy roll forming machine

Views: 304     Author: Site Editor     Publish Time: 2023-06-21      Origin: Site

Parameter
Finished Product Thickness 2.5-4.0mm
Material Galvanized/Carbon   Steel Coil
Effective width 50mm
Machine Main Specification
Coiler Dimensions for   decoiler 500*800*1000mm
Capacity 5 tons
Mandrel expansion by Hydraulic


Roll forming part Dimensions for   rollformer 18000*2100*1500mm
Structure Column
Working Station 16working stations
Roller Material GCr15,Double   machining
Shaft Diameter 90mm
Driving System Gearbox driving
Main power 35KW*2
Cutter Material Saw blade
Power of hydraulic station 5.0KW
Cutting   System Hydraulic and Flying
