Saudi Arabia Market Roof Sheet Roll Forming Machine / Shutter Door Roll Forming Machine IBR Roofing Sheet Making Machine Making Tile

Views: 305 Author: Site Editor Publish Time: 2023-06-19 Origin: Site

Aluminum roofing tile sheet panel roll forming making machine

The hydraulic system parts are all adopts the famous production .
lt can be widely used in village, hotel, exhibition,vocation vallage,family construction and outdoor decorate.
This type of roof sheet has advantage including beautiful,classical appearance and grace taste.
lt uses galvanized steel or aluminum as the material plate.The production speed can be adjustable by PLC.

Name of commodity	roll forming machine / tile making machine
Main motor power	5.5kw
Hydraulic motor	3kw
power Hydraulic	10-12MPa
Pressure Voltage	380V /3phase/ 50 HZ (or as your requirement)
Control System	PLC Delta Inverter
Main Frame	300mm H-Beam
Backboard Thickness	14mm

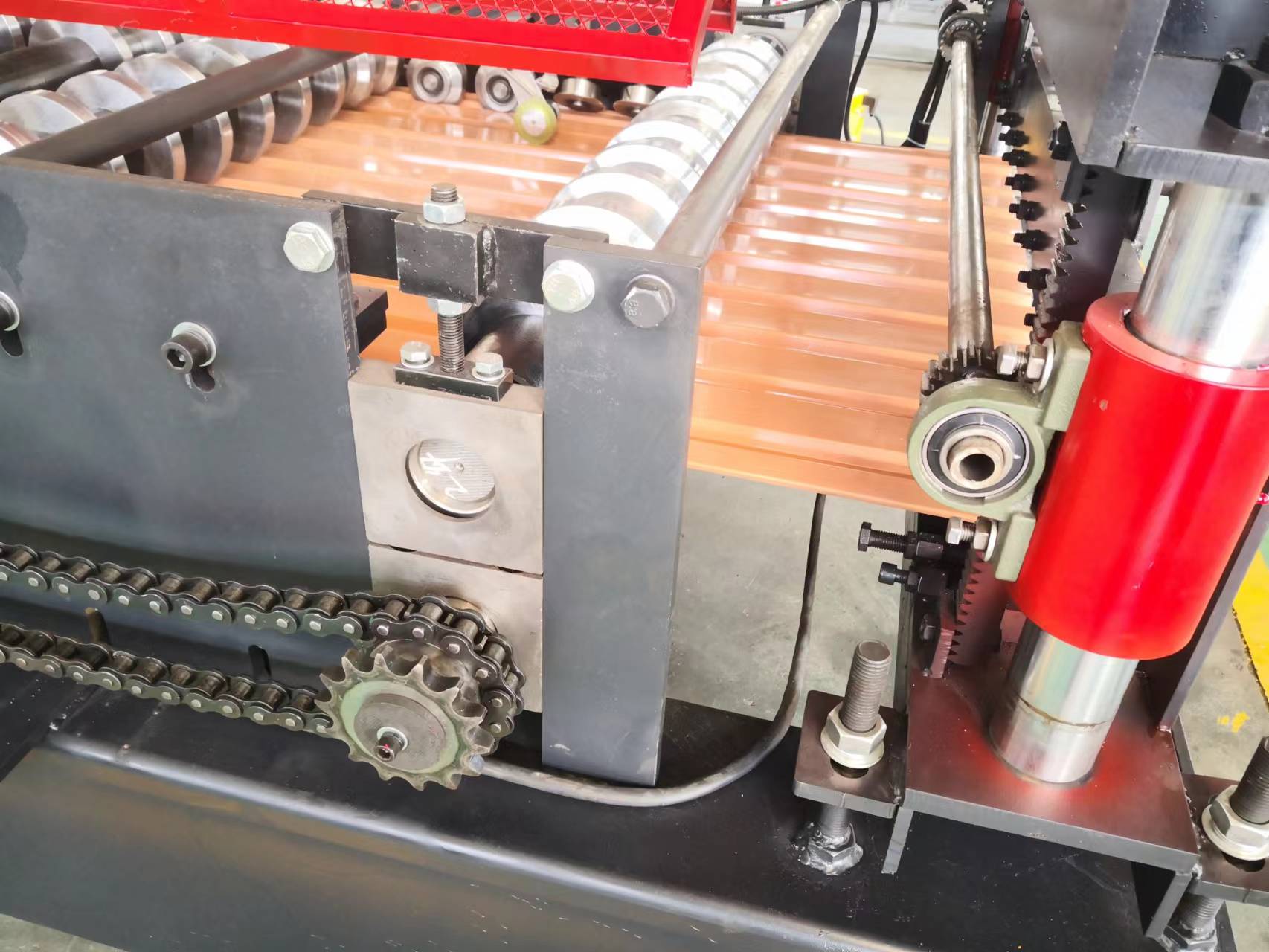

Chain Size	20mm

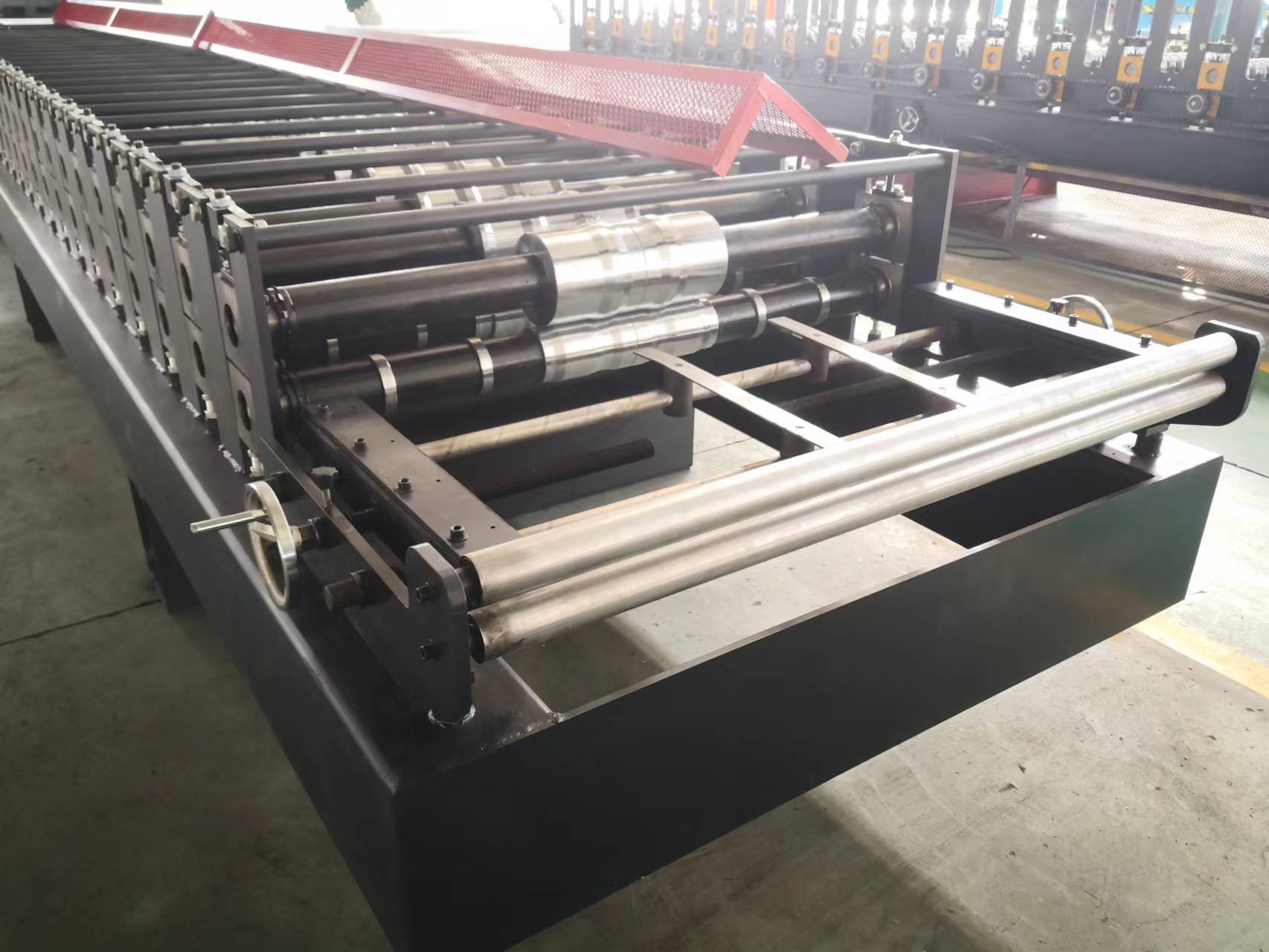

Feeding Material	color steel coils
Feeding Thickness	0.3-1.2mm
Productivity	8-12m/min

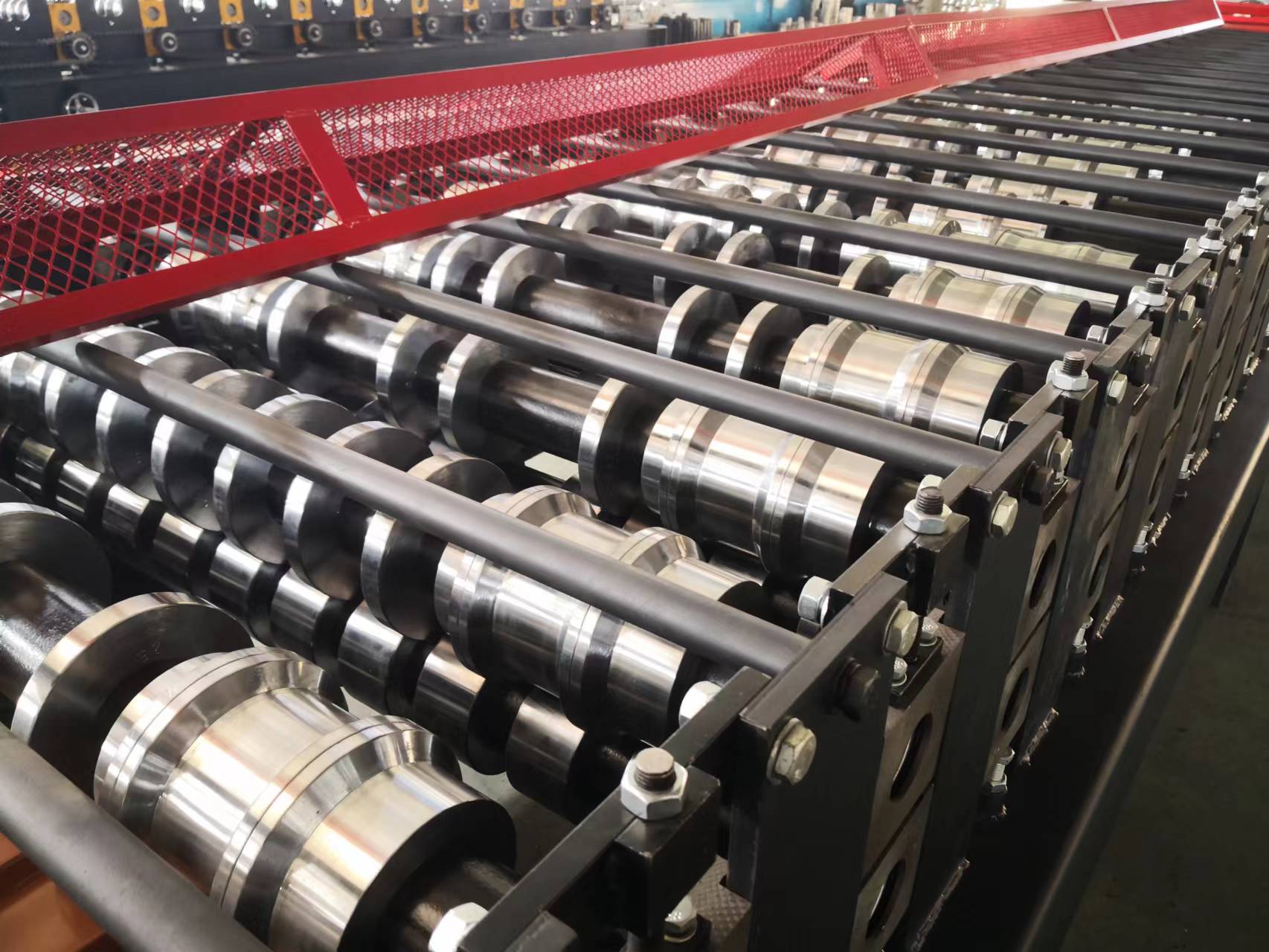

Roll Station	13
Roller Diameter	76mm
Roller material	45# steel

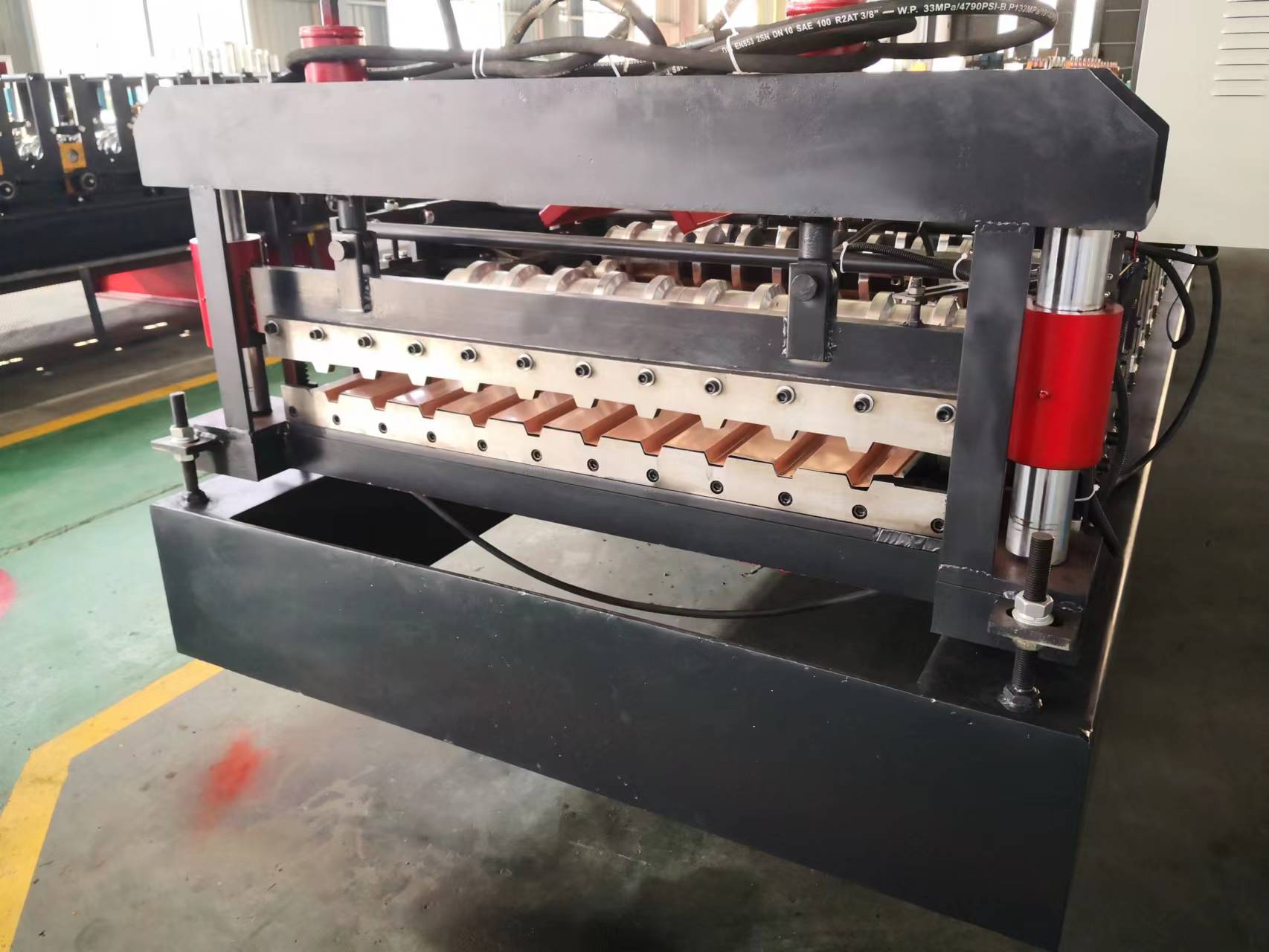

Cutter material	Cr12 , quenched
Components	Manual Uncoiler-------------------1 set Leveling unit------------------1 set Main machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table
Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
