ARP Finto Coppo Roof Tile Roll Forming Machine Full Automatically PLC Touch Screen Control

Material

Thickness

0.5-0.8mm

Hydraulic powered uncoiler with coil cart

Direction

The left-sided uncoiler (loading the coil on the left side)

Max. width of coil can be loaded

1250 mm

Inner diameter of the coil

470-530 mm

Motor power

5.5kw

Feeding applicator

Feeding panel to the guide roller

Adjustable by right and left

Feeding roller

Diameter is 76 mm

Material

40CR steel, HRC48-52

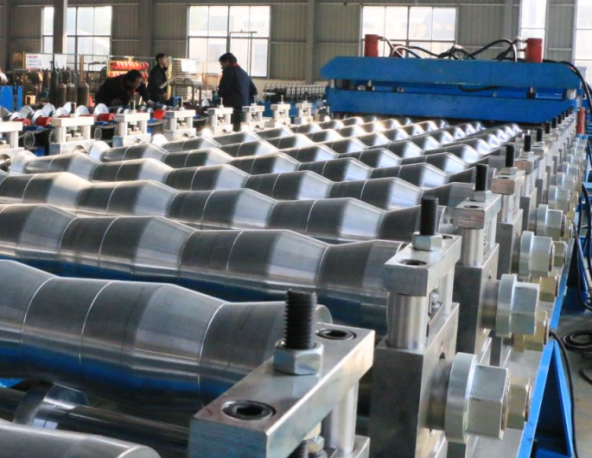

Forming stand

Station

18stations

Shaft Material

45# steel 76mm diameter;

Frame body

H-BEAM frame 450 mm

Roller materail

45# steel with chrome

Main motor

11.0kw

Forming speed

15-20m/min(excluding pressing and cutting)

Voltage

380v,50hz,3ph(based on customer’s requirements)

Transport

Chains drive

Size approx

18.0m*1.4m*1.5m

Weight

Around 12T

Overall packing shipment

t 2* 40ft

Working hours

per day 8 to 16 hours

Set up time

30 min

Line direction

Left to right while facing operator panel

Cages

  Use the strong steel nets sliding on the full machine length

Hydraulic Pressing

Material

Mold material: Cr12mov steel with quenched

treated 60-62℃;Punching Power: 5.5kw

Shearing system

Material

Blade and mold material: Cr12mov steel with quenched

treated 60-62℃

Cutting power

5.5kw

Electric and Control System

Screen

5.7inch Siemens Touch Screen

PLC and frequency

conversion

Siemens PLC,Yasakaw Frequency Changer

Other electronic components

Schneider

Encoder

Omron

Use

1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.

3)Error is easy to adjusted.

Language

English and Chinese

Autostacker

Specification (L*W)

6000х1500mm

Stacking length

According to your demands

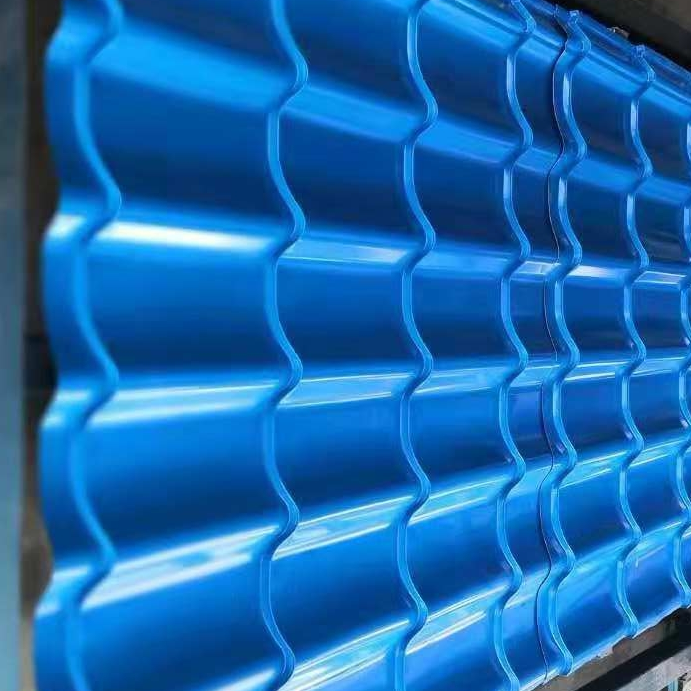

Product

Length

Based on requirements

Accuracy level

Profile dimension +/- 0.5 mm Cut length: +/-1.5-2.0 mm
