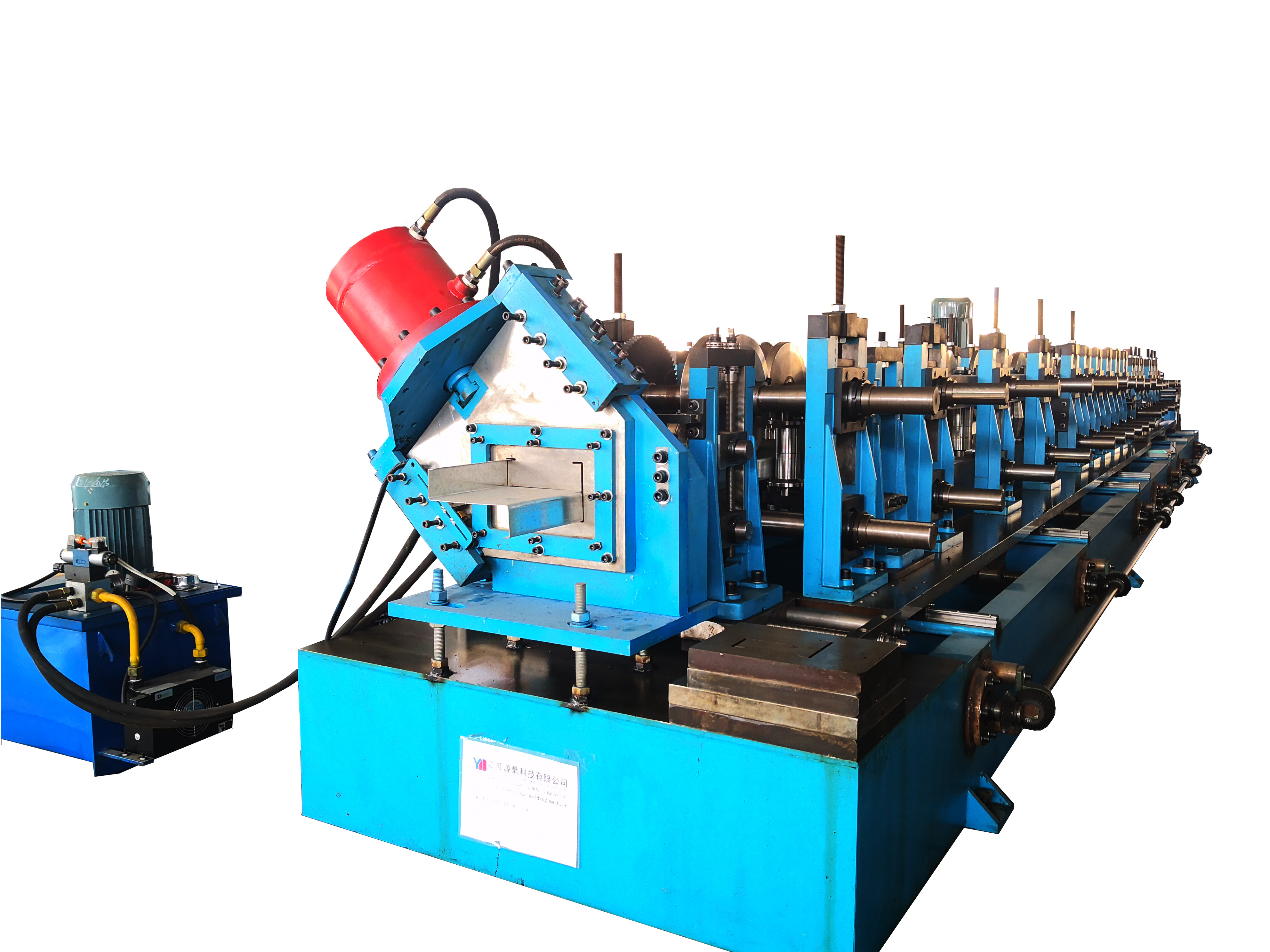

YD-CZ-001
YTSING
Availability: | |
---|---|

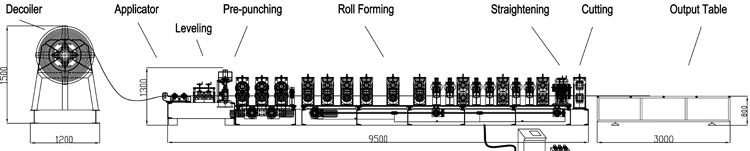

Item | Parameter | |
Material | Thickness | 1.0-4.0mm |
Un-powered Decoiler | Coil weight | 4tons |
Diameter shaft | 85mm | |
Material of shaft | #45 steel | |
Leveling | Rollers Quantities | 7 rollers(3 rollers up and 4 rollers down) |
Diameter of shaft | 90mm | |
Pre-punching | Punch material | Cr12 MOV, quenched, HRC 58-62 |
Punch systerm | Hydraulic punch | |
Punch power | 7.5kw | |
Forming stands | Roller Station | 16 stations |
Shaft Material | 45# steel 80mm diameter | |
Frame body | 350H | |
Roller materail | GCR15,DOUBLE CNC machining, HRC58-62 | |
Main motor | 18.5X2.0 kw | |
Forming speed | 15-20m/min | |
Voltage | Based on customer’s requirements | |
Transportation | Gear box universal joint driving | |
Post Cutting | Material | Blade and mold material: Cr12mov steel with quenched treated 60-62℃ |
Motor power | 7.5kw | |
Cutter blades | Misaligned shear(each profile drawing match with each set of blade mould) | |
Others | Screen | 5.7inch Siemens Touch Screen |
PLC and frequency conversion | Siemens PLC,Yasakaw Frequency Changer | |
Other electronic components | Schneider | |
Use | 1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved. 3)Error is easy to adjusted. | |
Language | English and Chinese | |
Product | Length | Based on requirements |
Length tolerance | +-1mm |
Item | Parameter | |
Material | Thickness | 1.0-4.0mm |
Un-powered Decoiler | Coil weight | 4tons |
Diameter shaft | 85mm | |
Material of shaft | #45 steel | |
Leveling | Rollers Quantities | 7 rollers(3 rollers up and 4 rollers down) |
Diameter of shaft | 90mm | |
Pre-punching | Punch material | Cr12 MOV, quenched, HRC 58-62 |
Punch systerm | Hydraulic punch | |
Punch power | 7.5kw | |
Forming stands | Roller Station | 16 stations |
Shaft Material | 45# steel 80mm diameter | |
Frame body | 350H | |
Roller materail | GCR15,DOUBLE CNC machining, HRC58-62 | |
Main motor | 18.5X2.0 kw | |
Forming speed | 15-20m/min | |
Voltage | Based on customer’s requirements | |
Transportation | Gear box universal joint driving | |
Post Cutting | Material | Blade and mold material: Cr12mov steel with quenched treated 60-62℃ |
Motor power | 7.5kw | |
Cutter blades | Misaligned shear(each profile drawing match with each set of blade mould) | |
Others | Screen | 5.7inch Siemens Touch Screen |
PLC and frequency conversion | Siemens PLC,Yasakaw Frequency Changer | |
Other electronic components | Schneider | |
Use | 1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved. 3)Error is easy to adjusted. | |
Language | English and Chinese | |
Product | Length | Based on requirements |
Length tolerance | +-1mm |
