Item | Parameter | |
Material | Thickness | 0.5－1.5mm |
10tons decoiler | Material of shaft | GCr 45 steel |
Diameter of shaft | 130mm | |
Inner-diameter | 480-630mm | |
Speed | 0-19m/min | |
Main motor power | 7.5 kw | |
Hydraulic motor | 5.5 kw | |
Capacity | 10 tons de-coiler with coil cart | |
Max.Out diameter | 1300mm | |
Material of shaft | GCr 45 steel | |
Diameter of shaft | 130mm | |
Inner-diameter | 480-630mm | |
Speed | 0-19m/min | |

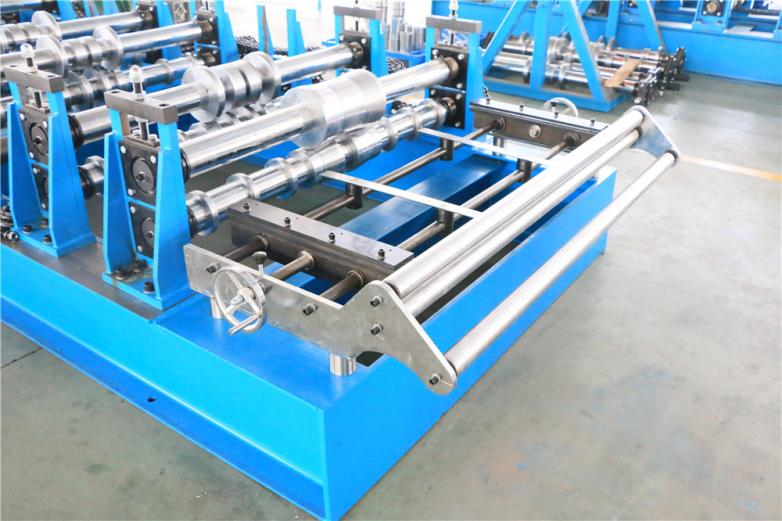

Forming stand | Station | 40stations |
Shaft Material | 45# steel 100mm diameter; | |
Frame body | H-BEAM frame 450 mm | |
Roller materail | GCr15 , hard chromed , HRC 58-62 | |
Main motor | 15kwX2=30kw | |
Forming speed | 10-15m/min(not include cutting) | |
Voltage | 380v,50hz,3ph | |
Transport | Chains drive | |
Size approx | 12.0m*1.4m*1.5m | |
Weight | Around 10T | |
Overall packing shipment | t 1* 40ft | |
Working hours | per day 8 to 16 hours | |
Set up time | 30 min | |
Line direction | Left to right while facing operator panel | |
Cages | Use the strong steel nets sliding on the full machine length | |
Hydraulic Cutting system | Material | Blade and mold material: Cr12mov steel with quenched treated 60-62℃ |
Cutting power | 5.5kw | |
Auto stacker | Specification(W*H) | 6000mm*1500mm |
Process | Transmitting rolls —output rolls moving—sheet entry—sheet landing—output | |
Others | Screen | 5.7inch Siemens Touch Screen |
PLC and frequency conversion | Siemens PLC,Yasakaw Frequency Changer | |
Other electronic components | Schneider | |
Encoder | Omron | |
Use | 1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved. 3)Error is easy to adjusted. | |
Language | English and Chinese | |
Product | Length | Based on requirements |
Accuracy level | Profile dimension +/- 0.5 mm Cut length: +/-1.5-2.0 mm | |
