 HIGH DUTY STRUCTURE The sturcture we use for this machine has the higher duty mechanical behavior; Auto adjustment system of product width; |
 PUNCHING HOLE To punch the wire box hole on one side; |

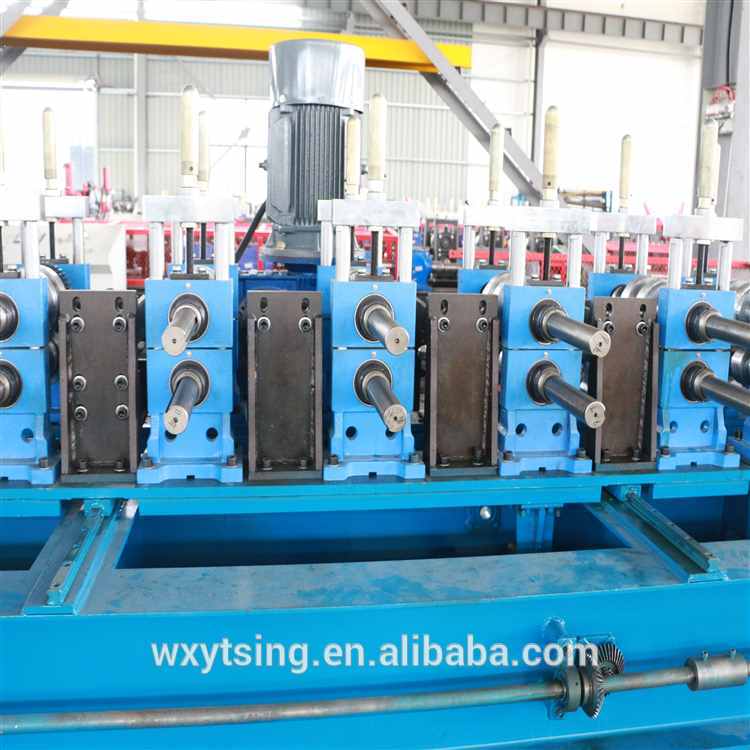

 ROLLERS The rollers processing by twice CNC machining and quenched, HRC 58-62; |
 MULTI SIZE CUTTING Cutting multi size; Mold material is Cr12 Mov; |
 BENDING UNIT To bend the output to the box; Hydraulic power |
 FAMOUS BRAND PLC
1. PLC controller -- Siemens 2. Transducer -- Yaskawa 3. Encoder -- KOYO 4. Other electronic component- Schneider |
 A part of wire box sample |

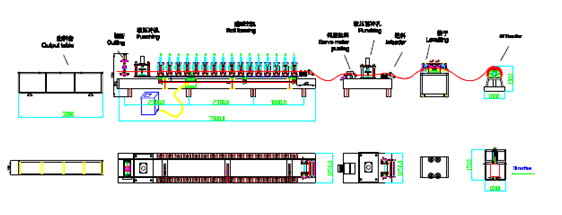

Scheme drawing of production line
| Parameter | ||
| Finished Product | Thickness | 0.6-1.2mm |
| Material | Galvanized/Carbon Steel Coil | |
| Effective width | 150-350mm | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 500*800*1000mm |
| Capacity | 5 tons | |
| Mandrel expansion by | Manual | |
| Punching unit | Dimensions for punching | 1500*800*1000mm |
| Power servo motor | 1.8KW | |
| Punching Material | Cr12.Mov.HRC58-62 | |
| Roll forming part | Dimensions for rollformer | 7700*1500*1500mm |
| Structure | Column | |
| Working Station | 18 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 76mm | |
| Driving System | Chain driving | |
| Main power | 7.5KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 3.0KW | |
| Cutting System | Hydraulic | |
