YD-SD-02
YTSING
Shutter door steel bottom plate making machine with chain driving
| Parameter | ||
| Finished Product | Thickness | 1.0-1.2mm |
| Material | STEEL | |
| Effective width | 150 | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 800*1500*1500mm |
| Capacity | 3tons | |
| Mandrel expansion by | manual | |

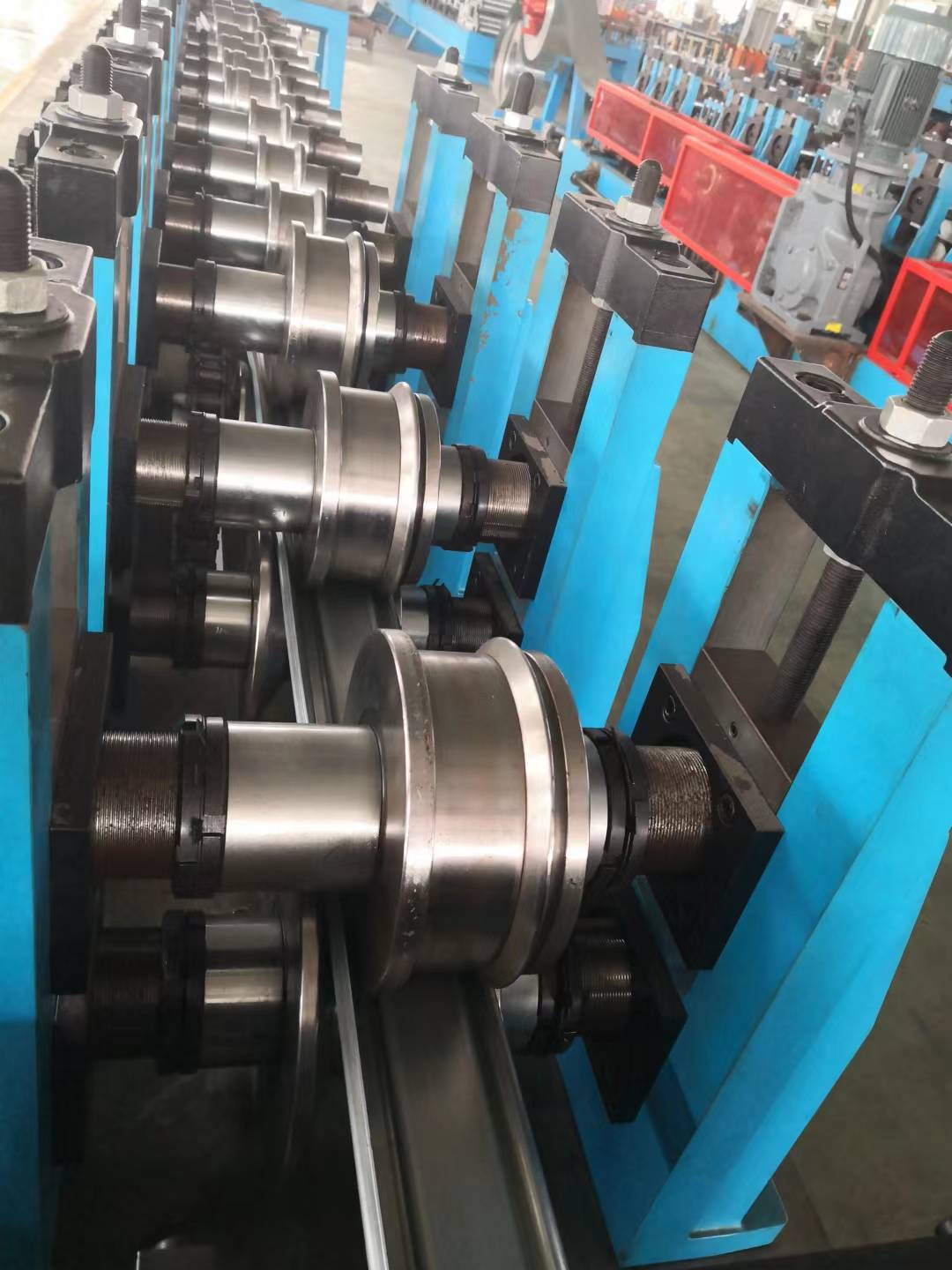

| Roll forming part | Dimensions for rollformer | 8000*1500*1500mm |
| Structure | Column | |
| Working Station | 18 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 76mm | |
| Driving System | Chain driving | |
| Main power | 11KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 4.0KW | |

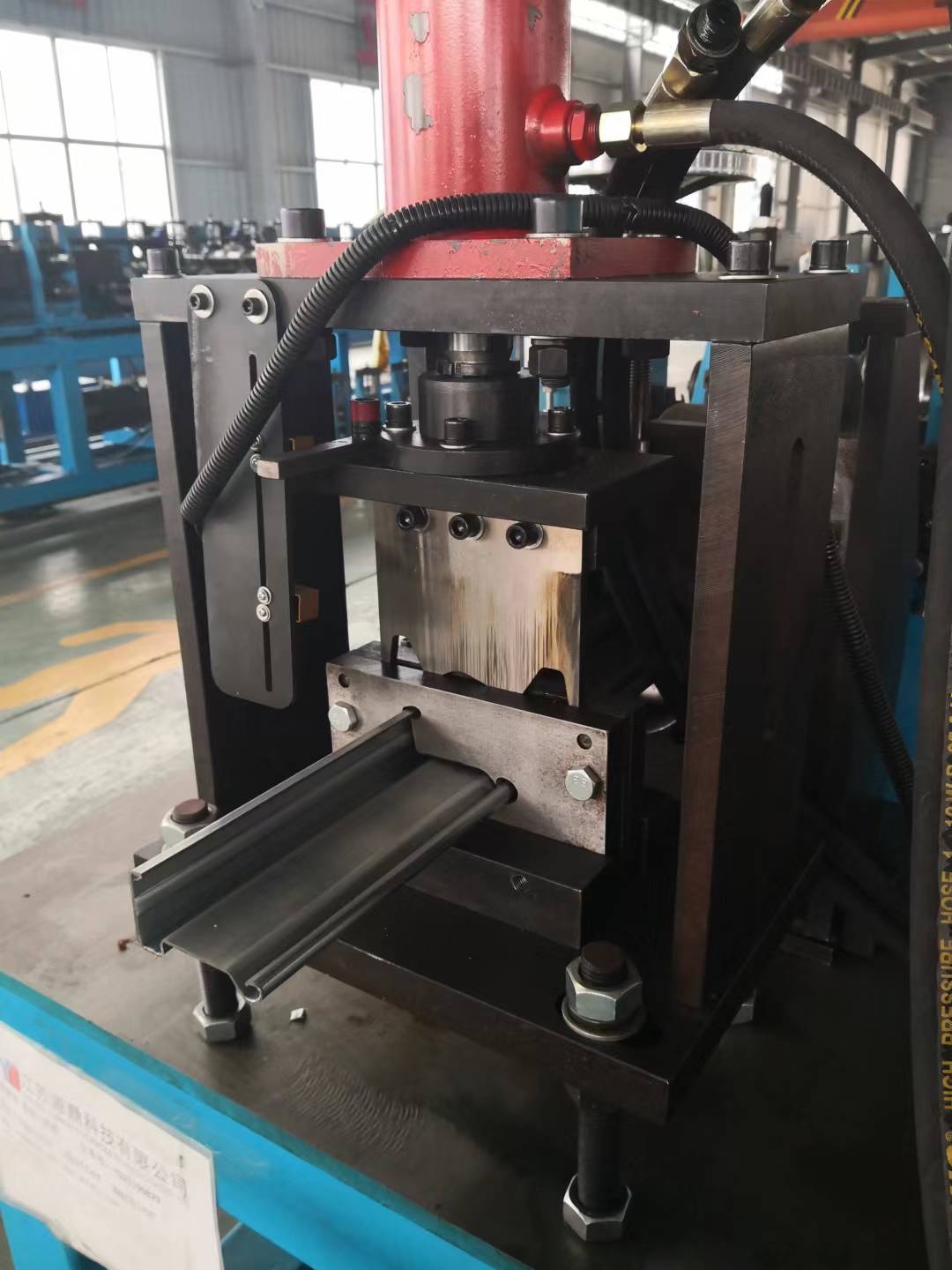

| Cutting System | Hydraulic | |
Shutter door steel bottom plate making machine with chain driving
| Parameter | ||
| Finished Product | Thickness | 1.0-1.2mm |
| Material | STEEL | |
| Effective width | 150 | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 800*1500*1500mm |
| Capacity | 3tons | |
| Mandrel expansion by | manual | |
| Roll forming part | Dimensions for rollformer | 8000*1500*1500mm |
| Structure | Column | |
| Working Station | 18 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 76mm | |
| Driving System | Chain driving | |
| Main power | 11KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 4.0KW | |
| Cutting System | Hydraulic | |
