YD-GT-02
YTSING

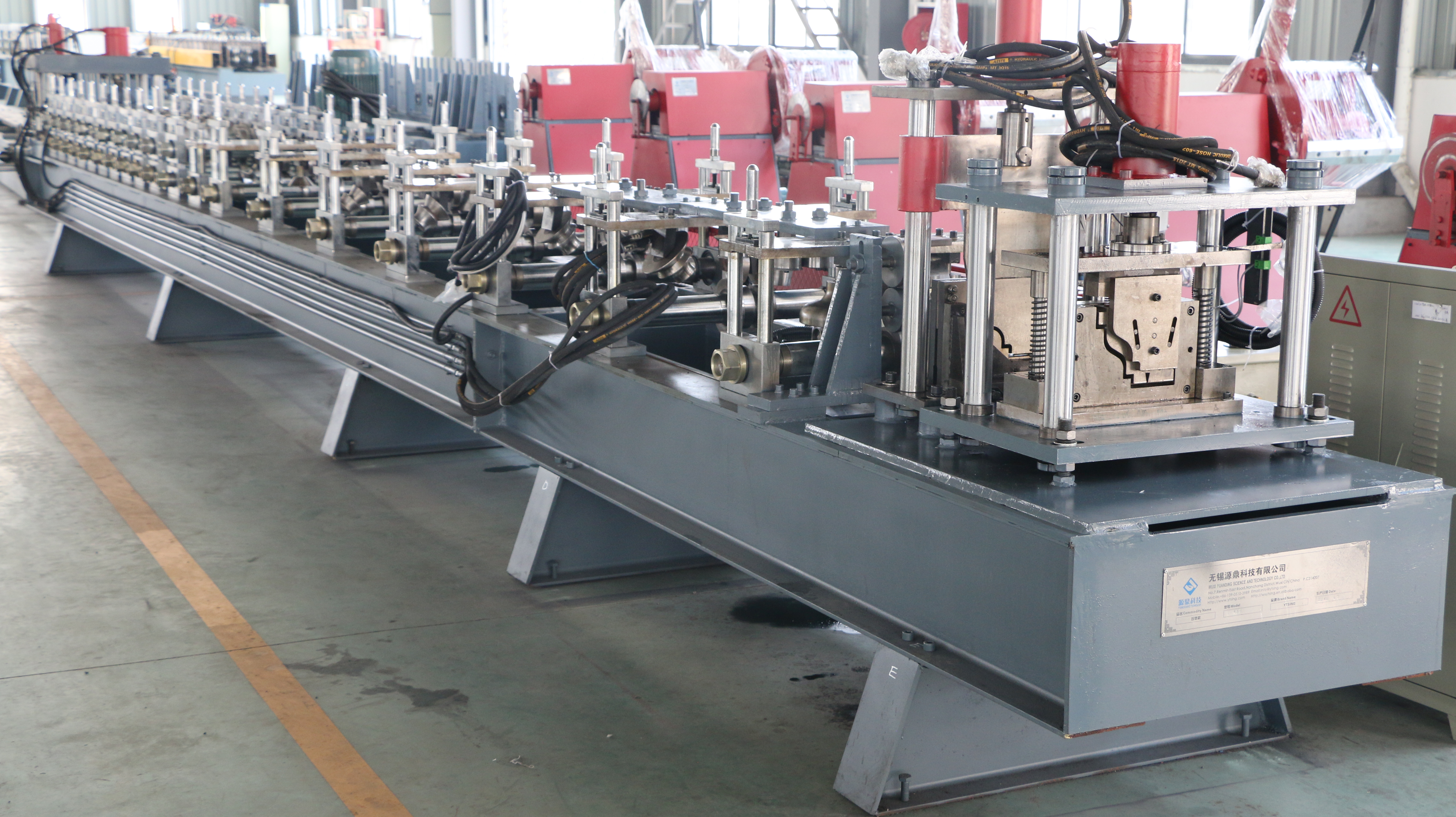

gutter making machine/roll forming machine
| Parameter | ||
| Finished Product | Thickness | 0.9-1.2mm |
| Material | GI | |
| Coil width | AS PROFILE | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 1200*1800*1500mm |
| Capacity | 3tons | |
| Mandrel expansion by | Hydraulic | |
| Roll forming part | Dimensions for rollformer | 8000*1500*1500mm |
| Structure | Column | |
| Working Station | 18 working stations | |
| Roller Material | Cr12.HRC58-62 | |
| Shaft Diameter | 75mm | |
| Driving System | CHAIN driving | |
| Main power | 11KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 5.5KW | |
| Cutting System | Hydraulic | |
