Rainwater Gutter Drain Channel Profile Roll Forming Machine

Rainwater Gutter Drain Channel Profile Roll Forming Machine
  • YD-GS-03

  • YTSING

  • 8455229090

Availability:

Rainwater Gutter Drain Channel Profile Roll Forming Machine

HIGH DUTY STRUCTURE

The sturcture we use for this machine has the higher duty mechanical behavior;With protective net;

Rainwater Gutter Drain Channel Profile Roll Forming Machine

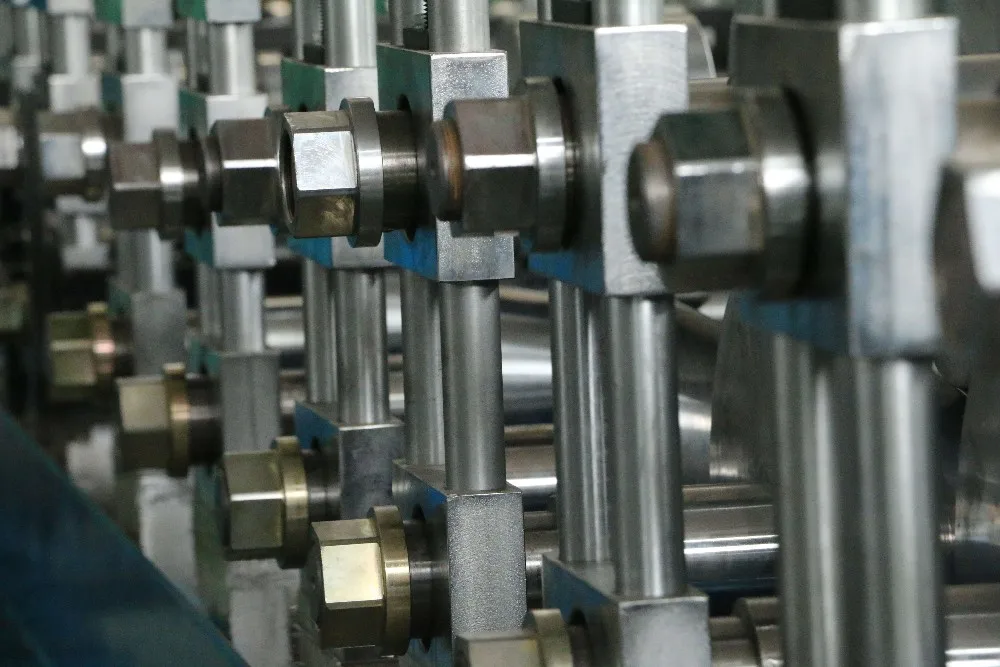

ROLLERS

The rollers processing by twice CNC machining and quenched, HRC 58-62;

Rainwater Gutter Drain Channel Profile Roll Forming Machine

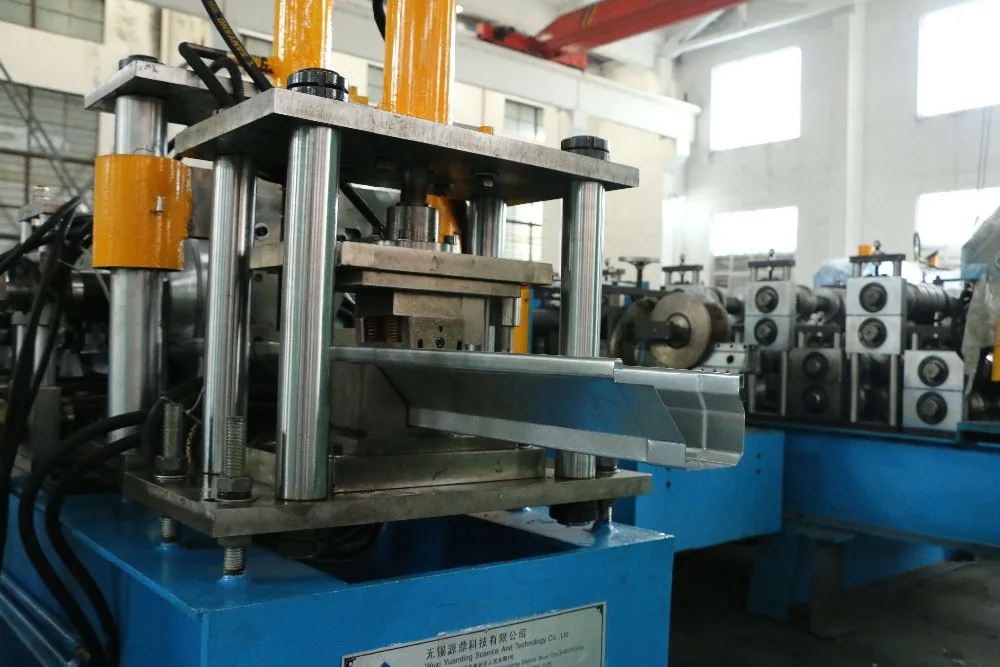

CUTTING AND NOTCHING  STATION

To cut length and notch;

Mold material is CR12 MOV;

Rainwater Gutter Drain Channel Profile Roll Forming Machine

FAMOUS BRAND PLC

1. PLC controller  -- Siemens

2. Transducer -- Yaskawa

3. Encoder -- KOYO

4. Other electronic component- Schneider

 Parameter
Finished Product Thickness 0.7-1.2mm
Material Galvanized/Carbon   Steel Coil
Effective width 150-400mm
Machine Main Specification
Coiler Dimensions for   decoiler 500*800*1000mm
Capacity 3 tons
Mandrel expansion by Manual


Roll forming part Dimensions for   rollformer 7700*800*1500mm
Structure Column
Working Station 20 working stations
Roller Material GCr15,Double   machining
Shaft Diameter 76mm
Driving System Chain driving
Main power 7.5KW
Cutter Material Cr12.Mov.HRC58-62
Power of hydraulic station 3.0KW
Cutting   System Hydraulic



More than 10 year working life


Our machine can steady running at least 10 years.

Based on this situation, you could have stable productivity and avoid from fixing.



More individal service


If you have requrest of your using problem, like running space, operation program language. We can do better.


Better after-sale service

Life long response within 12 hours , while you have question of running machine.
