YD-SD-01
YTSING

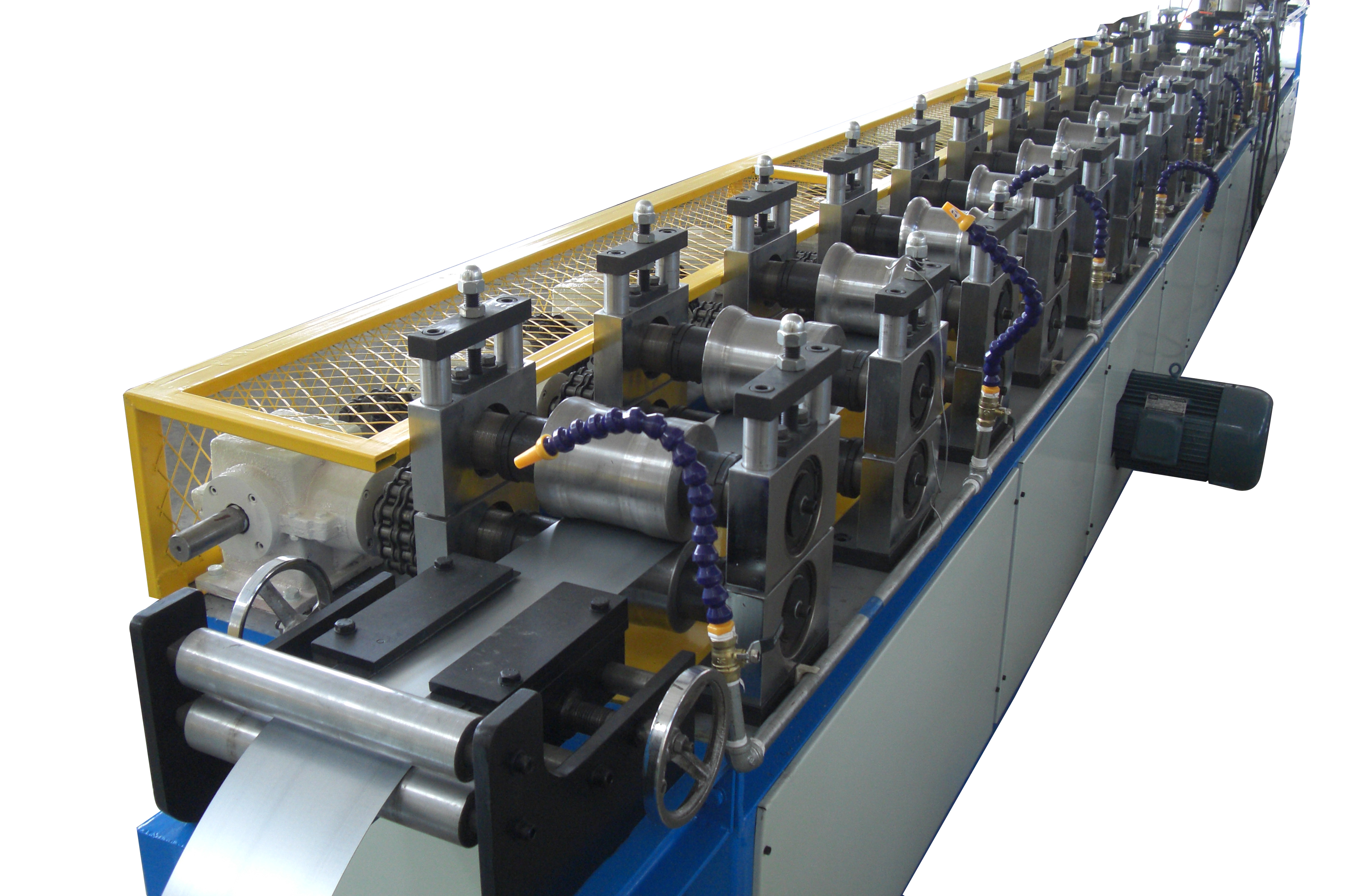

STEEL GUTTER CHANNEL ROLL FORMING MACHINE

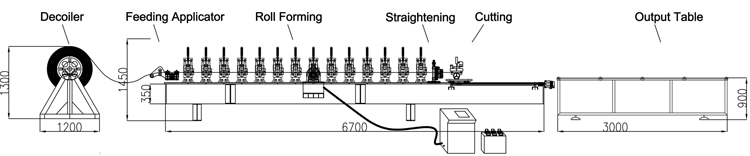

Production Line Sketch
Decoiler→Feeding →Roll Forming→Hydraulic Cutting →Table
| Parameter | ||
| Finished Product | Thickness | 0.5-0.9mm |
| Material | Galvanized/Carbon Steel Coil | |
| Effective width | 100-150mm | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 500*800*1000mm |
| Capacity | 3 tons | |
| Mandrel expansion by | Manual | |
| Roll forming part | Dimensions for rollformer | 6700*700*1500mm |
| Structure | Column | |
| Working Station | 12 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 68mm | |
| Driving System | Chain driving | |
| Main power | 5.5KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 3.0KW | |
| Cutting System | Hydraulic | |
