YD-DP-02
YTSING

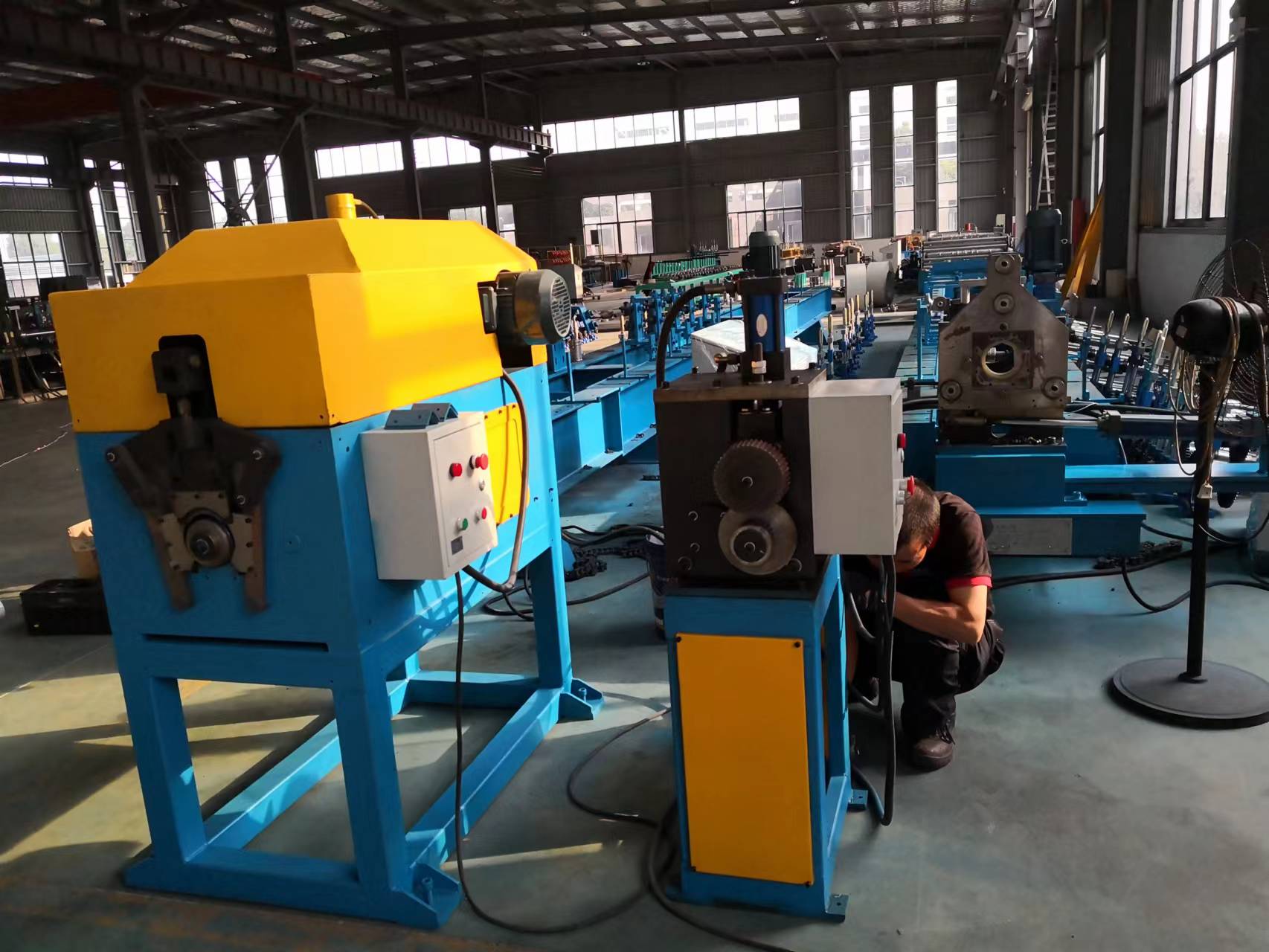

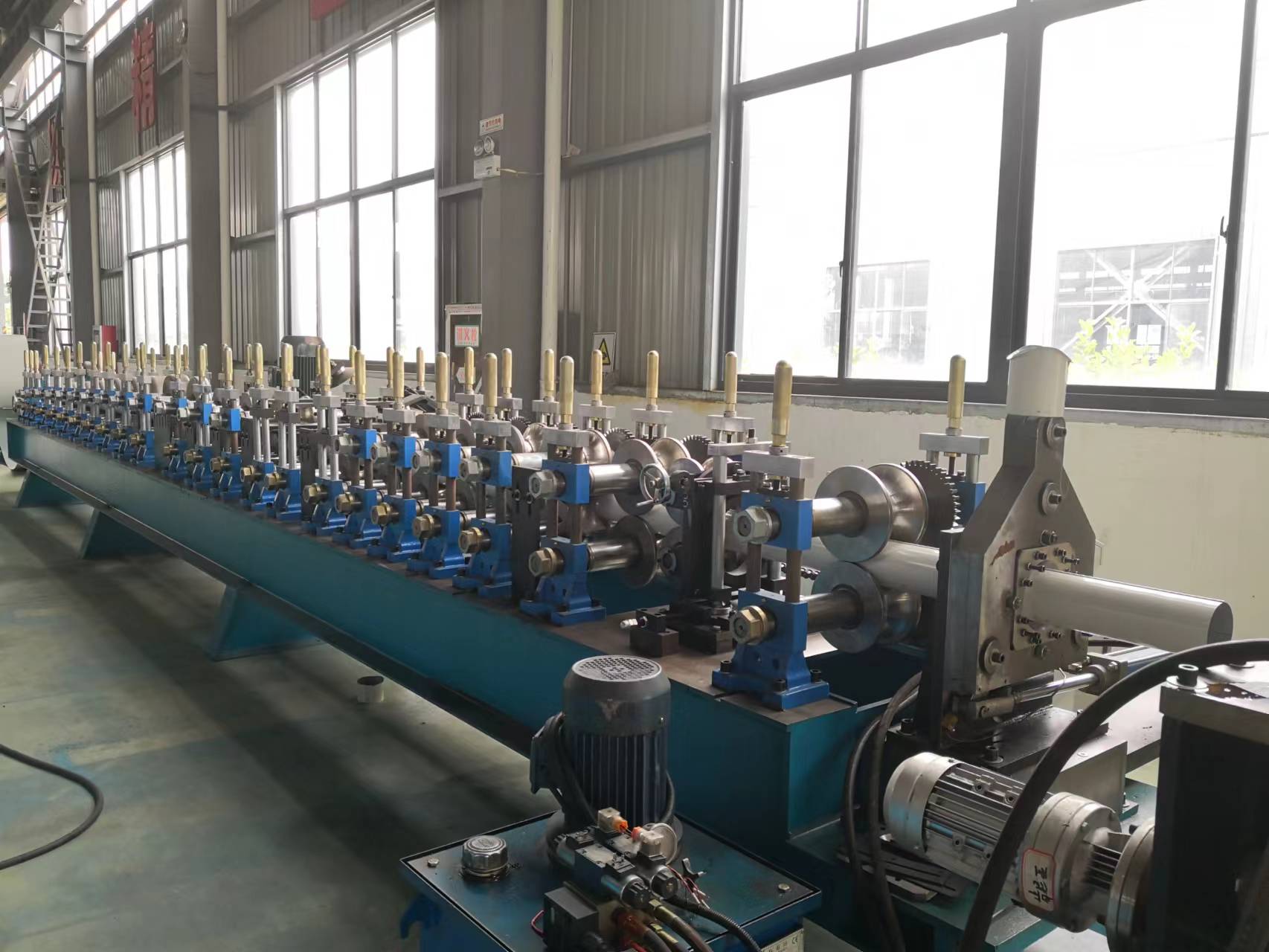

Downspout roll forming machine,round pipe making machine
| Parameter | ||
| Finished Product | Thickness | 0.4-0.6mm |
| Material | AZ | |
| Effective width | φ101mm | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 800*1500*1500mm |
| Capacity | 3tons | |
| Mandrel expansion by | manual | |
| Roll forming part | Dimensions for rollformer | 8000*2000*1500mm |
| Structure | Column | |
| Working Station | 20 working stations | |

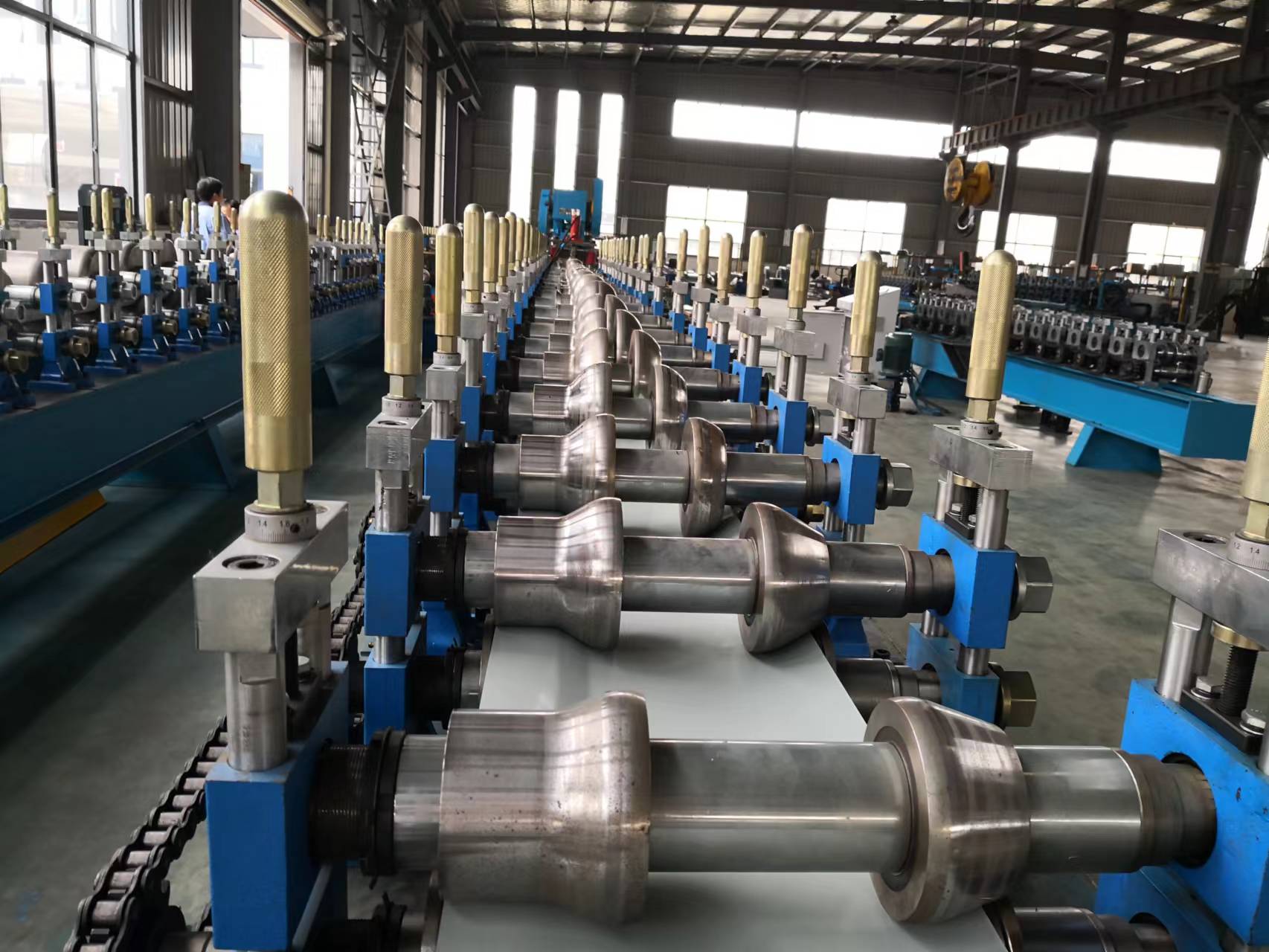

| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 68mm | |

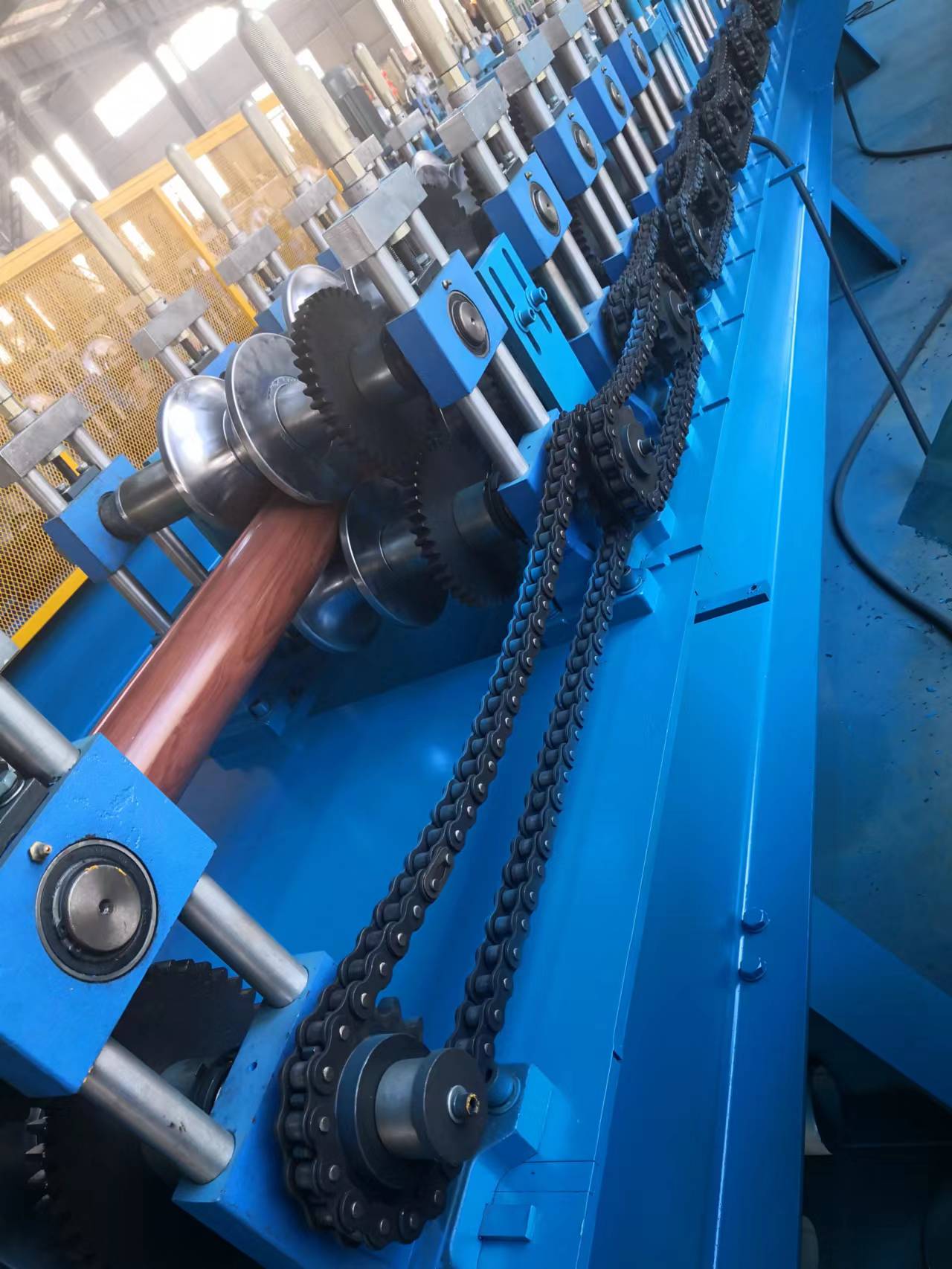

| Driving System | Chain driving | |
| Main power | 7.5KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 3.0KW | |

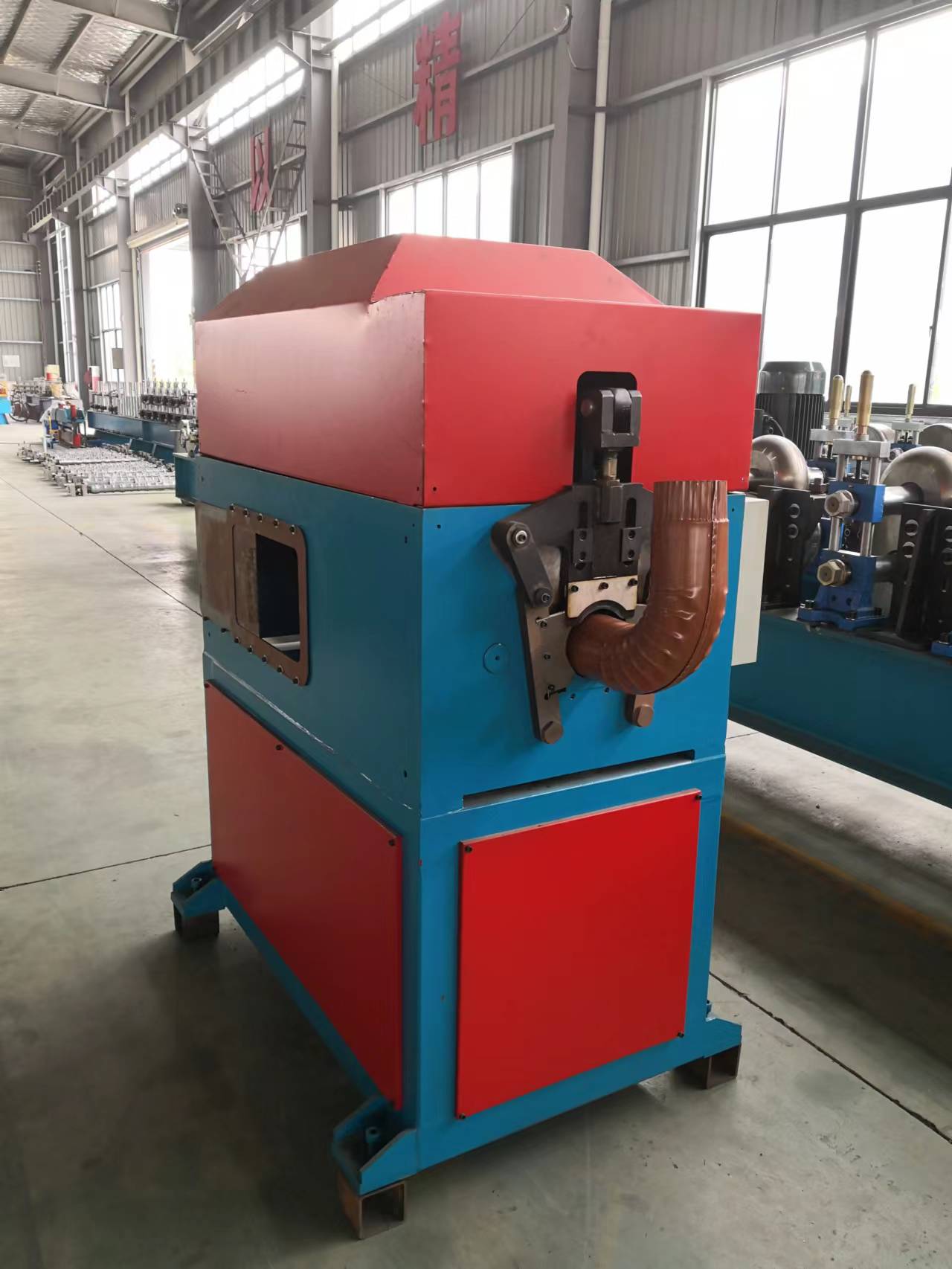

| Cutting and bending System | Hydraulic | |
Downspout roll forming machine,round pipe making machine
| Parameter | ||
| Finished Product | Thickness | 0.4-0.6mm |
| Material | AZ | |
| Effective width | φ101mm | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 800*1500*1500mm |
| Capacity | 3tons | |
| Mandrel expansion by | manual | |
| Roll forming part | Dimensions for rollformer | 8000*2000*1500mm |
| Structure | Column | |
| Working Station | 20 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 68mm | |
| Driving System | Chain driving | |
| Main power | 7.5KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 3.0KW | |
| Cutting and bending System | Hydraulic | |
