YD-GT-001
YTSING
00123
| NO | TYPE | SPECIFICATION | |
| 1 | RAW MATERIAL 板材 | TYPE 类型 | Galvanized |
| Thickness 厚度 | 1.8-2.5MM | ||

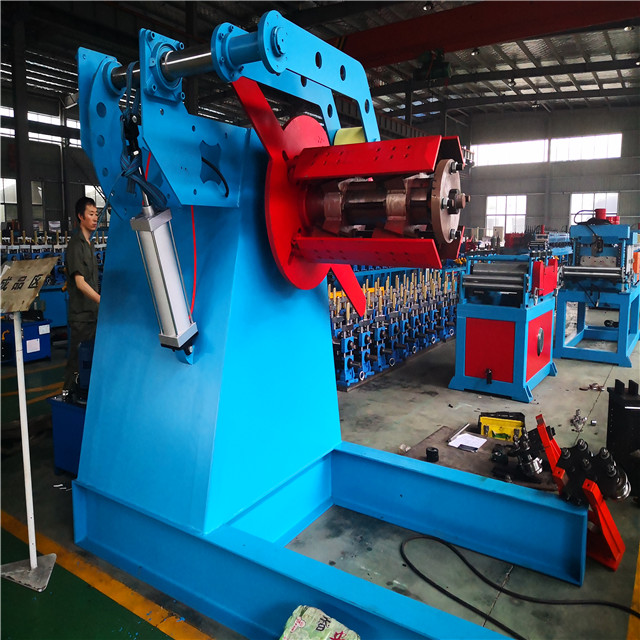

| 2 | UNCOILER 料架 | Operation 载重 | 5 TONS Hydraulic powered uncoiler |
| Coil width 料宽 | 480mm(based on your actual product) | ||
| Max coil weight 卷重 | 5000kg | ||
| Mandrel face length芯轴面长度 | 300mm | ||
| Inner diameter of coil卷轴内径 | 480-530mm | ||
| Max out diameter最大外径 | 1600mm | ||
| Material of shaft 轴材料 | GCR45 steel | ||

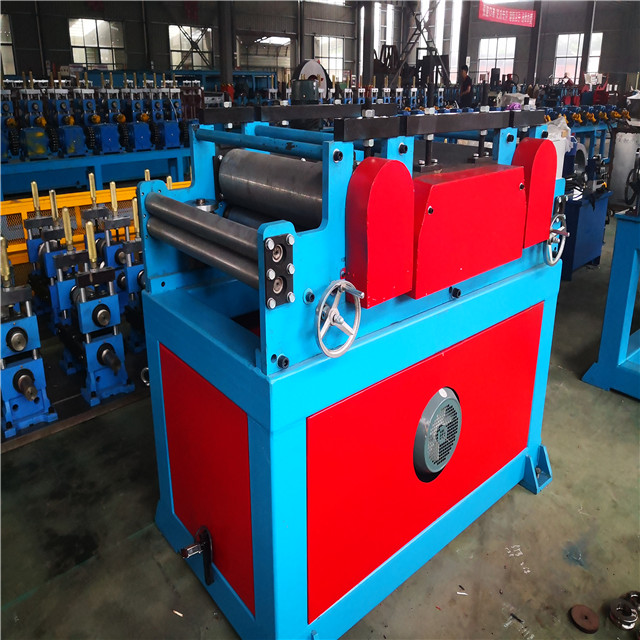

| 3 | LEVELING UNIT整平系统 | Working roller辊数量 | 7 rollers |
| Motor power电机功率 | 4.0kw | ||
| Feature of structure结构处理 | quenching and tempering淬火 | ||
| 4 | SERVO MOTOR FEEDING AND HYDRAULIC PUNCHING HOLES AND GAPS 伺服进料及液压冲孔及冲缺口 | Power of servo motor 伺服电机功率 | 2.2KW |
| Thickness of coil材料厚度 | 1.8-2.5MM | ||
| Hydraulic punching液压冲孔功率 | 5.5kw | ||
| 5 | ROLL FORMER成型 | Work station道次 | 20sets |
| Max. roll shaft diameter轴径 | 85mm | ||
| Power 功率 | 18.5kw | ||
| Max production speed成型速度 | 10mtr./min(including punching and cutting)含冲孔和剪切 | ||
| Transducer 传感器 | yaskawa | ||
| Roller Material辊材质 | GCr15, CNC double machining,hard chromeGCr15，数控双机加工，硬镀铬 | ||
| Transmission传动 | Gear box+Cardan shaft齿轮箱+万向轴 | ||
| cooling system冷却系统 | with blow airing system 带吹风系统 | ||

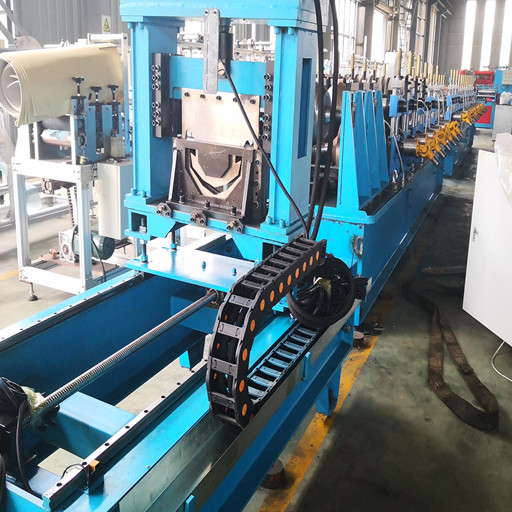

| 6 | HYDRAULIC NON-STOP CUTTING SYSTEM(TRACKING)液压跟踪不停机剪 | Hydraulic pressure液压压力 | 20Mpa |
| Power 功率 | 5.5kw | ||
| Cutting mould material剪切模具材料 | Cr12 MOV, quenched 淬火的 HRC58-62 | ||
| 7 | OUTPUT TABLE | Specification(W*H) | 3000mm*1500mm |
| Stacking length | According to your demands | ||
