YD-EF-05
YTSING

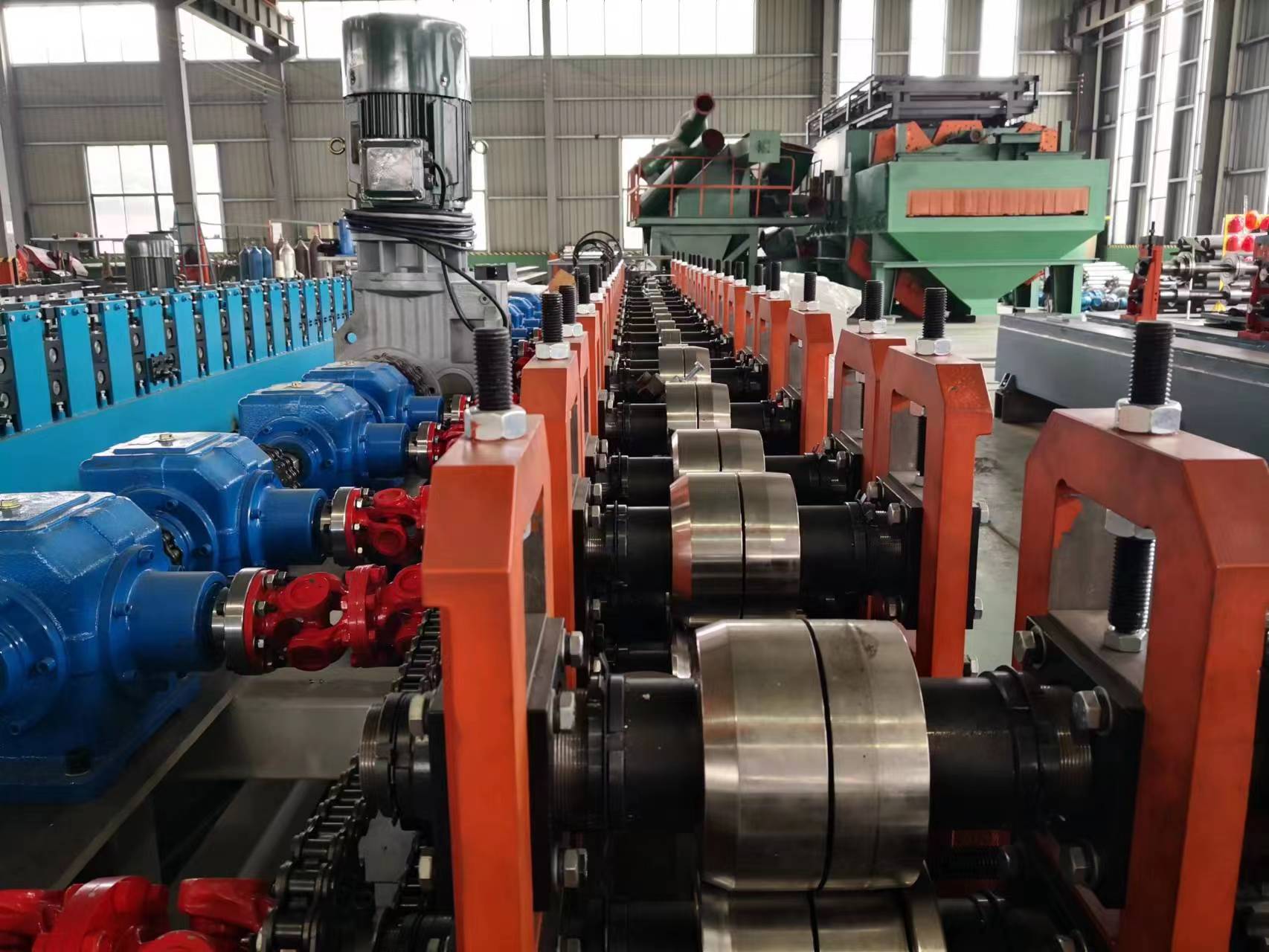

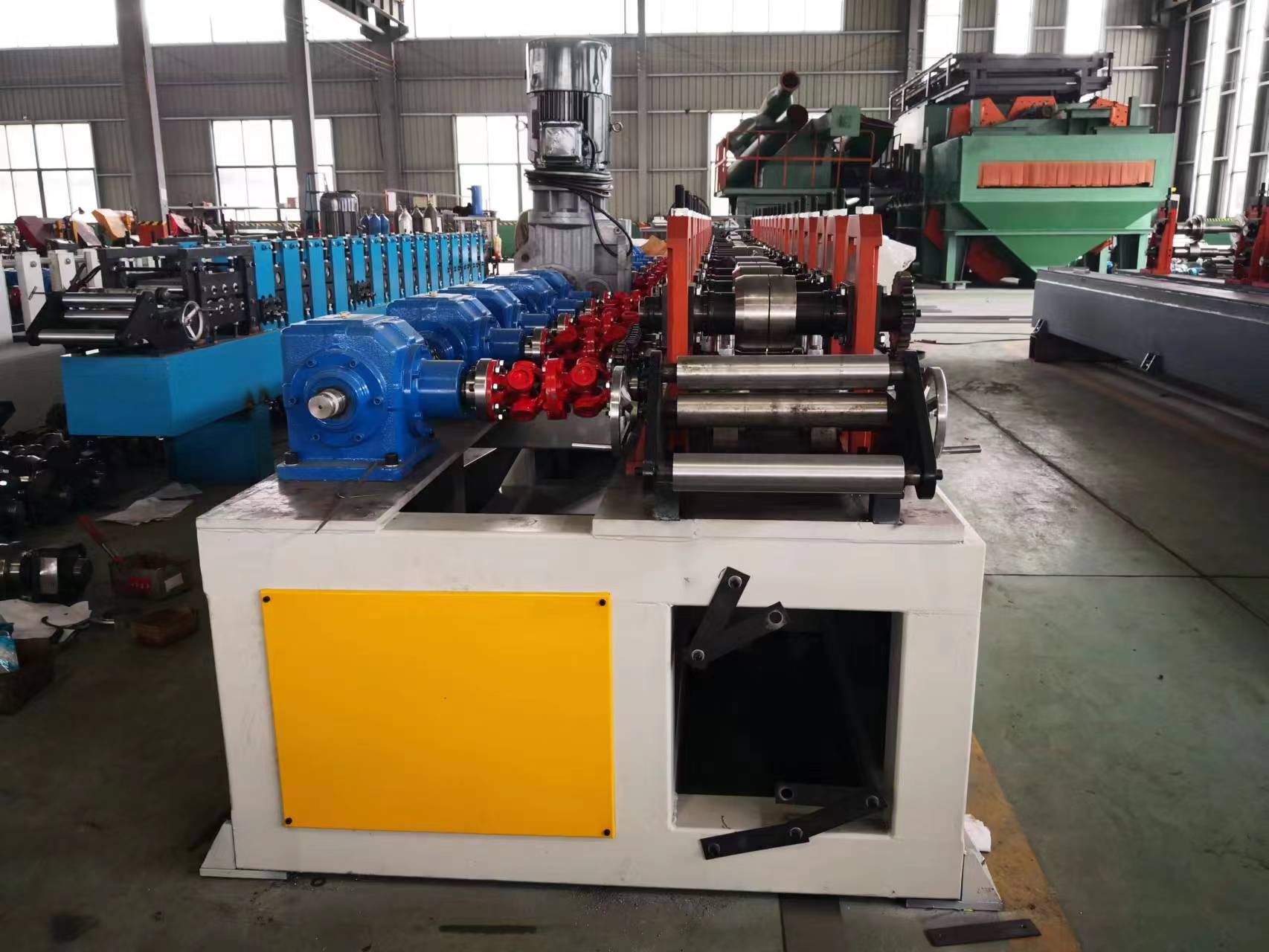

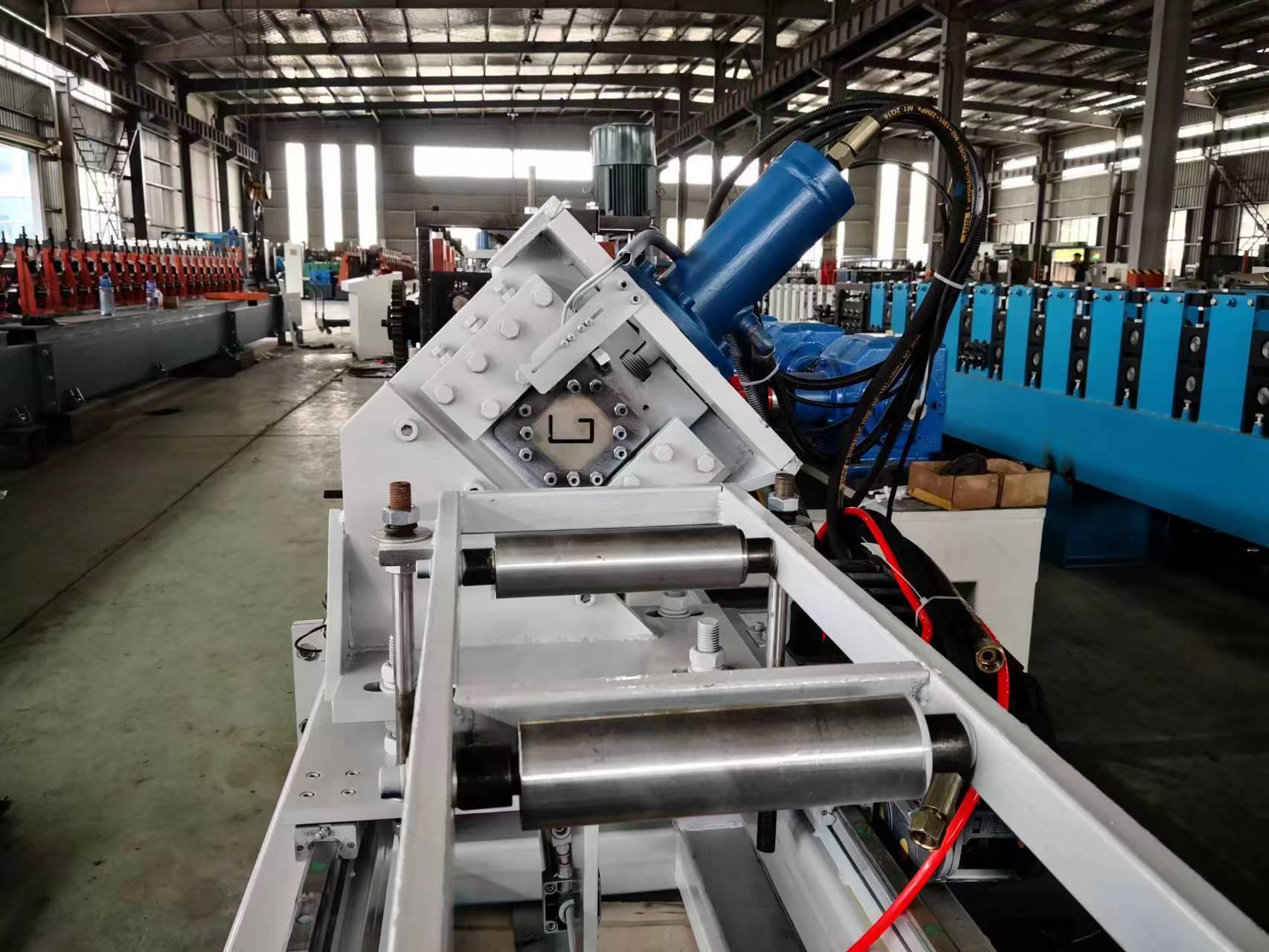

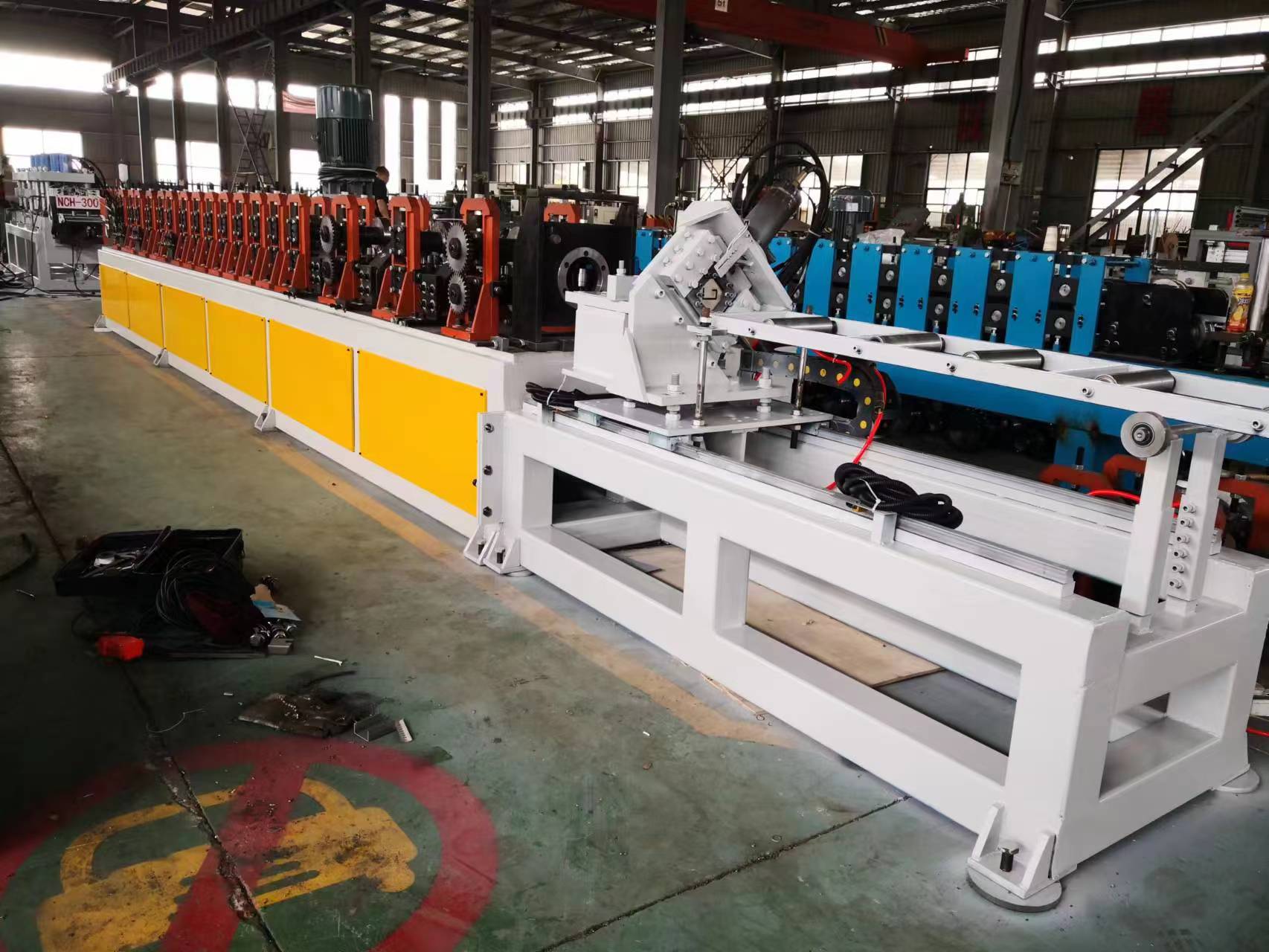

Factory made elevator guide rail making machine with high precision

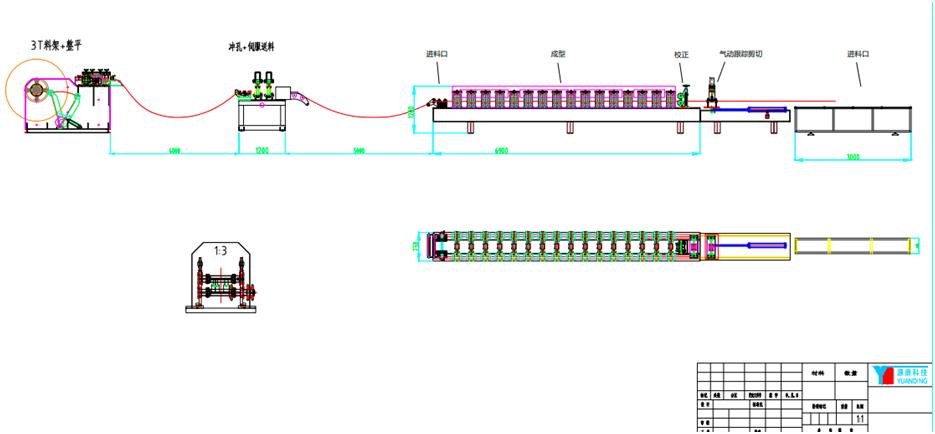

Machinery flow chart:
| Parameter | ||
| Finished Product | Thickness | 2.0-2.5mm |
| Material | Q235 | |
| Effective width | 50MM | |
| Machine Main Specification | ||
| Coiler+Leveling | Dimensions for decoiler | 500*800*800mm |
| Capacity | 3 tons | |
| Mandrel expansion by | manual | |
| Leveling | 7rollers(top3+down4) | |
| Punching unit | Dimensions for punching | 3000*800*1000mm |
| Working station | 7 stations | |
| Punching Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 7.5KW | |
| Roll forming part | Dimensions for rollformer | 15000*1800*1500mm |
| Structure | Column | |
| Working Station | 19working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 76mm | |
| Driving System | Gearbox driving | |
| Main power | 18.5KW | |
| Cutter Material | mould blade | |
| Power of hydraulic station | 4.0KW | |
| Cutting System | Hydraulic and tracking | |
