YD-EF-07
YTSING

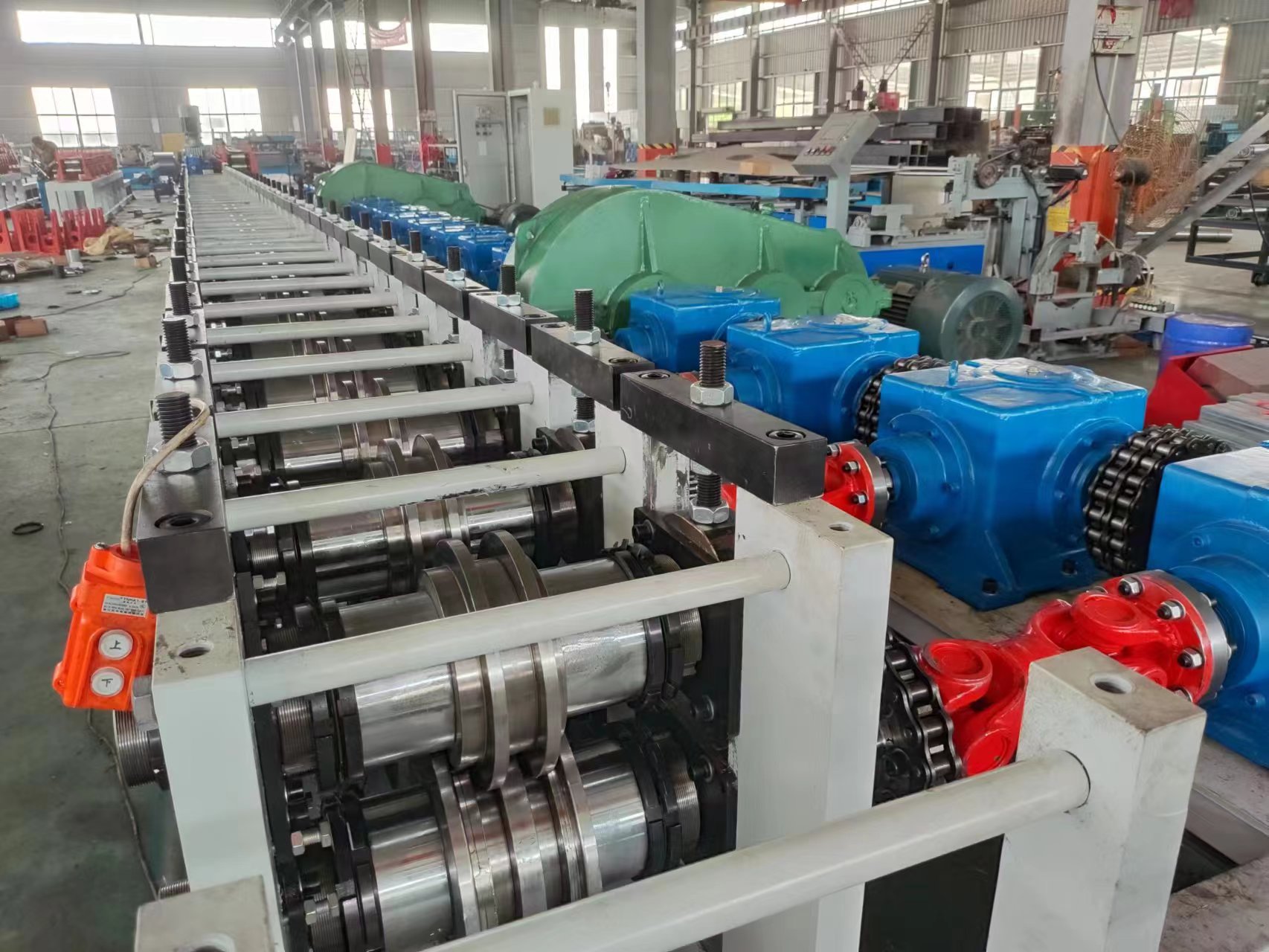

4.5mm thickness elevator guide rail making machine with high precision

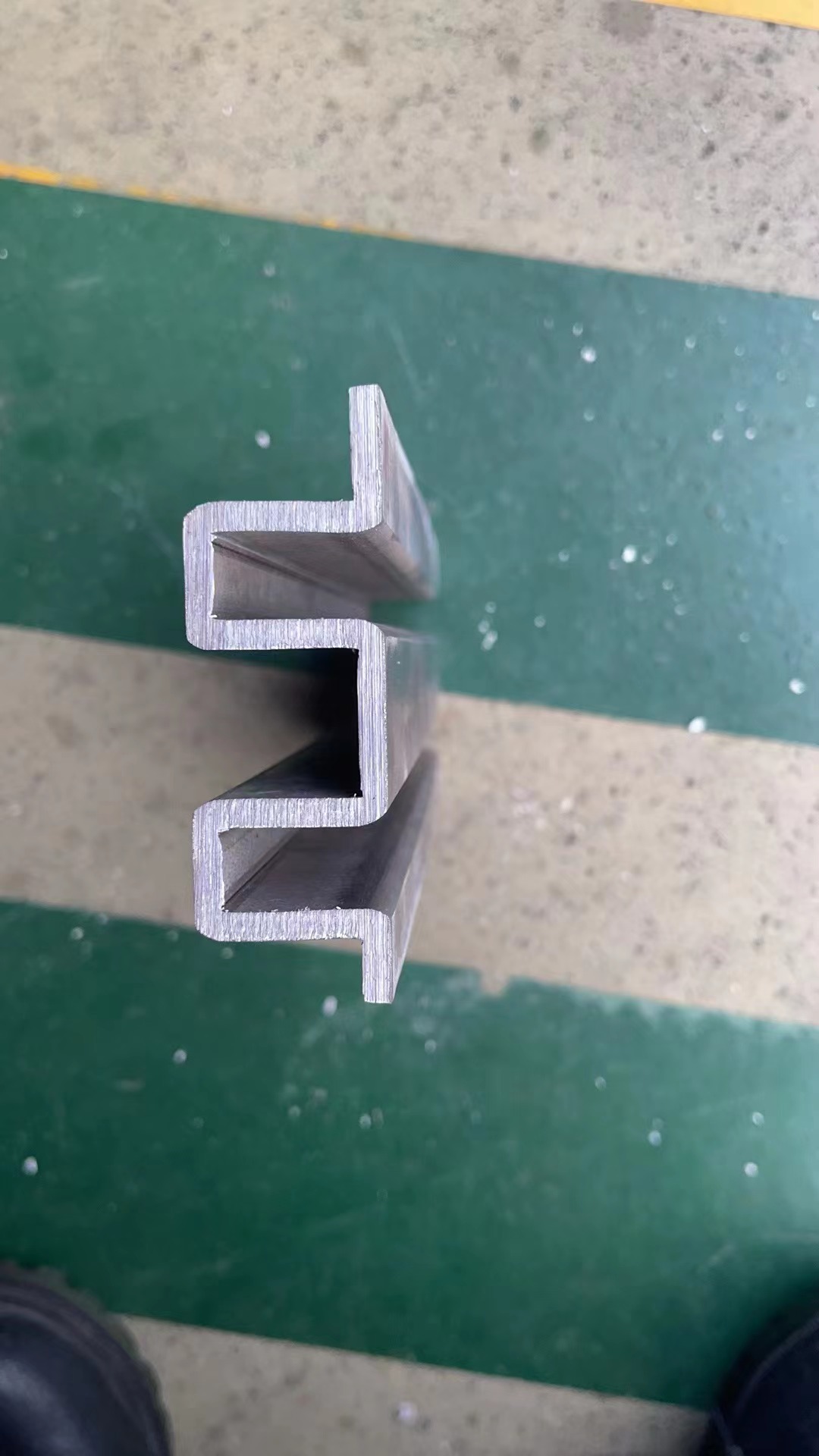

| Finished Product | Thickness | 4.5mm |
| Material | Q235 | |
| Effective width | 92MM | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 1200*800*1200mm |
| Capacity | 5tons | |
| Mandrel expansion by | Hydraulic | |
| Power of hydraulic station | 5.5kw | |
| Roll forming part | Dimensions for rollformer | 10000*1200*1500mm |
| Structure | Column | |
| Working Station | 34working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 100mm | |
| Driving System | Gearbox driving | |
| Main power | 30KW*2 | |
| Cutter Material | mould blade | |
| Power of hydraulic station | 4.0KW | |
| Cutting System | Hydraulic and tracking | |
