YD-EF-01
YTSING
Cold roll forming machine for Elevator frame guide with high precision

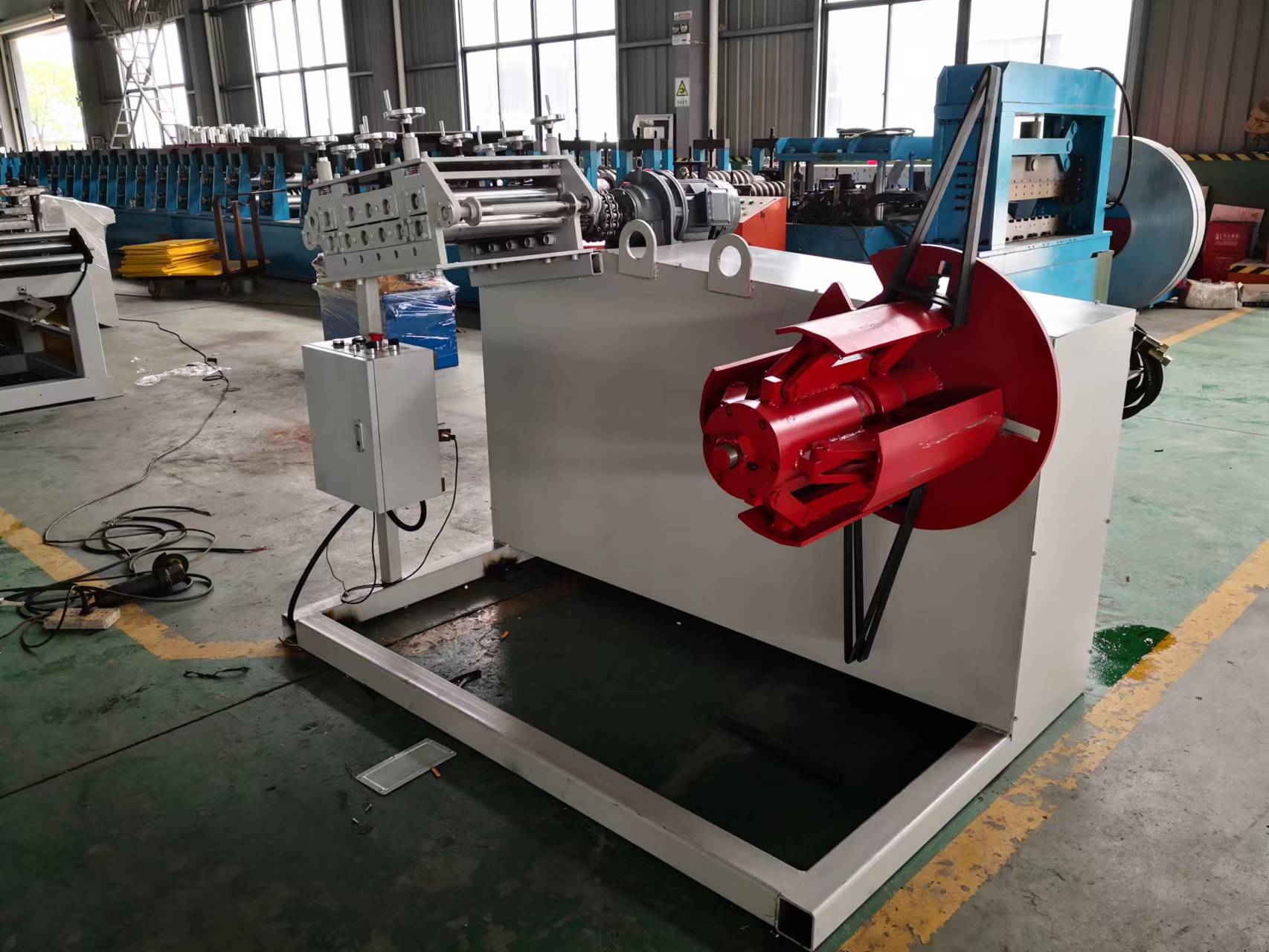

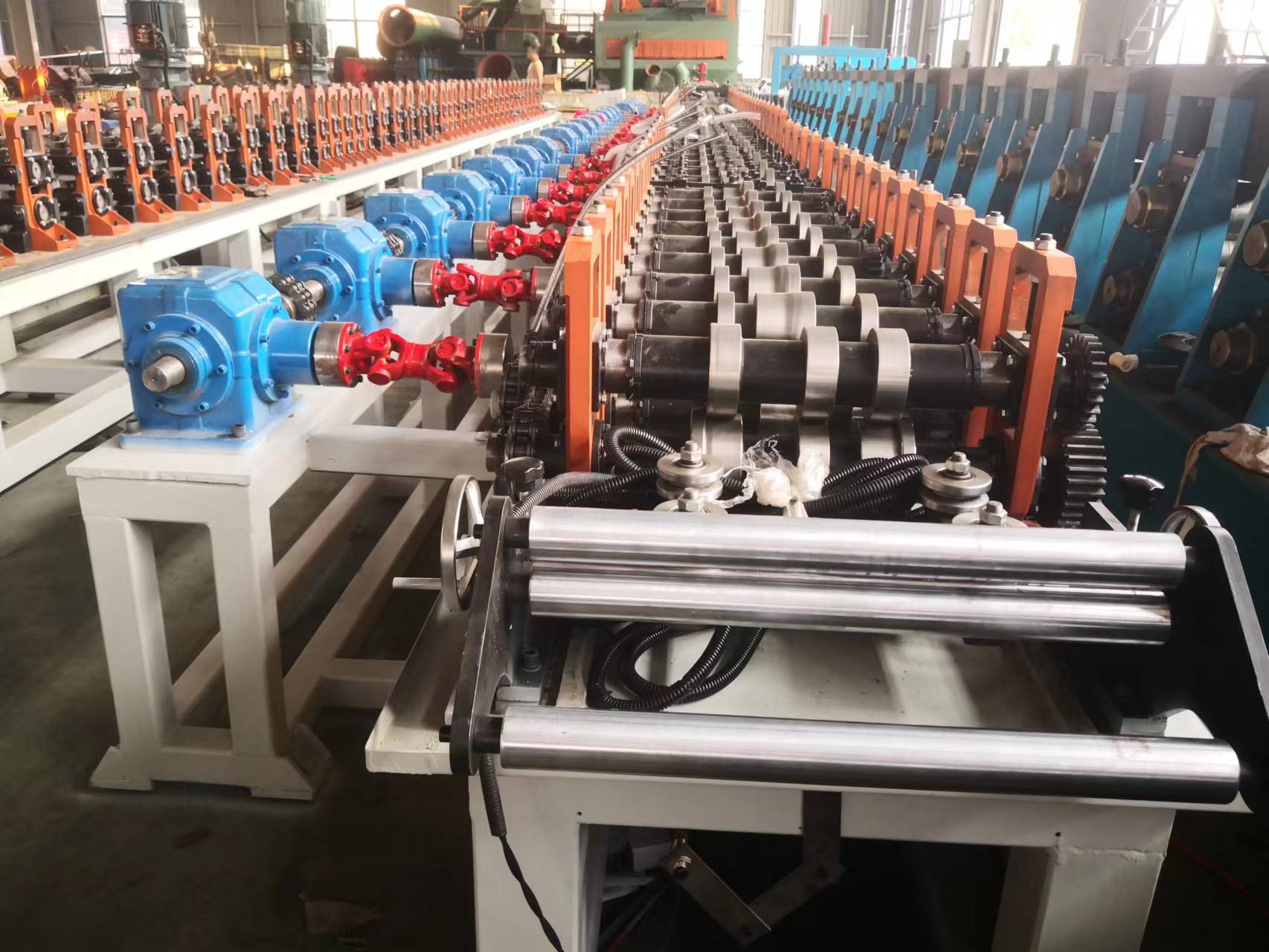

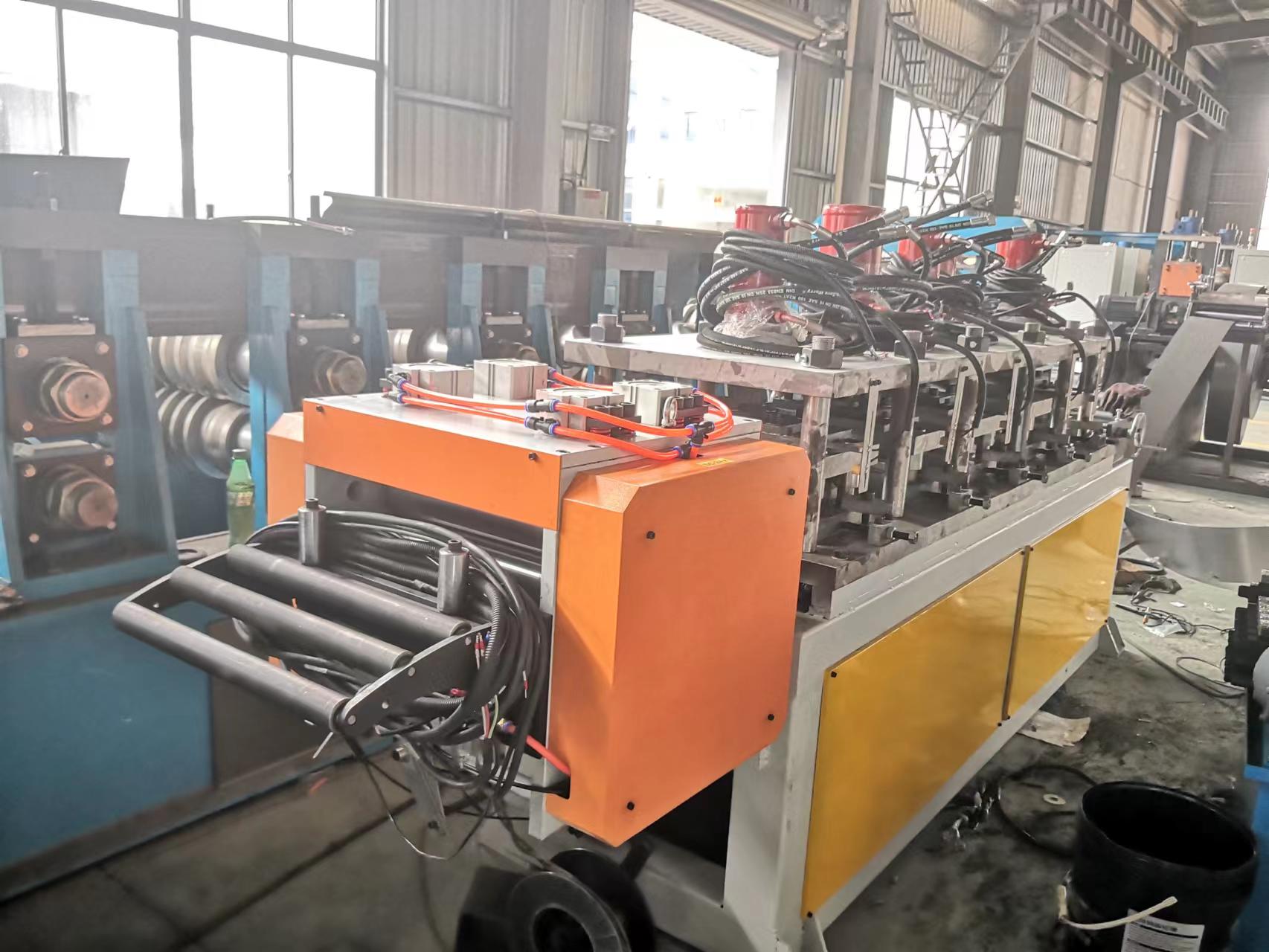

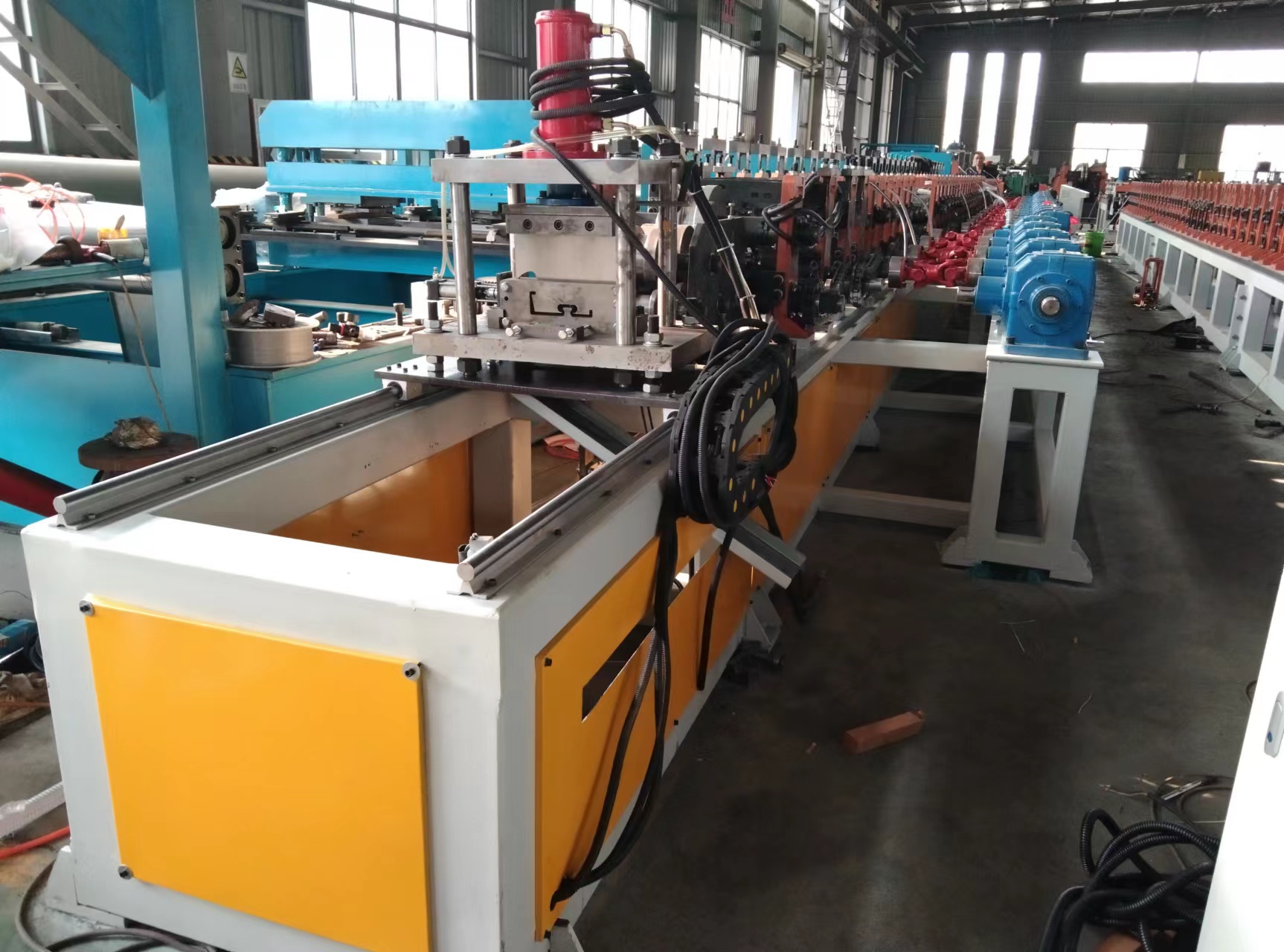

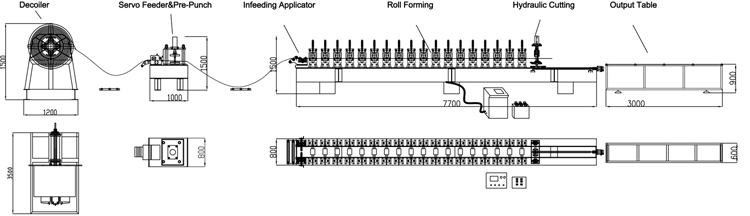

Flow chart of this machinery is :Decoiler,Servo feeder&Pre-punch,Infeeding Applicator, Roll Forming, Tracking Cutter,Output table
| 参数 Parameter | |
| Finished Product | |
| Thickness | 2.0mm |
| Material | Galvanized/Carbon Steel Coil |
| Machine Specification | |
| Dimensions | 18000*2000*1500mm |
| Structure | Cast Iron Stands |
| Working Station | 46 working stations |
| Roller Material | Cr12.Mov.HRC58-62 |
| Shaft Diameter | 76mm |
| Cutter Material | Cr12.Mov.HRC58-62 |
| Driving System | Gearbox |
| Cutting System | Hydraulic |
