C Shape Roll Forming Machine Full Automatically With Punching Holes

High Precision Elevator Products C Shape Guide Rail Macking Machine with Punching holes
  • YD-EF-04

  • YTSING

Availability:


High Precision Elevator Products C Shape Guide Rail  Macking  Machine

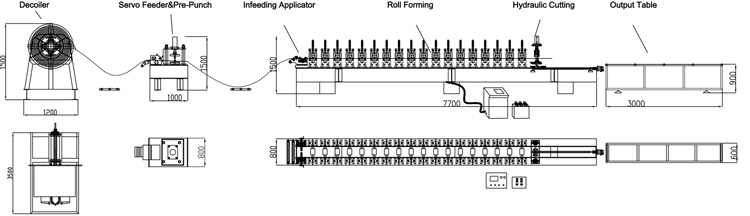

The Chart Of Process Flow

门框窗框


 Parameter
Finished Product
Thickness 1.0-1.2mm
Material Galvanized/Carbon   Steel Coil
Machine Specification
Dimensions 12000*1600*1500mm
Structure Column
Working   Station 24 working stations
Roller   Material Cr12.Mov.HRC58-62
Shaft   Diameter 68mm
Cutter   Material Cr12.Mov.HRC58-62
Driving   System Gearbox
Cutting System Hydraulic


88ddf551b6cda9b09def40c7cfad0c6


主图1
