YD-RT-02
YTSING
8455229090
Availability: | |
---|---|
HIGH DUTY STRUCTURE The sturcture we use for this machine has the higher duty mechanical behavior; Column stand type, Europe strandard; |

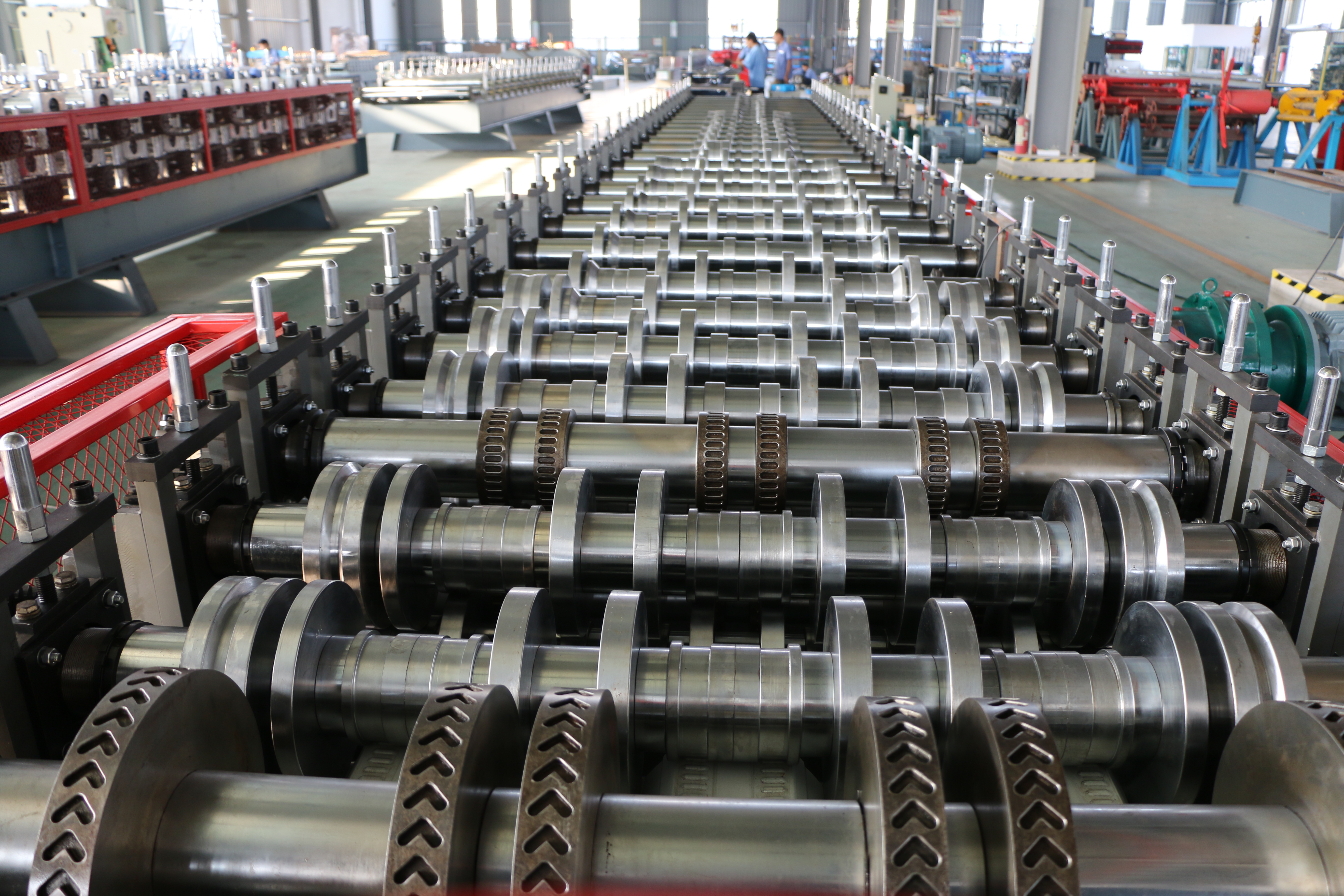

ROLLERS The rollers processing by twice CNC machining and hard chromed, HRC 58-62; Shaft diameter is 90 mm for standard; Roll forming speed is 15m/min; |
CUTTING SYSTEM Cutting blade material CR12 MOV; |
FAMOUS BRAND PLC 1. PLC controller -- Siemens 2. Transducer -- Yaskawa 3. Encoder -- KOYO 4. Other electronic component- Schneider |
Parameter | ||
Finished Product | Thickness | 0.7-1.5mm |
Material | Galvanized/Carbon Steel Coil | |
Effective width | 750-1000mm | |
Machine Main Specification | ||
Coiler | Dimensions for decoiler | 1000*1500*1500mm |
Capacity | 5 tons | |
Mandrel expansion by | Manual | |
Roll forming part | Dimensions for rollformer | 14500*1600*1500mm |
Structure | Column | |
Working Station | 28 working stations | |
Roller Material | GCr15,Double machining | |
Shaft Diameter | 76mm | |
Driving System | Chain driving | |
Main power | 15KW*2 | |
Cutter Material | Cr12.Mov.HRC58-62 | |
Cutting System | Hydraulic |
HIGH DUTY STRUCTURE The sturcture we use for this machine has the higher duty mechanical behavior; Column stand type, Europe strandard; |
ROLLERS The rollers processing by twice CNC machining and hard chromed, HRC 58-62; Shaft diameter is 90 mm for standard; Roll forming speed is 15m/min; |
CUTTING SYSTEM Cutting blade material CR12 MOV; |
FAMOUS BRAND PLC 1. PLC controller -- Siemens 2. Transducer -- Yaskawa 3. Encoder -- KOYO 4. Other electronic component- Schneider |
Parameter | ||
Finished Product | Thickness | 0.7-1.5mm |
Material | Galvanized/Carbon Steel Coil | |
Effective width | 750-1000mm | |
Machine Main Specification | ||
Coiler | Dimensions for decoiler | 1000*1500*1500mm |
Capacity | 5 tons | |
Mandrel expansion by | Manual | |
Roll forming part | Dimensions for rollformer | 14500*1600*1500mm |
Structure | Column | |
Working Station | 28 working stations | |
Roller Material | GCr15,Double machining | |
Shaft Diameter | 76mm | |
Driving System | Chain driving | |
Main power | 15KW*2 | |
Cutter Material | Cr12.Mov.HRC58-62 | |
Cutting System | Hydraulic |
More than 10 year working life
Our machine can steady running at least 10 years.
Based on this situation, you could have stable productivity and avoid from fixing.
More individal service
If you have requrest of your using problem, like running space, operation program language. We can do better.
Life long response within 12 hours , while you have question of running machine.
More than 10 year working life
Our machine can steady running at least 10 years.
Based on this situation, you could have stable productivity and avoid from fixing.
More individal service
If you have requrest of your using problem, like running space, operation program language. We can do better.
Life long response within 12 hours , while you have question of running machine.
PE film covered of machine surface;
Fix by angle steel and steel rope, to make sure no any displacement happen during the reasonable shippment
PE film covered of machine surface;
Fix by angle steel and steel rope, to make sure no any displacement happen during the reasonable shippment
1. Are you manufacturer or trading company?
We are manufacturer for 15 years
2. What is the delivery time?
For standard machine, delivery time is usually 60-70 working days.
3. What is your payment term?
30% TT deposit paid in advance, 70% balance paid before shipping.
4. How can I evaluate your company.
1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.
2-We have CE certificate, and our factory has been inspected by TÜV , SGS, and Bureau Veritas. Please contact us to get the certificate document if you need.
5. How can I get to your factory.
We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
1. Are you manufacturer or trading company?
We are manufacturer for 15 years
2. What is the delivery time?
For standard machine, delivery time is usually 60-70 working days.
3. What is your payment term?
30% TT deposit paid in advance, 70% balance paid before shipping.
4. How can I evaluate your company.
1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.
2-We have CE certificate, and our factory has been inspected by TÜV , SGS, and Bureau Veritas. Please contact us to get the certificate document if you need.
5. How can I get to your factory.
We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
