YD-EG-01
YTSING

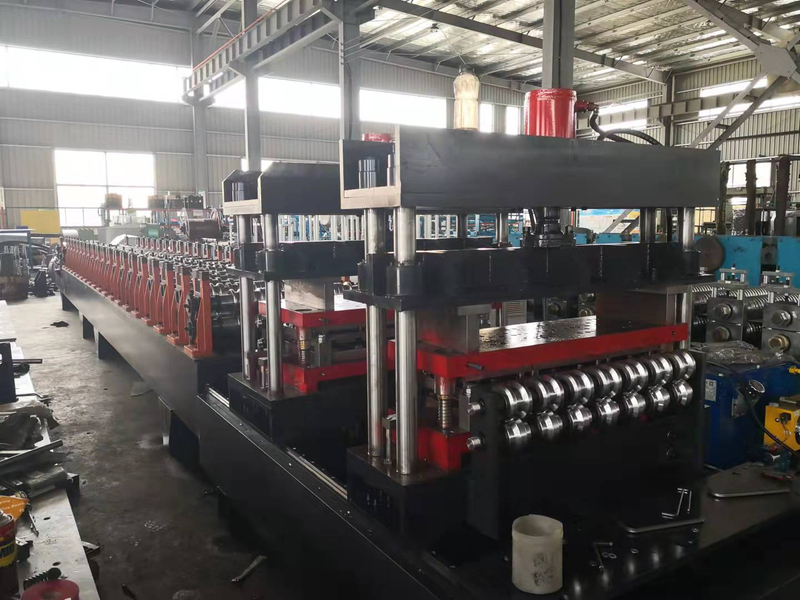

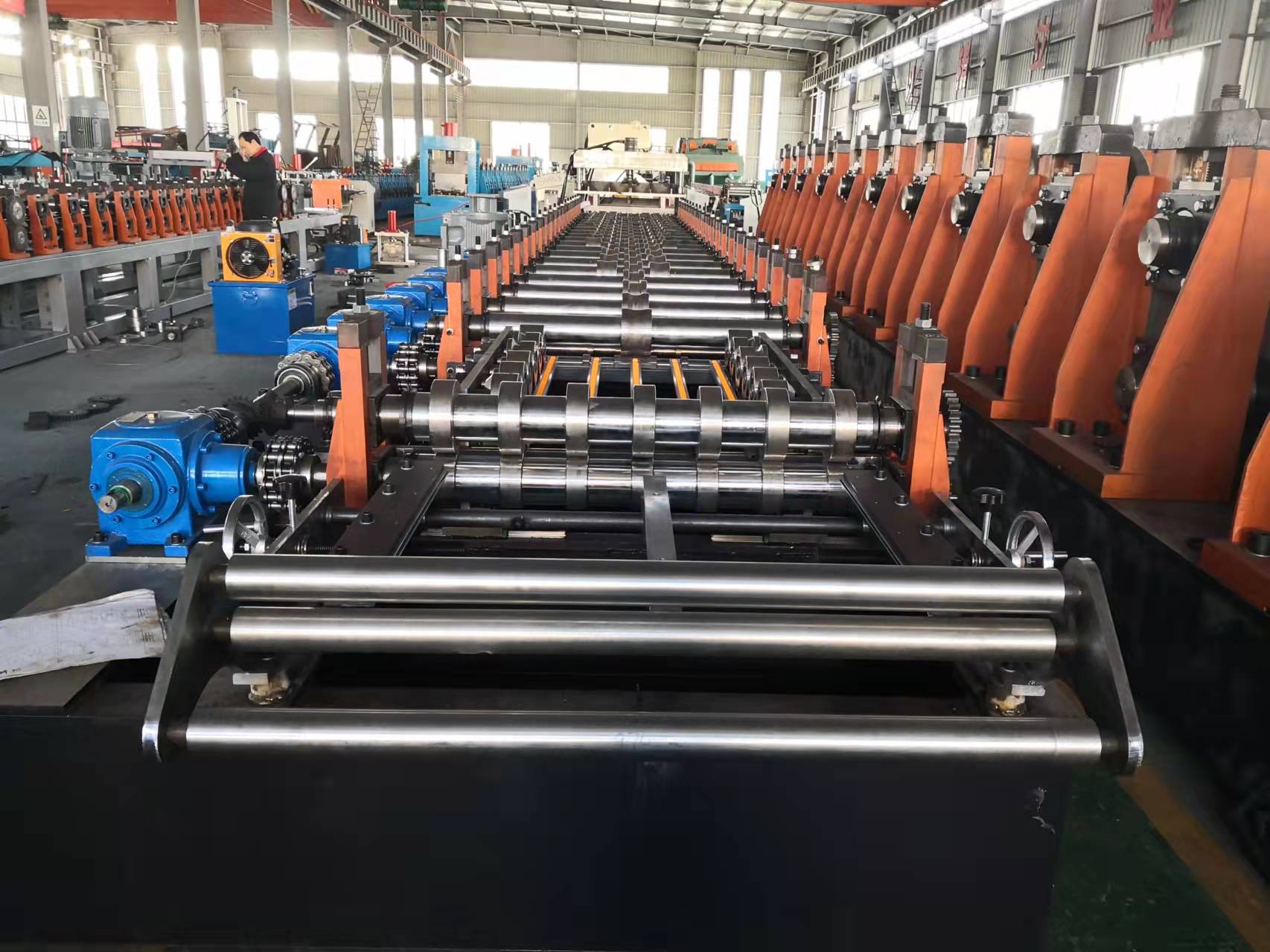

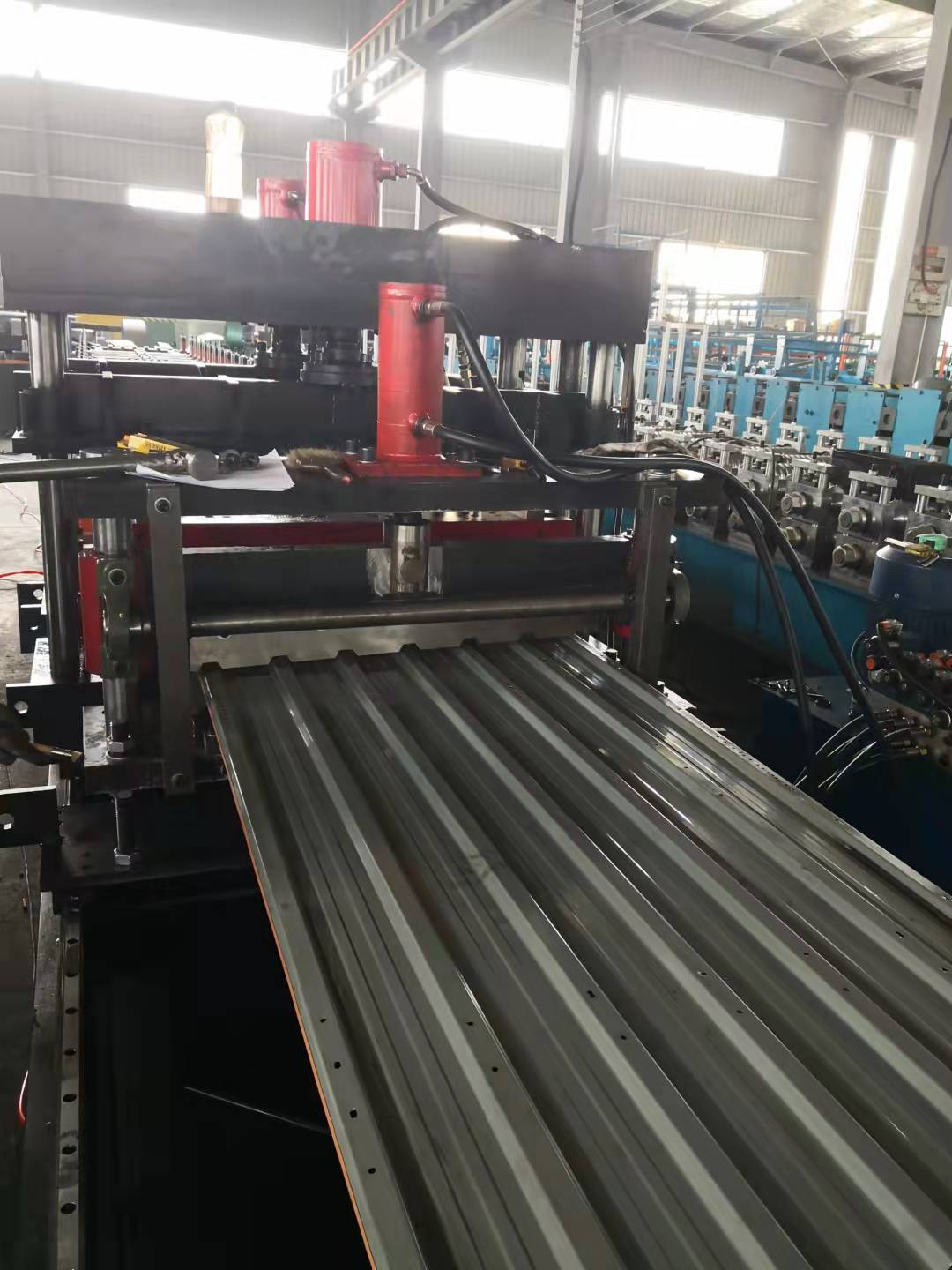

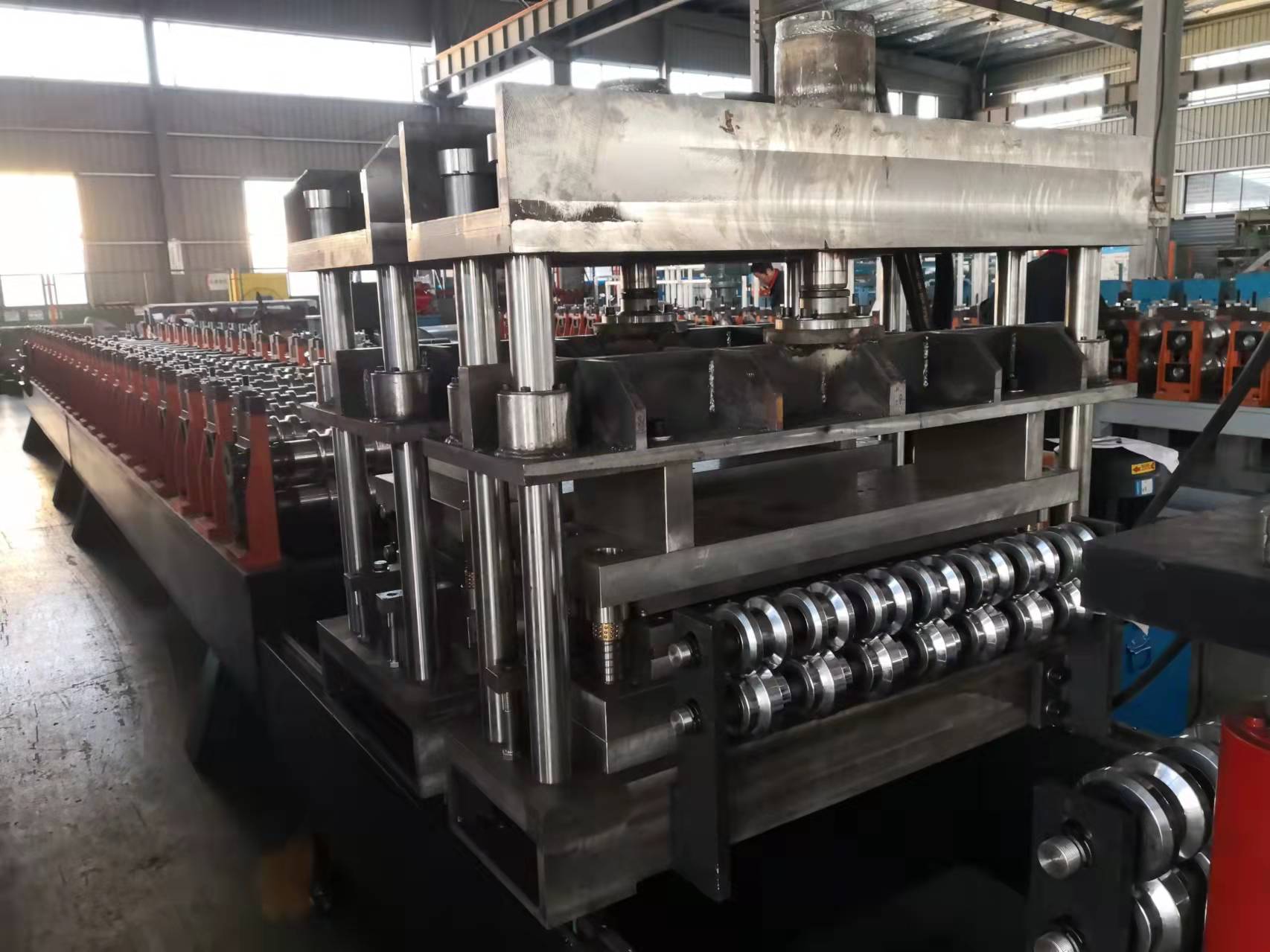

Construction Enclosures or guardrails making machine with punching holes together
| Parameter | ||
| Finished Product | Thickness | 1.0-1.2mm |
| Material | STEEL | |
| Effective width | 760-1000 | |
| Machine Main Specification | ||
| Coiler | Dimensions for decoiler | 800*1500*1500mm |
| Capacity | 5tons | |
| Mandrel expansion by | manual | |
| Punching unit | Punching Material | Cr12.Mov.HRC58-62 |
| Power of hydraulic station | 7.5KW | |
| Roll forming part | Dimensions for rollformer | 12000*1500*1500mm |
| Structure | Column | |
| Working Station | 20 working stations | |
| Roller Material | GCr15,Double machining | |
| Shaft Diameter | 76mm | |
| Driving System | Gearbox driving | |
| Main power | 11KW | |
| Cutter Material | Cr12.Mov.HRC58-62 | |
| Power of hydraulic station | 4.0KW | |
| Cutting System | Hydraulic | |
