YD-RT-02
YTSING
8455229090
Availability: | |
---|---|
Item | Parameter | |
Material | Thickness | 0.5-1.5mm |
10tons decoiler | Material of shaft | GCr 45 steel |
Diameter of shaft | 130mm | |
Inner-diameter | 480-630mm | |
Speed | 0-19m/min | |
Main motor power | 7.5 kw | |
Hydraulic motor | 5.5 kw | |
Capacity | 10 tons de-coiler with coil cart | |
Max.Out diameter | 1300mm | |
Material of shaft | GCr 45 steel | |
Diameter of shaft | 130mm | |
Inner-diameter | 480-630mm | |
Speed | 0-19m/min | |

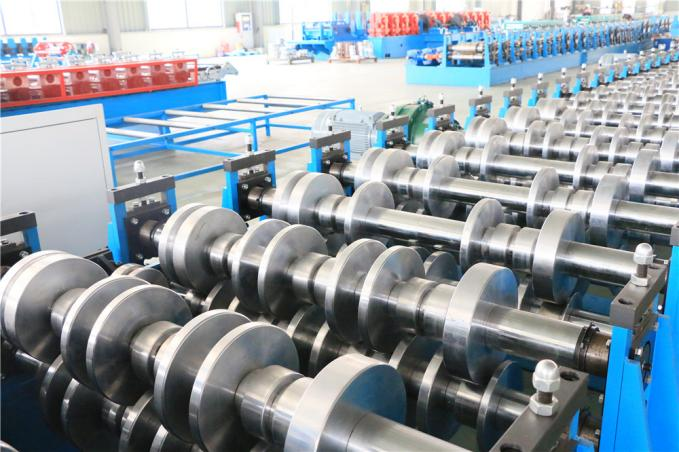

Forming stand | Station | 40stations |
Shaft Material | 45# steel 100mm diameter; | |
Frame body | H-BEAM frame 450 mm | |
Roller materail | GCr15 , hard chromed , HRC 58-62 | |
Main motor | 15kwX2=30kw | |
Forming speed | 10-15m/min(not include cutting) | |
Voltage | 380v,50hz,3ph | |
Transport | Chains drive | |
Size approx | 12.0m*1.4m*1.5m | |
Weight | Around 10T | |
Overall packing shipment | t 1* 40ft | |
Working hours | per day 8 to 16 hours | |
Set up time | 30 min | |
Line direction | Left to right while facing operator panel | |
Cages | Use the strong steel nets sliding on the full machine length | |
Hydraulic Cutting system | Material | Blade and mold material: Cr12mov steel with quenched treated 60-62℃ |
Cutting power | 5.5kw | |
Auto stacker | Specification(W*H) | 6000mm*1500mm |
Process | Transmitting rolls —output rolls moving—sheet entry—sheet landing—output | |
Others | Screen | 5.7inch Siemens Touch Screen |
PLC and frequency conversion | Siemens PLC,Yasakaw Frequency Changer | |
Other electronic components | Schneider | |
Encoder | Omron | |
Use | 1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved. 3)Error is easy to adjusted. | |
Language | English and Chinese | |
Product | Length | Based on requirements |
Accuracy level | Profile dimension +/- 0.5 mm Cut length: +/-1.5-2.0 mm |
Item | Parameter | |
Material | Thickness | 0.5-1.5mm |
10tons decoiler | Material of shaft | GCr 45 steel |
Diameter of shaft | 130mm | |
Inner-diameter | 480-630mm | |
Speed | 0-19m/min | |
Main motor power | 7.5 kw | |
Hydraulic motor | 5.5 kw | |
Capacity | 10 tons de-coiler with coil cart | |
Max.Out diameter | 1300mm | |
Material of shaft | GCr 45 steel | |
Diameter of shaft | 130mm | |
Inner-diameter | 480-630mm | |
Speed | 0-19m/min | |
Forming stand | Station | 40stations |
Shaft Material | 45# steel 100mm diameter; | |
Frame body | H-BEAM frame 450 mm | |
Roller materail | GCr15 , hard chromed , HRC 58-62 | |
Main motor | 15kwX2=30kw | |
Forming speed | 10-15m/min(not include cutting) | |
Voltage | 380v,50hz,3ph | |
Transport | Chains drive | |
Size approx | 12.0m*1.4m*1.5m | |
Weight | Around 10T | |
Overall packing shipment | t 1* 40ft | |
Working hours | per day 8 to 16 hours | |
Set up time | 30 min | |
Line direction | Left to right while facing operator panel | |
Cages | Use the strong steel nets sliding on the full machine length | |
Hydraulic Cutting system | Material | Blade and mold material: Cr12mov steel with quenched treated 60-62℃ |
Cutting power | 5.5kw | |
Auto stacker | Specification(W*H) | 6000mm*1500mm |
Process | Transmitting rolls —output rolls moving—sheet entry—sheet landing—output | |
Others | Screen | 5.7inch Siemens Touch Screen |
PLC and frequency conversion | Siemens PLC,Yasakaw Frequency Changer | |
Other electronic components | Schneider | |
Encoder | Omron | |
Use | 1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved. 3)Error is easy to adjusted. | |
Language | English and Chinese | |
Product | Length | Based on requirements |
Accuracy level | Profile dimension +/- 0.5 mm Cut length: +/-1.5-2.0 mm |
More than 10 year working life
Our machine can steady running at least 10 years.
Based on this situation, you could have stable productivity and avoid from fixing.
More individal service
If you have requrest of your using problem, like running space, operation program language. We can do better.
Life long response within 12 hours , while you have question of running machine.
More than 10 year working life
Our machine can steady running at least 10 years.
Based on this situation, you could have stable productivity and avoid from fixing.
More individal service
If you have requrest of your using problem, like running space, operation program language. We can do better.
Life long response within 12 hours , while you have question of running machine.
PE film covered of machine surface;
Fix by angle steel and steel rope, to make sure no any displacement happen during the reasonable shippment
PE film covered of machine surface;
Fix by angle steel and steel rope, to make sure no any displacement happen during the reasonable shippment
1. Are you manufacturer or trading company?
We are manufacturer for 15 years
2. What is the delivery time?
For standard machine, delivery time is usually 60-70 working days.
3. What is your payment term?
30% TT deposit paid in advance, 70% balance paid before shipping.
4. How can I evaluate your company.
1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.
2-We have CE certificate, and our factory has been inspected by TÜV , SGS, and Bureau Veritas. Please contact us to get the certificate document if you need.
5. How can I get to your factory.
We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
1. Are you manufacturer or trading company?
We are manufacturer for 15 years
2. What is the delivery time?
For standard machine, delivery time is usually 60-70 working days.
3. What is your payment term?
30% TT deposit paid in advance, 70% balance paid before shipping.
4. How can I evaluate your company.
1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.
2-We have CE certificate, and our factory has been inspected by TÜV , SGS, and Bureau Veritas. Please contact us to get the certificate document if you need.
5. How can I get to your factory.
We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
