Ridge Cap Roof Roll Forming Metal Roofing Equipment

Ridge Cap Roof Pannel Roll Forming Machine
  • YD-RT-03


  • 8455229090

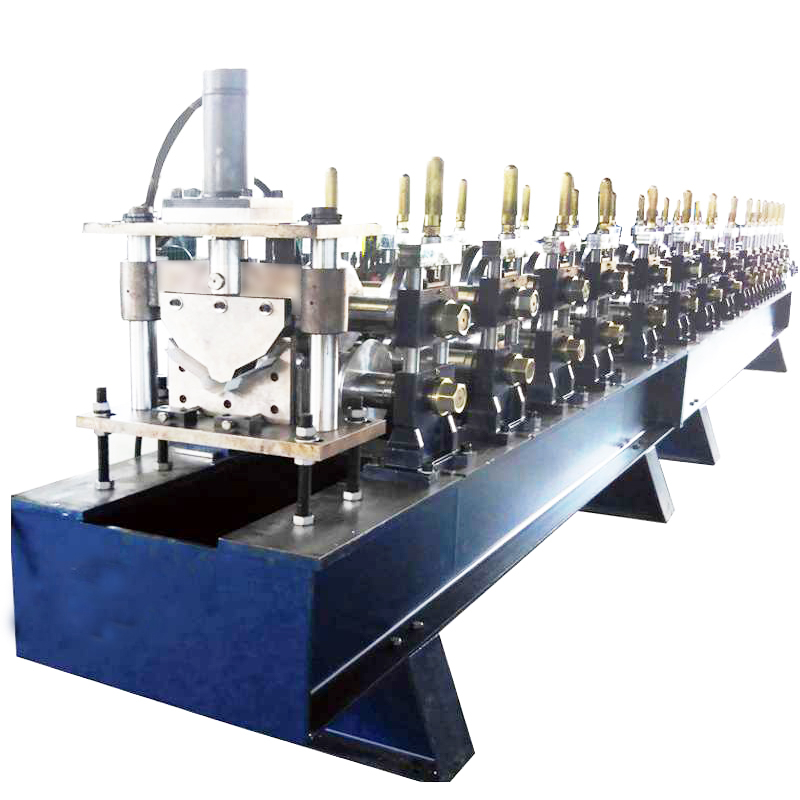

Ridge Cap Roof Roll Forming Metal Roofing Equipment

7 瓦机牌坊-瓦机


The sturcture we use for this machine has the higher duty mechanical behavior;

Metal roofing equipment column stand type, Europe strandard;

成型 屋脊瓦


The rollers processing by twice CNC machining and hard chromed, HRC 58-62;

Shaft diameter is 76mm for standard;

Ridge cap roll forming machine roll forming speed is 15-20m/min;

剪切 屋脊瓦


Cutting blade material CR12 MOV;

Roof roll forming cap, step is available;



1. PLC controller  -- Siemens

2. Transducer -- Yaskawa

3. Encoder -- KOYO

4. Other electronic component- Schneider

Finished Product Thickness 0.3-0.8mm
Material Galvanized/Carbon   Steel Coil
Effective width 200-250mm
Machine Main Specification
Coiler Dimensions for   decoiler 500*800*1000mm
Capacity 3 tons
Mandrel expansion by Manual

Roll forming part Dimensions for   rollformer 6700*700*1500mm
Structure Column
Working Station 14-18 working   stations
Roller Material GCr15,Double   machining
Shaft Diameter 76mm
Driving System Chain driving
Main power 5.5KW
Cutter Material Cr12.Mov.HRC58-62
Power of hydraulic station 4.0KW
Cutting   System Hydraulic

More than 10 year working life

Our machine can steady running at least 10 years.

Based on this situation, you could have stable productivity and avoid from fixing.

More individal service

If you have requrest of your using problem, like running space, operation program language. We can do better.

Better after-sale service

Life long response within 12 hours , while you have question of running machine.

PE film covered of machine surface;

Fix by angle steel and steel rope, to make sure no any displacement happen during the reasonable shippment


1. Are you manufacturer or trading company?

We are manufacturer for 15 years

2. What is the delivery time?

For standard machine, delivery time is usually 60-70 working days.

3. What is your payment term?

30% TT deposit paid in advance, 70% balance paid before shipping.

4. How can I evaluate your company.

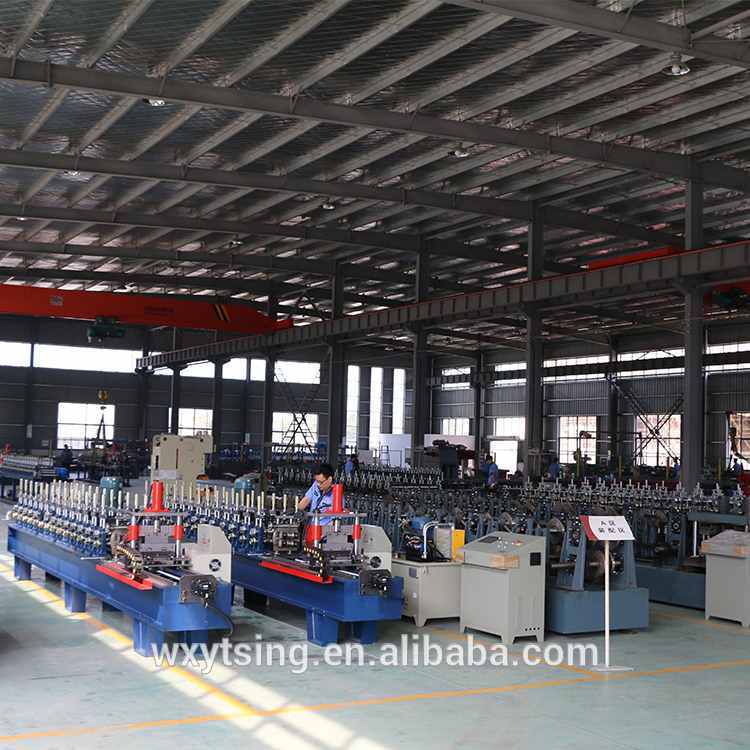

1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.

2-We have CE certificate, and our factory has been inspected by TÜV , SGS,  and Bureau Veritas. Please contact us to get the certificate document if you need.

5. How can I get to your factory.

We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
