Double Layer Roof Panel Roll Forming Machine Full Auto

(1)MAJOR EQUIPMENTS we designed as below:

A - DECOILER                                        HYDRAULIC POWERED DECOILER

B- INFEEDER APPLICATOR                                    TO  INFEED MATERIAL

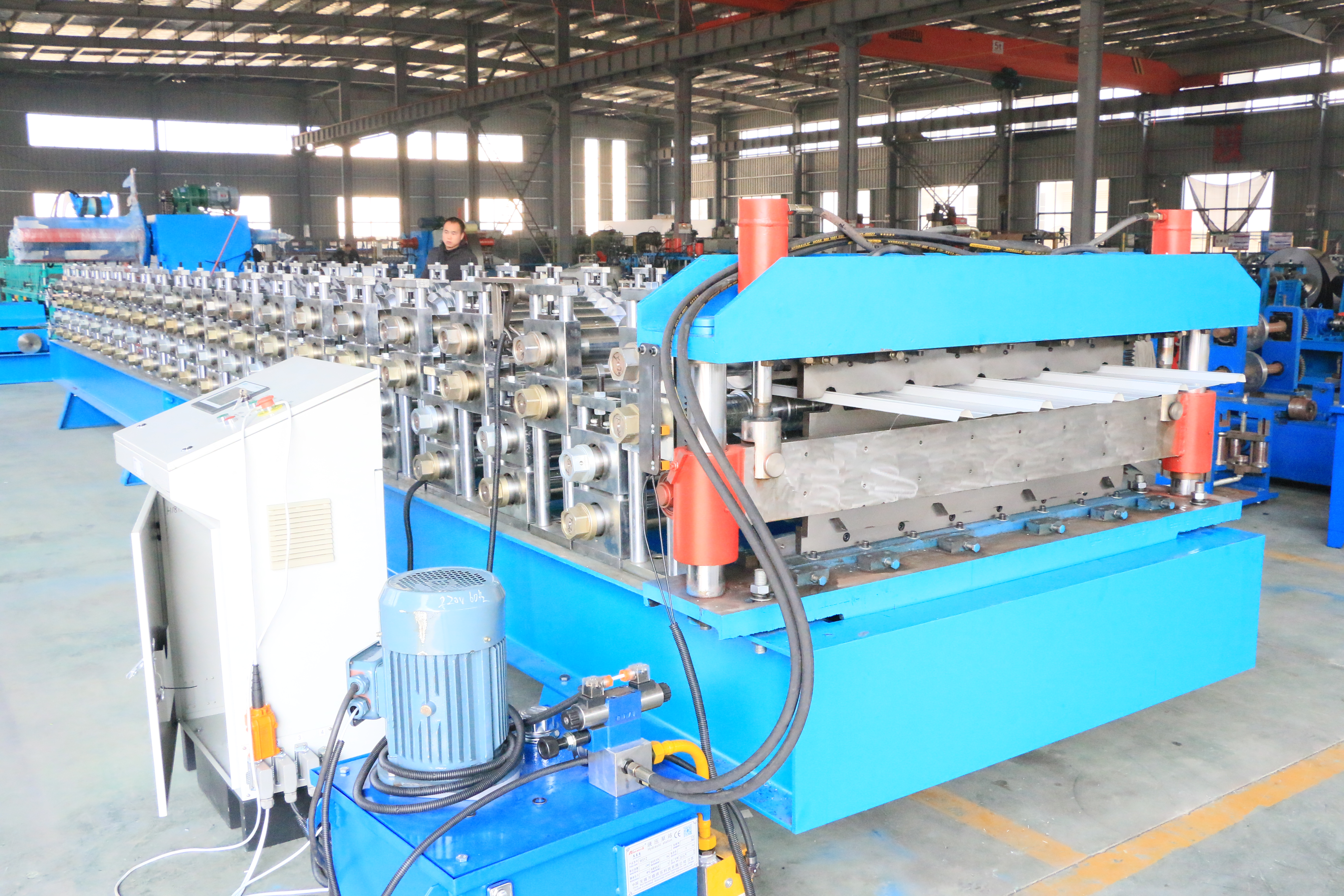

C - ROLL FORMING                     TO ROLL AS PROFILES,DOUBLE LAYER DESIGN

D - HYDRAULIC SHEAR                                       CUT DESIRED LENGTH

E –OUTPUT TABLE                              TO SUPPORT THE FINISHED PRODUCTS

(2) GENERAL SCHEME:

- Productivity:                    WALL /ROOF PANELS AS PER YOUR DRAWING

- Man power required                                      ONE OPERATOR

- Set up Time                                                    20 MIN

- Working hours per day:                                          8 TO 16

- Line Direction                       Left to Right while facing operator panel

- Overall machine length required                                    14.0M

- Overall packing Shipment:                              ONE 40ft container

- Approximate machine height:                                       1.6M

(3)GENERAL SPECIFICATION

Line offered is Designed to process material as below:

(A) Type of material                      Galvanized coils & Pre-painted coils

(B) Max. Width of Coil                                           1200mm

(C) Max. Weight of Coil                                          50000kg

(D) Variable Line Speed                         25-30mtr./min(NOT including cut)

(E) Material Loading/Unloading NSYSTEM                        manually

(F)Accuracy Level                       PROFILE DIMENTION:+/- 0.5 M.M

                                   ANGULAR DIMENTION:+/- 1 DEGREE

                                   END FLAIR(AT CUT END):+/-0.5 M.M

                                  .          CUT LENGTH :+/- 1.0 M.M
