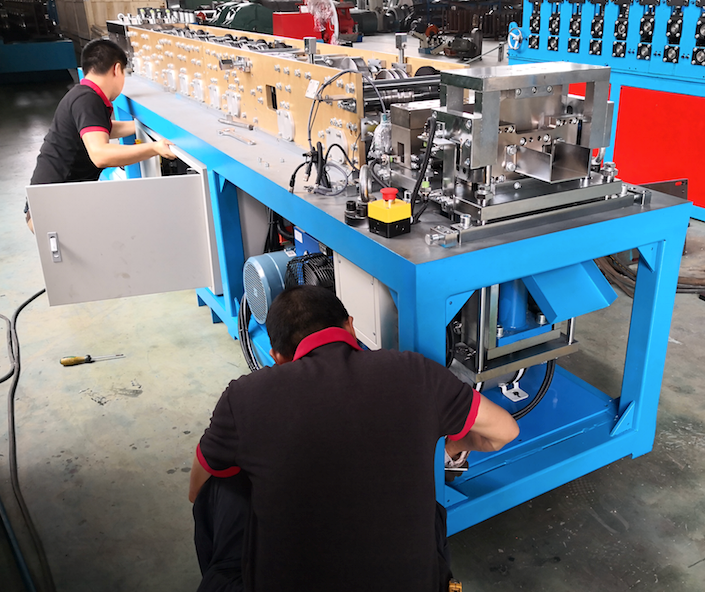

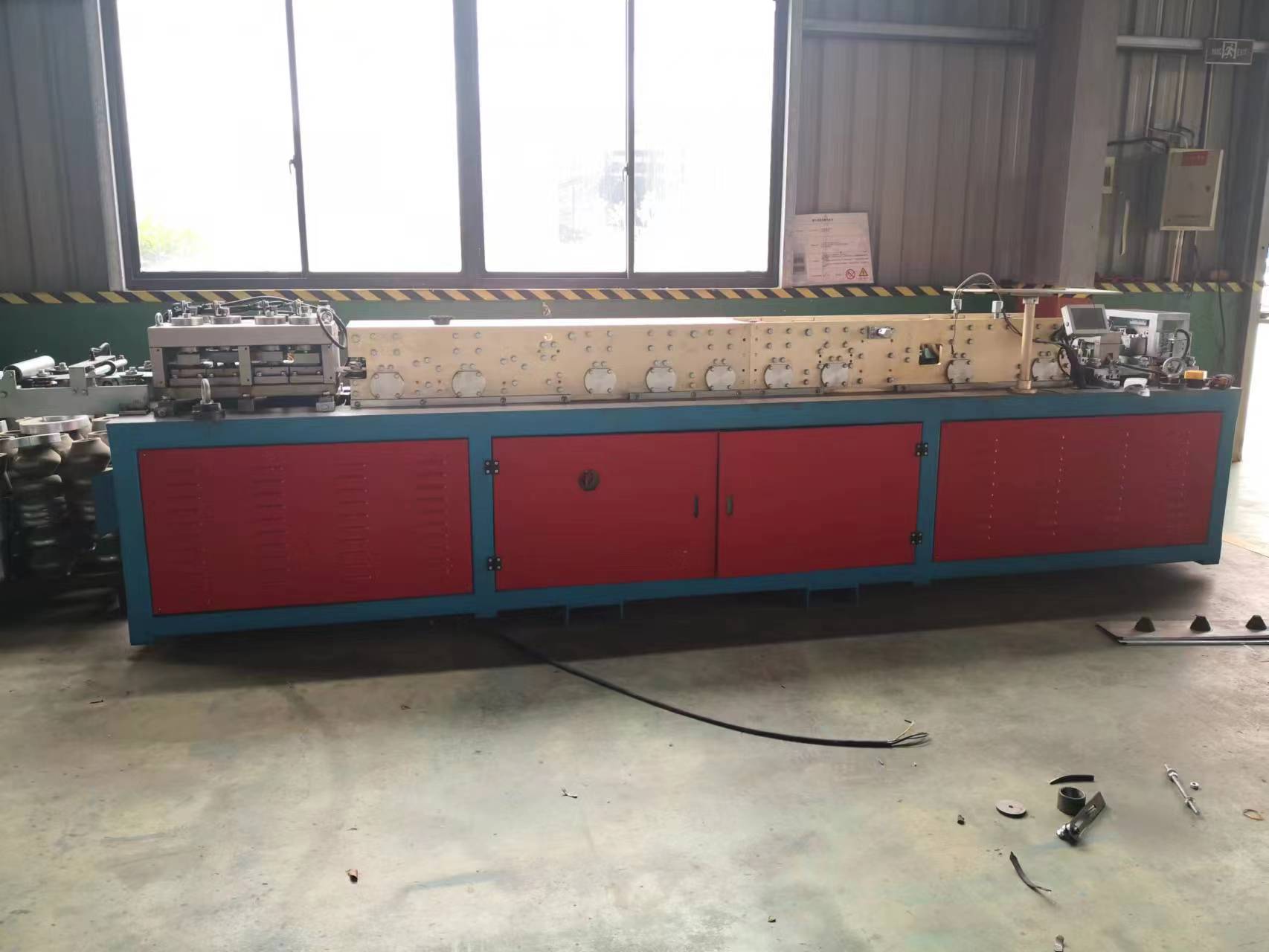

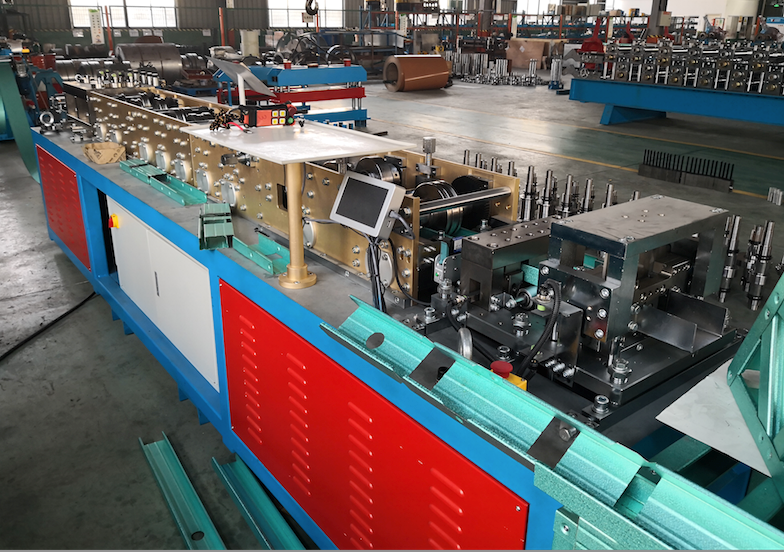

YD-LS-02
YTSING
Availability: | |
---|---|
Mainly technical details:

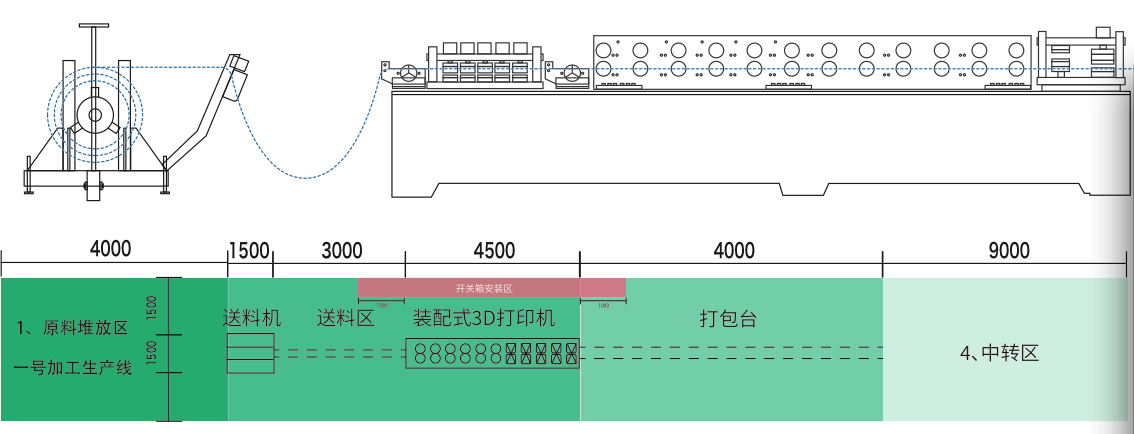

Layouts:
Coil data:
Product sizes:C89x41x5.5
Material type:G300-550 galvanized(G450mpa)
Coil material thickness:0.6-1.2mm
Coil width:around178mm
Main machine whole line component :
1) Main rollforming unit 1 pc
2) Decoiler 1pc
3) Punchin unit 1 pc
4) Hydraulic system 1pc
5) Hydraulic cutting system 1pc
6) Control system 1pc
7) Printer 1pc

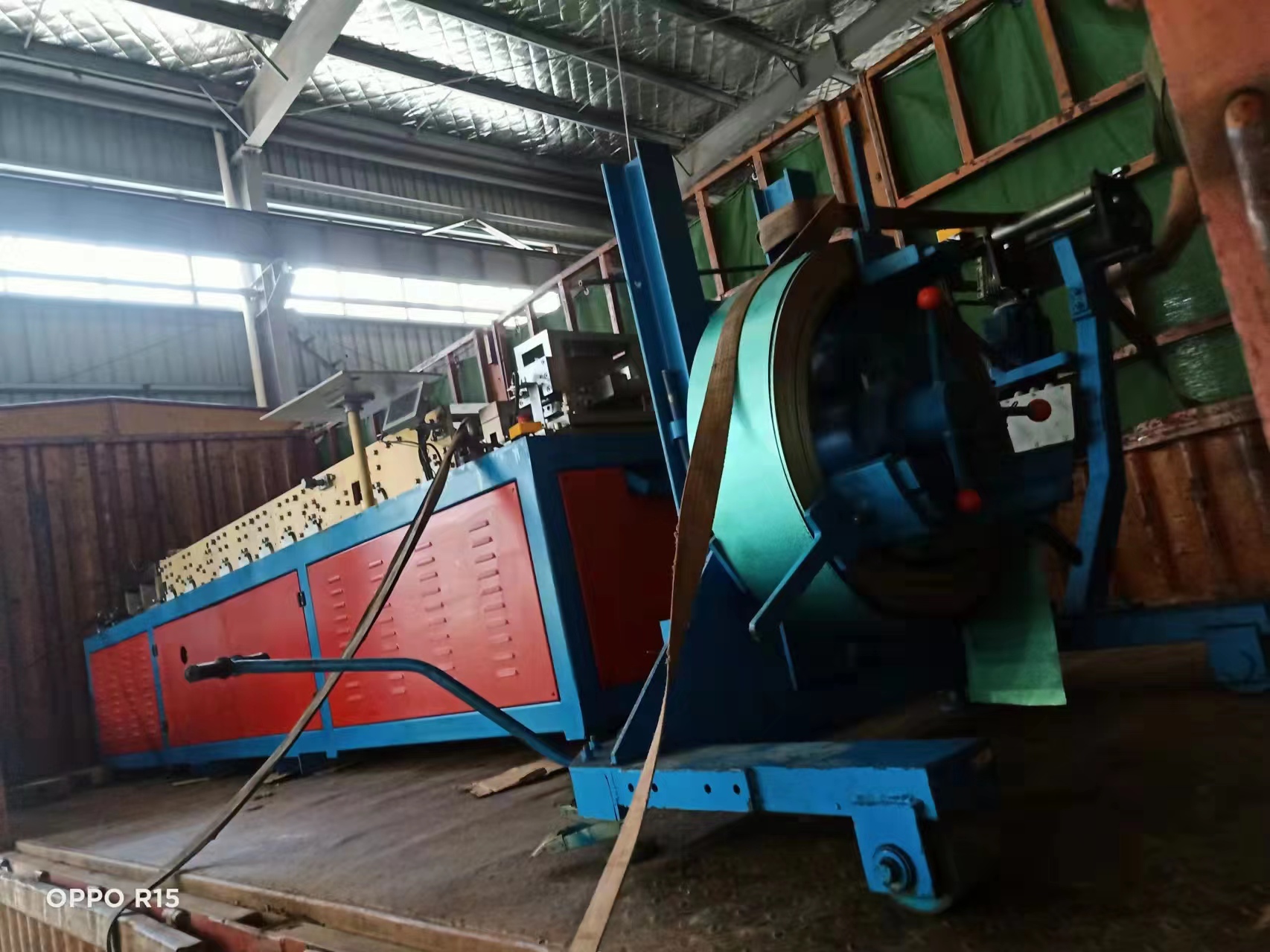

DECOILER
NO. | ITEMS | TECHNICALS | |||
1 | Decoiler type | Moveable with jack unit | |||
2 | Decoiler size | 1600x700x1050mm | |||
3 | Machine color | Blue with red | |||
4 | Main motor | 550w | |||
5 | Diameter | 450-530mm | |||
6 |
Capacity | 1800kgs | |||
PUNCHING UNIT
NO. | ITEMS | TECHNICALS | |||
1 | Punching type | Pre-punch | |||
2 | Punch material | SKD11 | |||
3 | Machining type | CNC Maching centre | |||
4 | Hydraulic power | 7.5kw |
HYDRAULIC SYSTEM
Function: servo drive is used in the main molding power. Due to the advantages of short stopping distance and high length control accuracy, the length of the outboard is precisely controlled
NO. | ITEMS | TECHNICALS | |||
1 | Hydraulic power | 7.5kw | |||
2 | Hydraulic pump | CRRFE | |||
3 4. | Tank Servo power | 160L 5.5KW |
HYDRAULIC CUT
NO. | ITEMS | TECHNICALS | |||
1 | Cutting type | Hydraulic | |||
2 | Cutting material | Cr12mov | |||
3 | Cutting power | 7.5kw |
CONTRAL SYSTEM
Functions: the design parameters are directly transmitted to the control computer through USB interface or network, and the NC control software installed in the computer is imported and the BOM documents are automatically read. After that, the batch of production can be selected
●Control method :PC operating Win8 operating system, built-in huheng control software
●PLC: Panasonic
●Relay: Schneider
●Hydraulic valve: Rexroth, Germany
PRINTER
NO. | ITEMS | TECHNICALS | |||
1 | Printer | Yida | |||
2 | Function | Logo/number/QRcode | |||
3 | Method | Auto-Print |
1 |
Identification system (equipped with two sprinkler heads to identify heads and tails)
| ||
Us mathews printer controller |
Mainly technical details:
Layouts:
Coil data:
Product sizes:C89x41x5.5
Material type:G300-550 galvanized(G450mpa)
Coil material thickness:0.6-1.2mm
Coil width:around178mm
Main machine whole line component :
1) Main rollforming unit 1 pc
2) Decoiler 1pc
3) Punchin unit 1 pc
4) Hydraulic system 1pc
5) Hydraulic cutting system 1pc
6) Control system 1pc
7) Printer 1pc
DECOILER
NO. | ITEMS | TECHNICALS | |||
1 | Decoiler type | Moveable with jack unit | |||
2 | Decoiler size | 1600x700x1050mm | |||
3 | Machine color | Blue with red | |||
4 | Main motor | 550w | |||
5 | Diameter | 450-530mm | |||
6 |
Capacity | 1800kgs | |||
PUNCHING UNIT
NO. | ITEMS | TECHNICALS | |||
1 | Punching type | Pre-punch | |||
2 | Punch material | SKD11 | |||
3 | Machining type | CNC Maching centre | |||
4 | Hydraulic power | 7.5kw |
HYDRAULIC SYSTEM
Function: servo drive is used in the main molding power. Due to the advantages of short stopping distance and high length control accuracy, the length of the outboard is precisely controlled
NO. | ITEMS | TECHNICALS | |||
1 | Hydraulic power | 7.5kw | |||
2 | Hydraulic pump | CRRFE | |||
3 4. | Tank Servo power | 160L 5.5KW |
HYDRAULIC CUT
NO. | ITEMS | TECHNICALS | |||
1 | Cutting type | Hydraulic | |||
2 | Cutting material | Cr12mov | |||
3 | Cutting power | 7.5kw |
CONTRAL SYSTEM
Functions: the design parameters are directly transmitted to the control computer through USB interface or network, and the NC control software installed in the computer is imported and the BOM documents are automatically read. After that, the batch of production can be selected
●Control method :PC operating Win8 operating system, built-in huheng control software
●PLC: Panasonic
●Relay: Schneider
●Hydraulic valve: Rexroth, Germany
PRINTER
NO. | ITEMS | TECHNICALS | |||
1 | Printer | Yida | |||
2 | Function | Logo/number/QRcode | |||
3 | Method | Auto-Print |
1 |
Identification system (equipped with two sprinkler heads to identify heads and tails)
| ||
Us mathews printer controller |
