Automatic Z shaped Roll Forming Machine with Hydraulic Pre-punching

Availability:

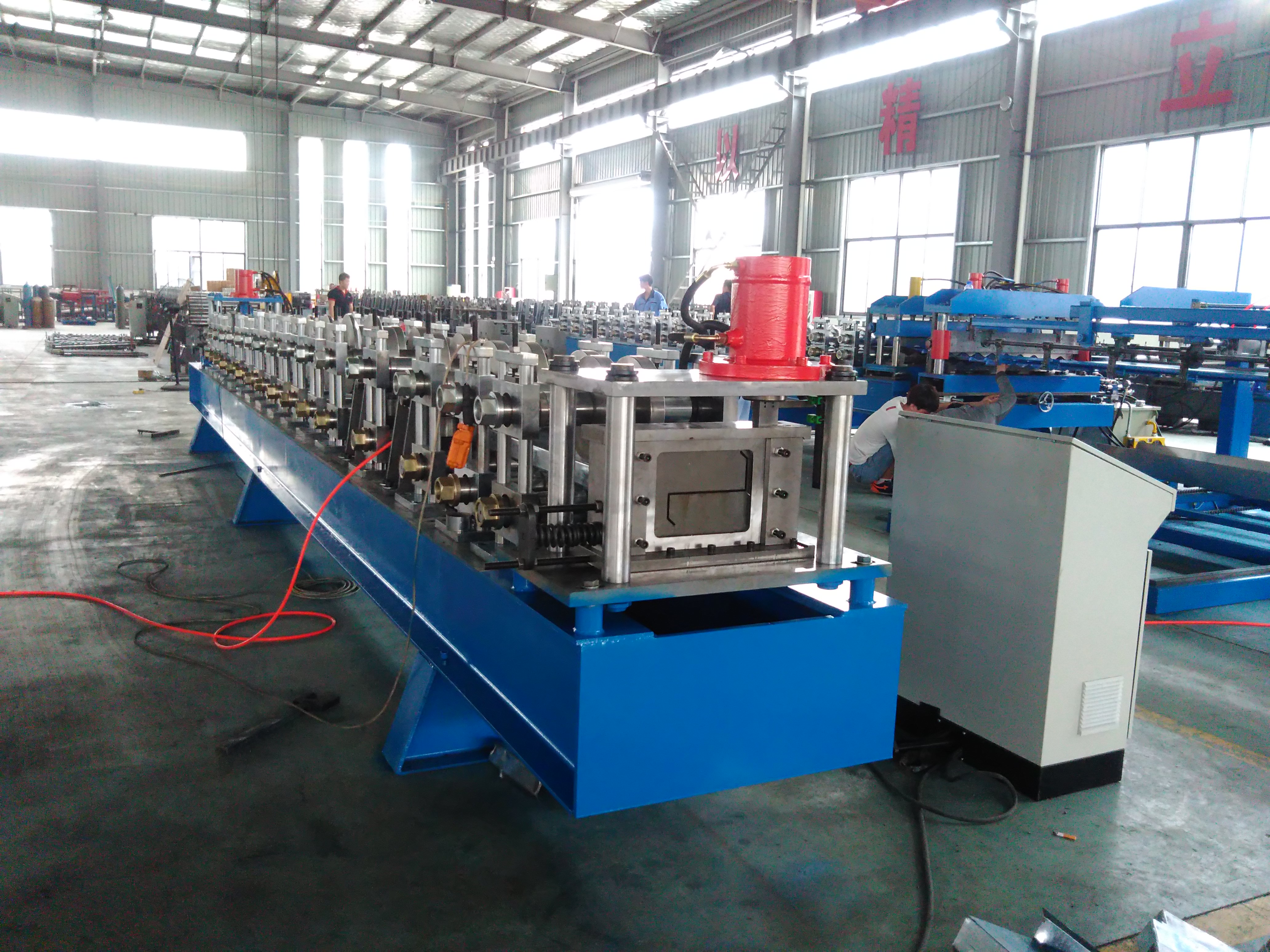

Consist of this production line:


A: Passive Decoiler

B: Hydraulic Punching

C: Feeding Applicator

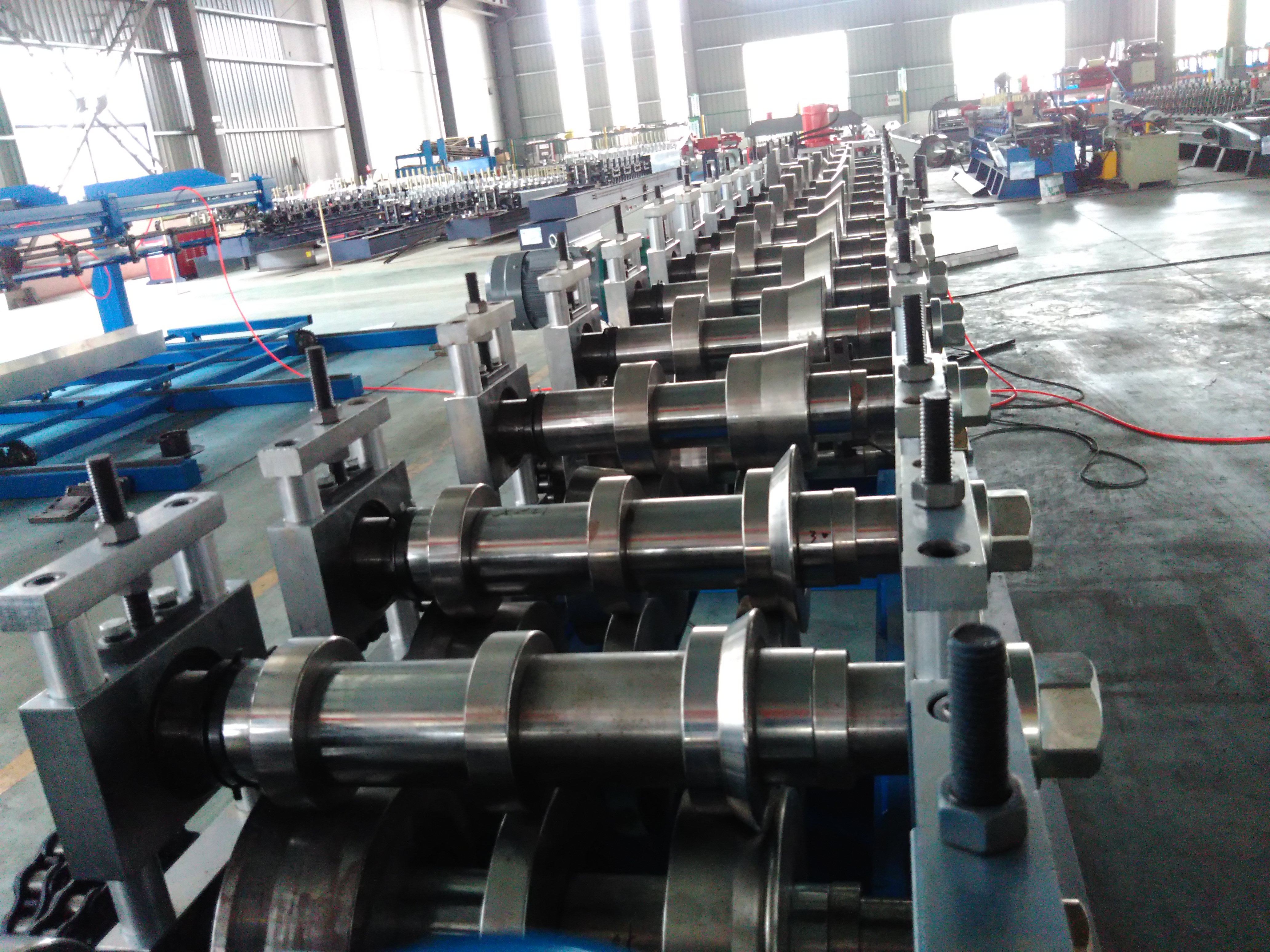

D: Roll Forming machine

E: Hydraulic Cutting

F: Output Table

Detailed specifications of each part:


a.Passive decoiler

Max. width of coil can be loaded

600mm

Mandrel face length

1000mm

Max. weight of coil can be loaded

4 tons

Iner-diameter

480-530 mm

Max.Out diameter

1400mm

Material of shaft

GCr 45 steel

Diameter of shaft

85 mm

b.Hydraulic punching

Material thickness0.9-1.6mm

Hydraulic pressure

20Mpa

Hydraulic power

5.5 K.W

Cutting material

Cr12,quenched 58-62

Cutting system

Hydraulic Die cutting

c.Feeding applicator

Length accuracy in close loop system

+/- 0.5 mm

Surface rust-proof treatment

decorative chromed or black coating

Feeding panel to the guide roller

Adjustable by right and left

Feeding roller

Diameter is 55mm

Material

#45 steel, hard chormed.HRC48-52

d.Roll forming unit

No. of Work Station

16 sets

Max. Roll shafts Dia

75 mm

Required Motor Capacity

11 K.W

Max. Line Speed

20mtr./min(Not including cutting)

Roller material

GCr15 steel ,hard chromed

Transmission

Chain driving

Bearing

HRB

Cages

Use the strong steel nets

Leveling screws on base

With thick metal plates

e.Hydraulic cutting

Hydraulic pressure

20Mpa

Hydraulic power

5.5 K.W

Cutting material

Cr12,quenched 58-62

Cutting system

Hydraulic Die cutting

f.Output table

Specification(L*H)

3000mm*800mm

Tube welded with rollers.

2 output table

Stacking length

According to your demands
