Multiple Sizes Side Panel Corner Panel Forming Edge Wrapping Machine Angle Bar Roll Forming Machine

Availability:

Main technical parameters of the equipment

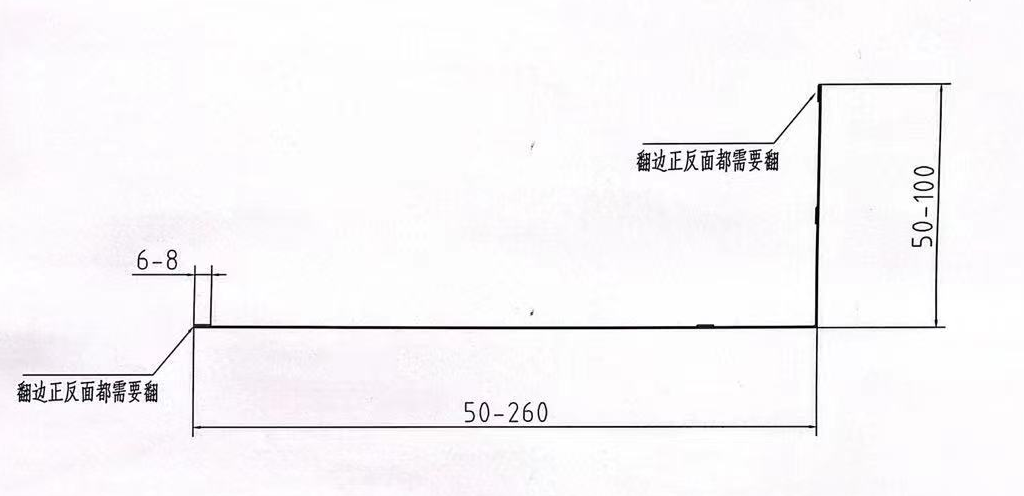

1 rolled product specifications (㎜) : (0.4 ~ 0.71) ×L,

2. Working speed: 12M/min

3. Number of rolls: 16 sets

4.Inside and outside flanging molding mode: CZ structure, the first 6 uses left and right transverse structure (hand        wheel adjustment)

5. The last 10 molding methods: fixed molding, with guide vertical roller device, finally with wave elimination device

6. Roll material: 45 steel

7. Roller outer diameter: minimum roller outer diameter 90mm, maximum roller outer diameter 260mm

8. Diameter of the main shaft: ¢60mm

9. Spindle material: 45 steel

10. Main motor power: 5.5kW

11. Frequency Converter: Yaskawa

12. Transmission mode: chain drive

13. The external dimension of the host: about 10000mm×1000mm×1100mm

14. Equipment frame: wall panel type

15. Electronic components: factory standard
