The production line is highly integrated by decoiler ,leveling,roll forming ,servo tracking cutting device,output table and related process.The whole production line is controlled by PCL program . Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control ,manual control,separate operation and emergency stop.

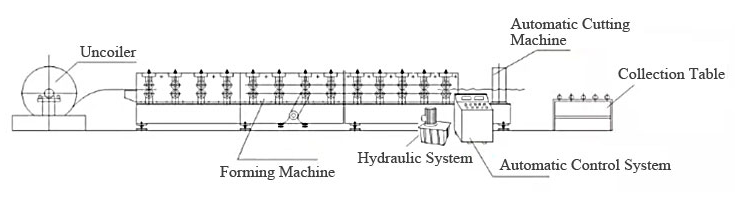

Working process:
| NO | TYPE | SPECIFICATION | |
| 1 | RAW MATERIAL | TYPE | Galvanized steel material |
| Thickness | 0.6-1.0mm | ||
| 2 | DECOILER | Type | Hydraulic decoiler |
| Max Coil width can be loaded | 1300mm | ||
| Max coil weight | 3000kg | ||
| Mandrel face length | 300mm | ||
| Inner diameter of coil | 480-630mm | ||
| Max out diameter | 1800mm | ||
| Material of shaft | GCR45 steel | ||

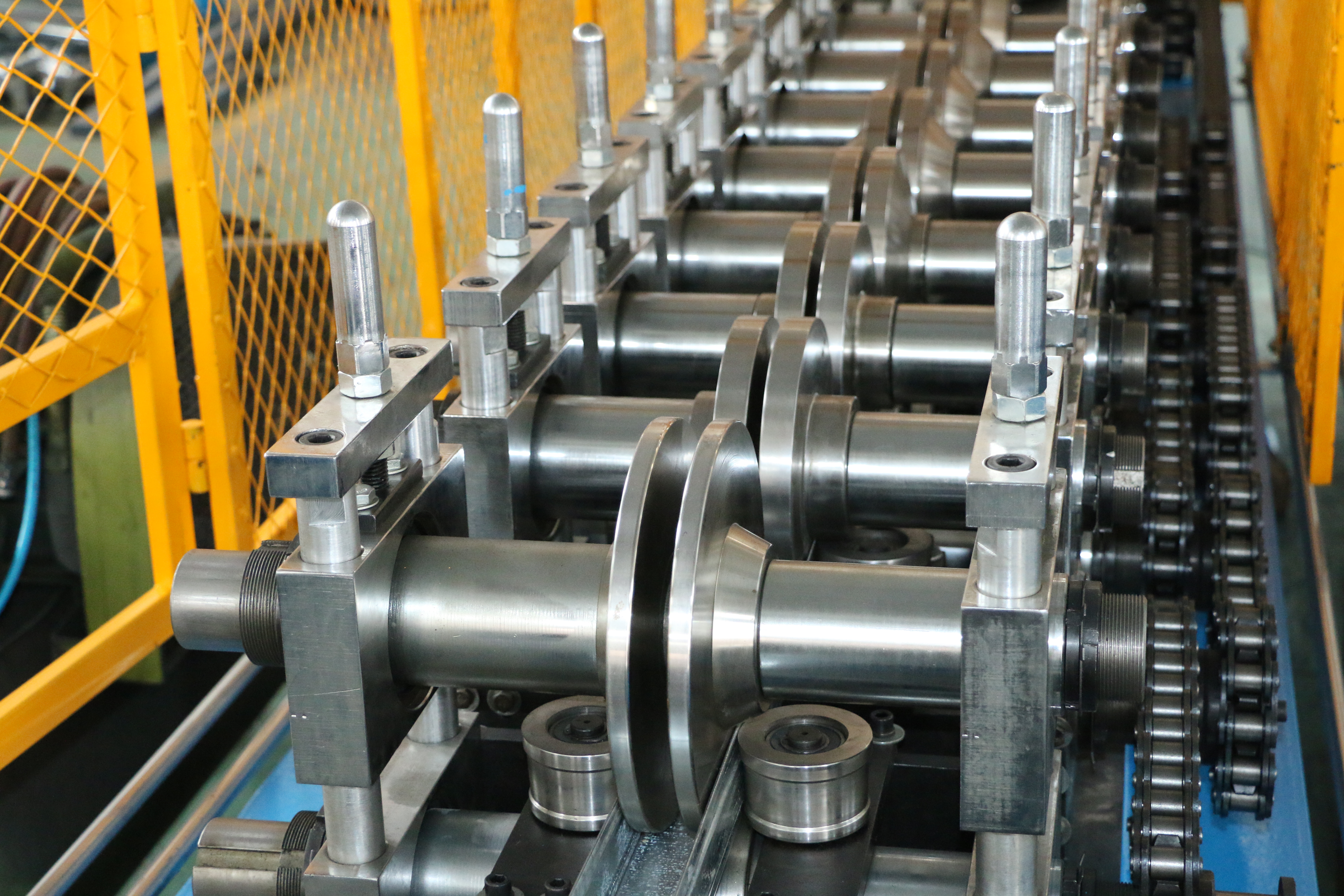

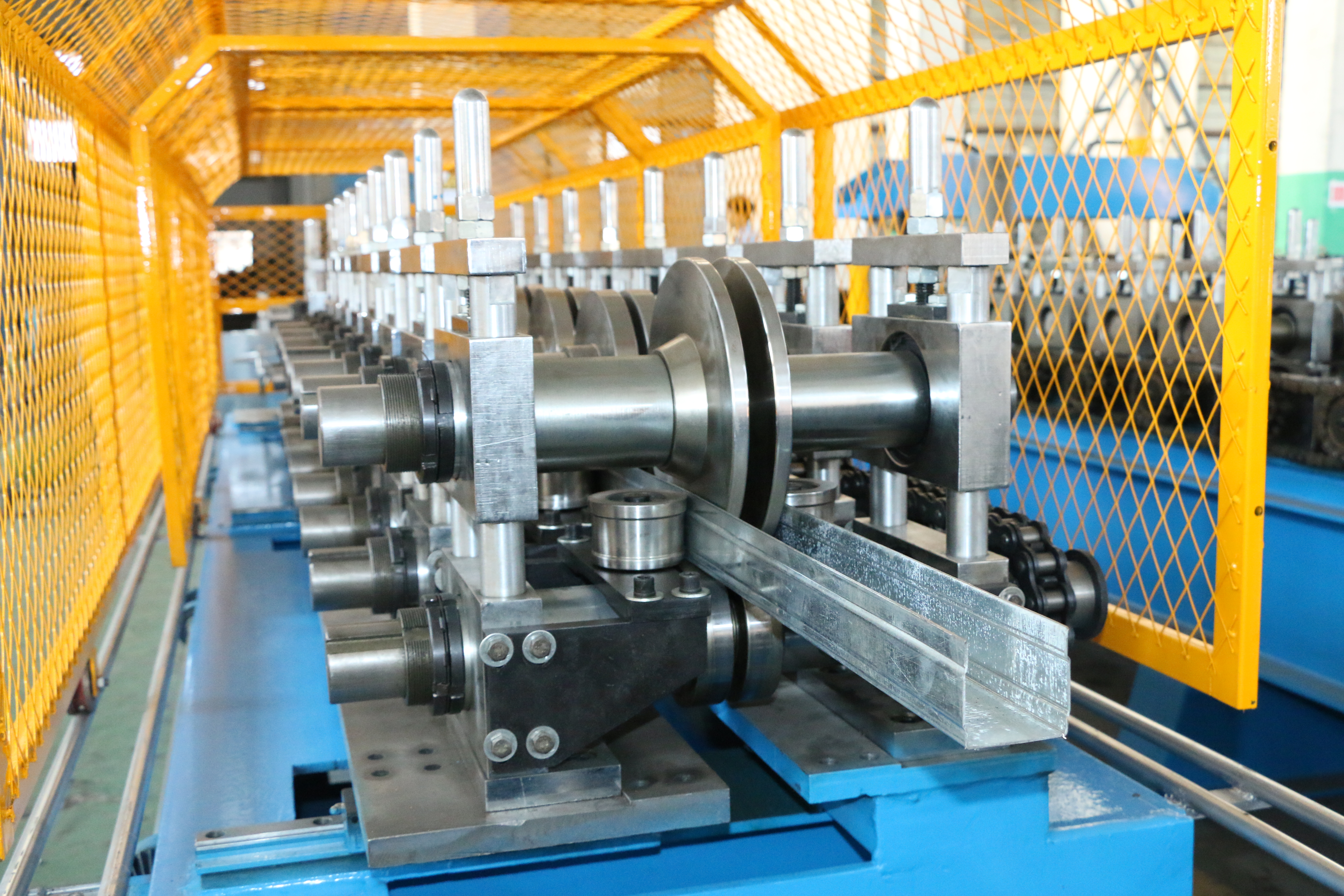

| 3 | ROLL FORMER | Work station | 10-12sets |
| Max. roll shaft diameter | 76mm | ||
| Power | 5.5kw | ||
| Max production speed | 10-15mtr./min | ||
| Transducer | yaskawa | ||
| Structure | Column | ||
| Transmission | chain | ||
| Roller Material | GCR15, CNC lathes, double machining, quenched 58-62 | ||
| 4 | HYDRAULIC CUTTING | Type | Servo tracking hydraulic cutting |
| Power | 3kw | ||
| Cutting mould material | Cr12 MOV, quenched HRC58-62 | ||
| 5 | OUTPUT TABLE | Specification(W*H) | 3000mm*1500mm |
| Stacking length | According to your demands | ||
