YD-RC-001
YTSING
Item | Parameter | |
Material | Thickness | 1.5mm/2.0mm/4.0mm |
Un-powered Decoiler | Coil weight | 3tons |
Diameter shaft | 130mm | |
Material of shaft | Gcr45 steel | |

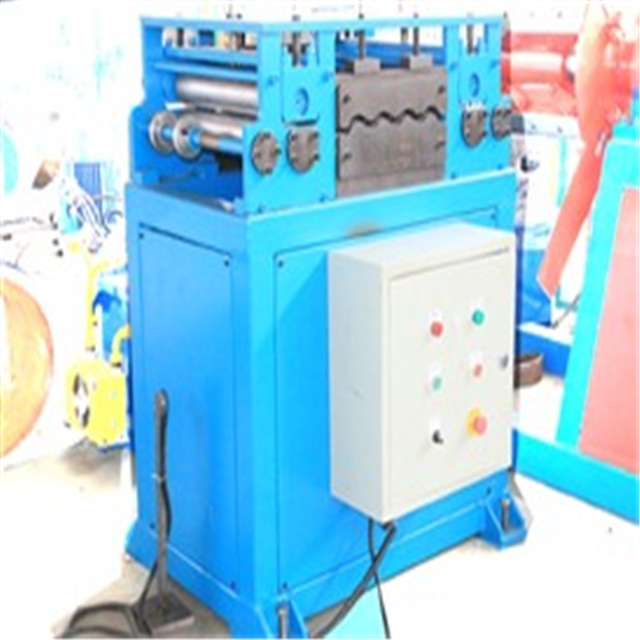

Leveling unit | Working rollers | 7 rollers(3 upper rollers, 4 down rollers) |
Motor power | 2.2KW frequency change control | |
Servo Feeder | Motor Power | 1.8kw |

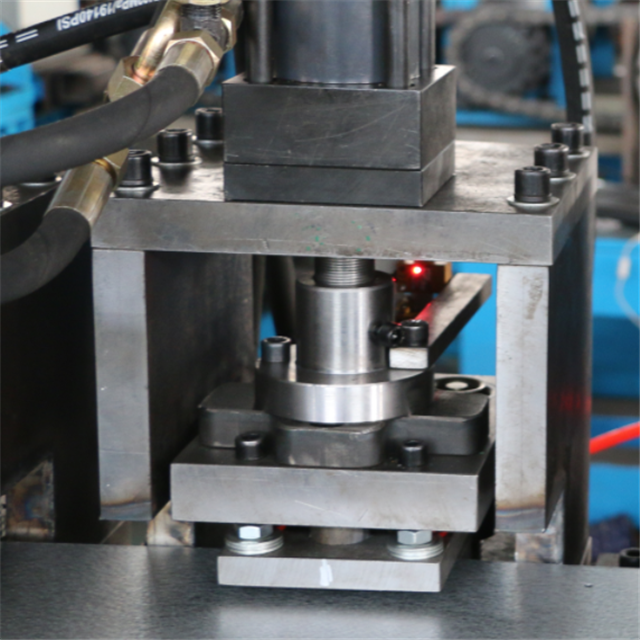

Hydraulic Punching | Motor power | 7.5kw |
Mold material | Cr12mov steel with quenched treated 60-62℃; | |

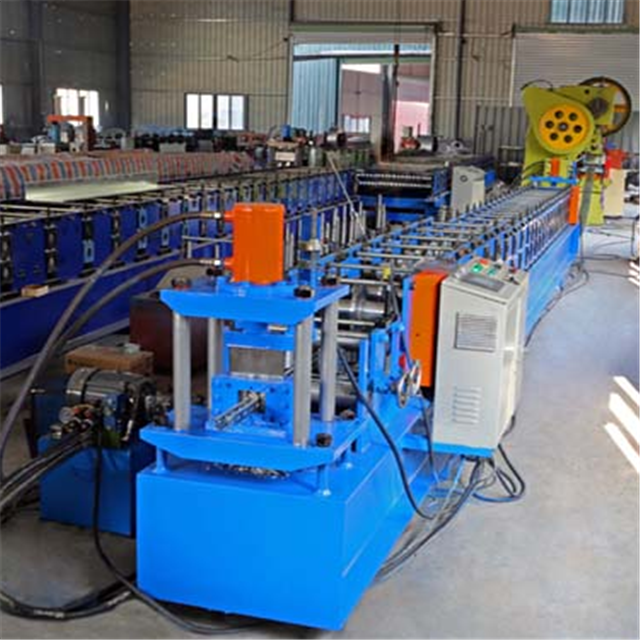

Forming stand | Station | 12stations |
Shaft Material | 45# steel 100mm diameter | |
Frame body | 350H 20mm side plate thickness | |
Roller materail | 45# steel with chrome | |
Main motor | 18.5kw | |
Forming speed | 0-15m/min | |
Voltage | 380v,50hz,3ph | |
Transport | Chain driving | |
Hydraulic Cutting | Material | Blade and mold material: Cr12mov steel with quenched treated 60-62℃ |
Motor power | 4.0kw | |
Hydraulic oil pump | Motor | 5.5kw hydraulic oil pump |
Screen | 5.7inch Siemens Touch Screen | |
PLC and frequency conversion | Siemens PLC,Yasakaw Frequency Changer | |
Other electronic components | Schneider | |
Use | 1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved. 3)Error is easy to adjusted. | |
Language | English and Chinese | |
Product | Length | Based on requirements |
