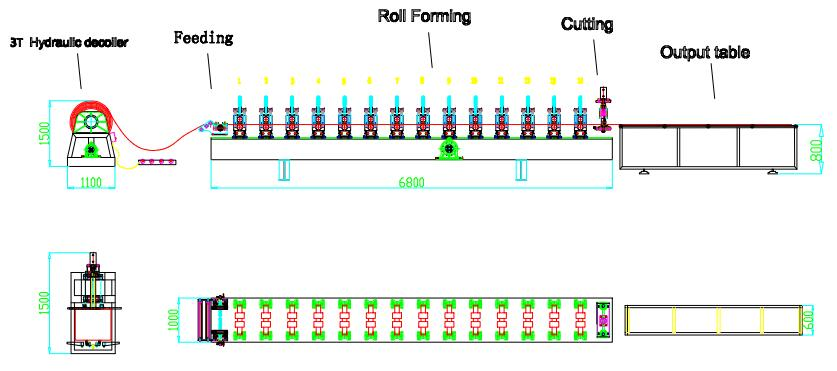

GENERAL SCHEME OF THE MACHINE:
Consist of production line:
A: Passive Decoiler |
B: Feeding Applicator |
C: Roll Forming Unit |
D: Cutting System |
E: Output Table |
DETAILED SPECIFICATION OF EACH PART:
A.Passive decoiler
Max. width of coil can be loaded | 300mm |
Mandrel face length | 500mm |
Max. weight of coil can be loaded | 3tons |
Iner-diameter | 460-530 mm |
Max.Out diameter | 1600mm |
Diameter of shaft | 80mm |
B.Feeding applicator
Length accuracy in close loop system | +/- 0.5 mm |
Feeding panel to the guide roller | Adjustable by right and left |
Feeding roller | Diameter is 55mm |
Material | #45 steel, hard chromed HRC48-52 |
Surface anti-rust treatment | Chromed |

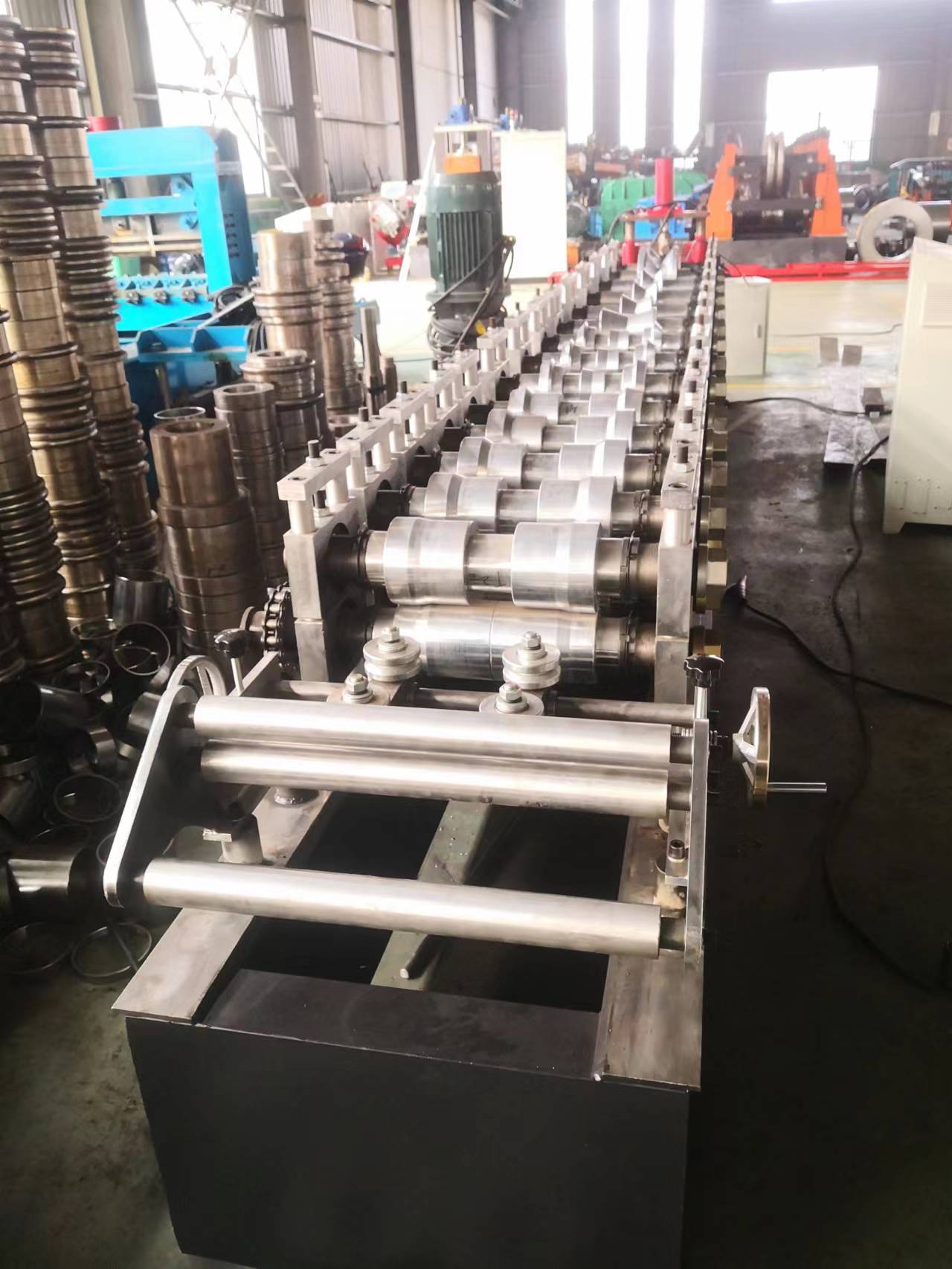

C.Roll Forming Part
No. of Work Station | 14 Sets |
Max. Roll Shafts Dia | 75mm |
Required Motor Capacity | 5.5K.W |
Max. Line Speed | 20m/min (not including cutting) |
Roller Material | GCr15 CNC double machining, quenched |
Transmission | Chain driving |
Bearings | National brand |
Cages | Use the strong steel nets |
Leveling screws on base | With thick metal plates |
D.Hydraulic cutting
Hydraulic pressure | 16Mpa |
Power | 3.0 KW |
Cutting mould material | Cr12 MOV, quenched HRC58-62 |
GENERAL SCHEME OF THE MACHINE:
Consist of production line:
A: Passive Decoiler |
B: Feeding Applicator |
C: Roll Forming Unit |
D: Cutting System |
E: Output Table |
DETAILED SPECIFICATION OF EACH PART:
A.Passive decoiler
Max. width of coil can be loaded | 300mm |
Mandrel face length | 500mm |
Max. weight of coil can be loaded | 3tons |
Iner-diameter | 460-530 mm |
Max.Out diameter | 1600mm |
Diameter of shaft | 80mm |
B.Feeding applicator
Length accuracy in close loop system | +/- 0.5 mm |
Feeding panel to the guide roller | Adjustable by right and left |
Feeding roller | Diameter is 55mm |
Material | #45 steel, hard chromed HRC48-52 |
Surface anti-rust treatment | Chromed |
C.Roll Forming Part
No. of Work Station | 14 Sets |
Max. Roll Shafts Dia | 75mm |
Required Motor Capacity | 5.5K.W |
Max. Line Speed | 20m/min (not including cutting) |
Roller Material | GCr15 CNC double machining, quenched |
Transmission | Chain driving |
Bearings | National brand |
Cages | Use the strong steel nets |
Leveling screws on base | With thick metal plates |
D.Hydraulic cutting
Hydraulic pressure | 16Mpa |
Power | 3.0 KW |
Cutting mould material | Cr12 MOV, quenched HRC58-62 |
