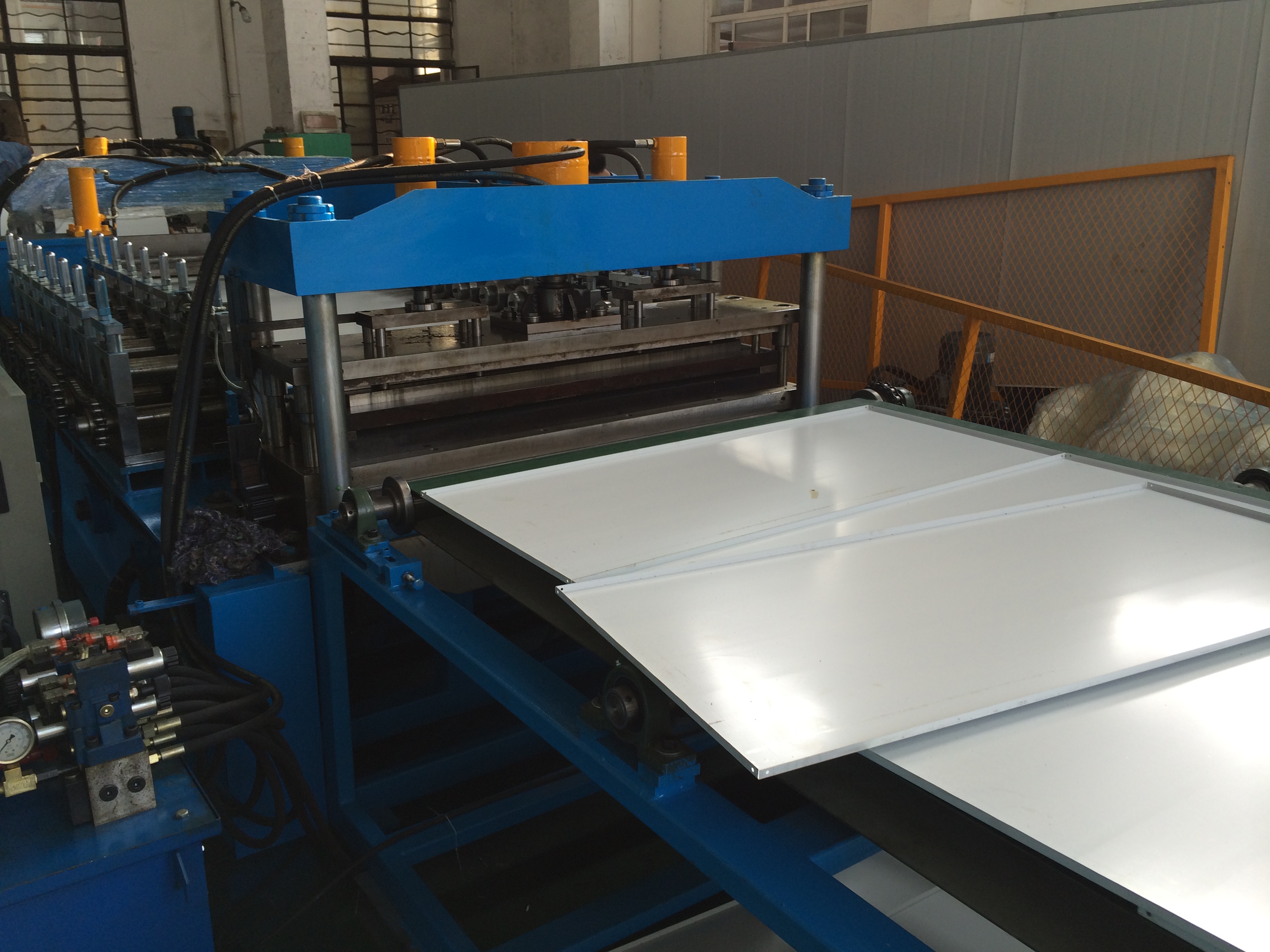

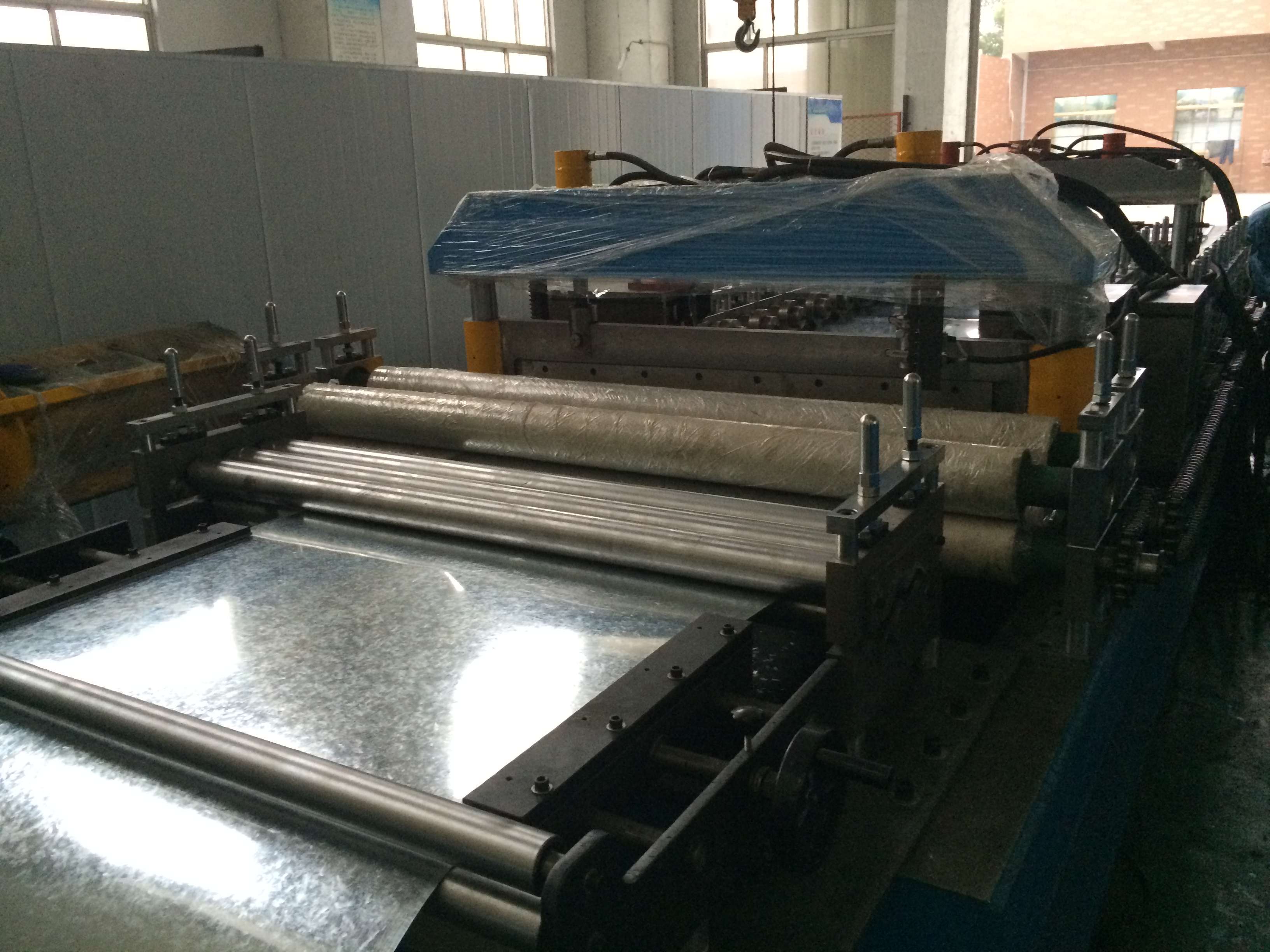

ROLL FORMING LINE ( AUTOMATICALLY /MANUAL TO ADJUST THE WIDTH)
220MM/460MM/750MM/900MM/1000MM/1200MM ( SIZES ARE CUSTOMIZED)
TECHNICAL DATA
--------------
- No. of Work Station.................................................................................................8Sets
- Thickness of sheet...................................................................................0.4 TO 0.8mm
- Roll shafts Dia.......................................................................................................76mm
- Line Speed.......................................................................................................0-8mtr./min
- Required Motor Capacity........................................................5.5K.W (SERVO MOTOR)
- Roller material: .............................................GCR15,double machining,quenched 58-62
- Transducer:.........................................................................................................Panasonic
- Transmission:....................................................................................................chain drive
- Bearings:....................................................................................................National brand
- Cages...........................................................................................use the strong steel nets
- Leveling screws on base ..............................................................with Thick metal plates
- Minimum shelve length ...........................................................................around 220mm
- Maximum shelve length.........................................................depend on your requirement
ROLL FORMING LINE ( AUTOMATICALLY /MANUAL TO ADJUST THE WIDTH)
220MM/460MM/750MM/900MM/1000MM/1200MM ( SIZES ARE CUSTOMIZED)
TECHNICAL DATA
--------------
- No. of Work Station.................................................................................................8Sets
- Thickness of sheet...................................................................................0.4 TO 0.8mm
- Roll shafts Dia.......................................................................................................76mm
- Line Speed.......................................................................................................0-8mtr./min
- Required Motor Capacity........................................................5.5K.W (SERVO MOTOR)
- Roller material: .............................................GCR15,double machining,quenched 58-62
- Transducer:.........................................................................................................Panasonic
- Transmission:....................................................................................................chain drive
- Bearings:....................................................................................................National brand
- Cages...........................................................................................use the strong steel nets
- Leveling screws on base ..............................................................with Thick metal plates
- Minimum shelve length ...........................................................................around 220mm
- Maximum shelve length.........................................................depend on your requirement
