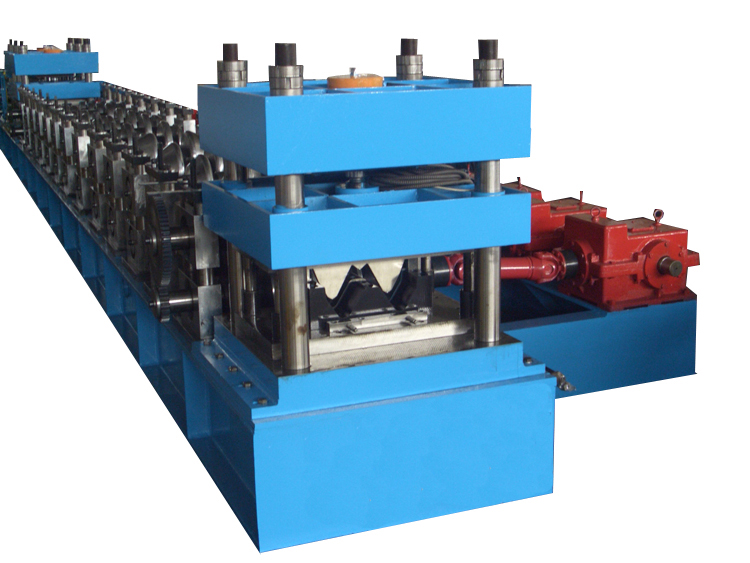

Highway guard rail roll forming machine

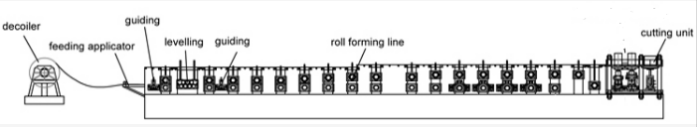

Machinery working flow:

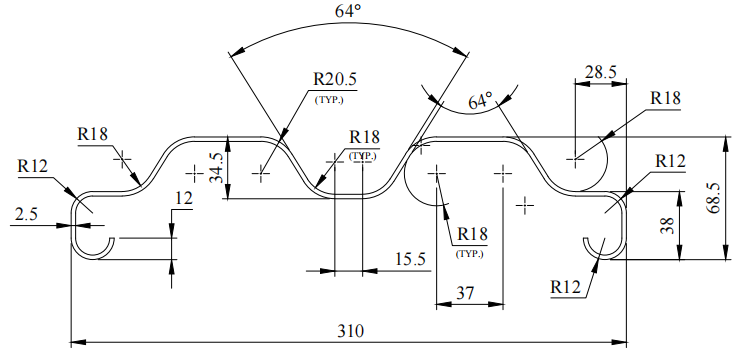

Profile drawing:
| Parameter | ||
| Finished Product | Thickness | 1.7-2.5mm |
| Material | Galvanized steel | |
| Effective width | 300MM | |
| Machine Main Specification | ||
| Decoiler | Rotary type of decoiler | Passive |
| Capacity | 5 tons | |
| Mandrel expansion by | manual | |
| Leveling unit | Roller amount | 9 (4 top/ 5 bottom) |
Roller materia | GCr15 | |
Treatmen | Hard chromed, HRC58-62 | |
Max. shaft diameter | 76mm | |
| Roll forming part | Dimensions for rollformer | 12000*1800*1500mm |
| Structure | Column | |
| Working Station | 26 working stations | |
| Roller Material | GCr15 | |
| Shaft Diameter | 90mm | |
| Driving System | Gearbox driving | |
| Main power | 15KW*2 | |
| Cutter Material | mould blade | |
| Power of hydraulic station | 5.5KW | |
| Cutting System | Hydraulic stop cutting | |
