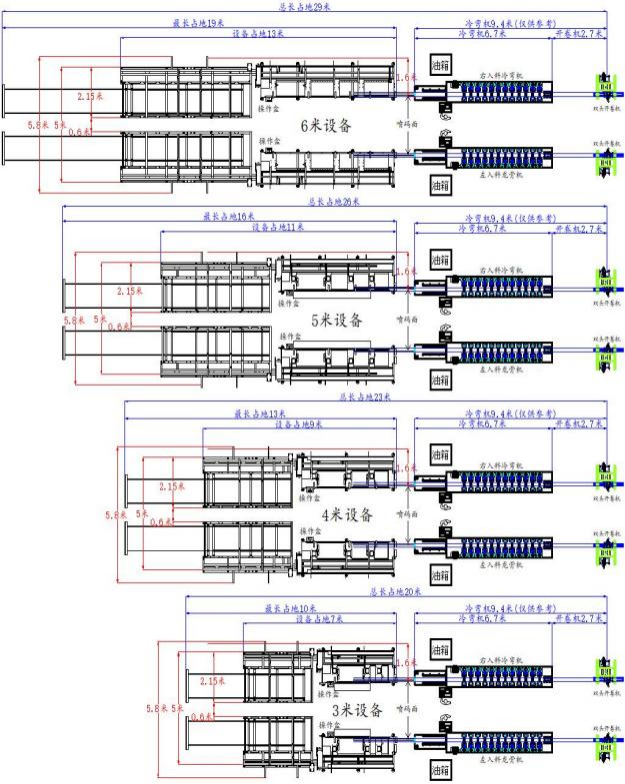

Device footprint view
Main components and parameters:

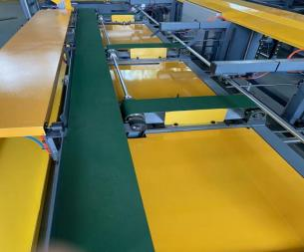

①Front feed buckle part
Name | Specification |
Frame body | 60x60x3 welded square pipe |
Conveyor belt | All use thickened non-slip conveyor belt |
Feed sideways push | All use SC cylinder with rubber soft head,effectively prevent keel scratches |
Clasp plate | Laser cutting proceeding |
Transmission shaft | Use 30mm diameter 45# steel，chrome proceed on surface |
Slide rail | All use precision square rails |
Lifting screw | 2525 ball screw |
Storing lifting | Servo motor |
Push material | Servo motor for power,for better flexibility and chain drive |

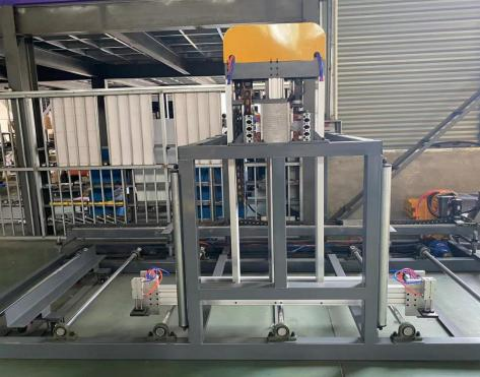

②Winding part
Name | Specification |
Frame body | 25mm iron plates are digitally cut |
Belt rotating power | Servo motor and rotary support gear drive |
Belt retaining shaft | With rotary bearing rotation,spring compression elastic adjustable |
Winding clamp | Use double rod cylinder is adopted to prevent rotation and make the package more square |
③Material stripping part
Name | Specification |
Frame body | 80x80x3 welded square pipe |
Move power | Servo motor matching reducer and rack pinion drive |
Slide rail | Use 45# steel,high frequency heat treatment surface processing,matching sliding block,square guide rail more stable |
Pull material clamping | Use double rod cylinder and air pressure can be adjusted separately,according to the thickness of the material to adjust the gas pressure,prevent keel deformation |
④Labeling
Name | Specification |
Positioning system | Optical fiber detection,manual adjustment,flexible operation,accurate positioning |
Power | High power speed regulating motor,stable operation |
Remove label | Use vacuum sucker,easy to operate,stable performance |
Paper plate | Adjustable paper plate,adjustable screw according to the actual demand,simple and convenient |
⑤ Stacking part
Name | Specification |
Frame body | 80x80x3 welded square pipe |
Manipulator body | It is assembled by thickened heavy aluminum profile |
Manipulator | Use taking material clamping type,in order to ensure the grasping firmness and moving stability |
Stack moving roller | Use 45# steel,chrome proceed on surface,φ45 mm solid |
Discharge rotation ruler roller | In order to ensure each stack of keel square and movement of the keel doesn’t scratch the selection of the circular ruler roll and is equipped with a rotating bearing inside |
