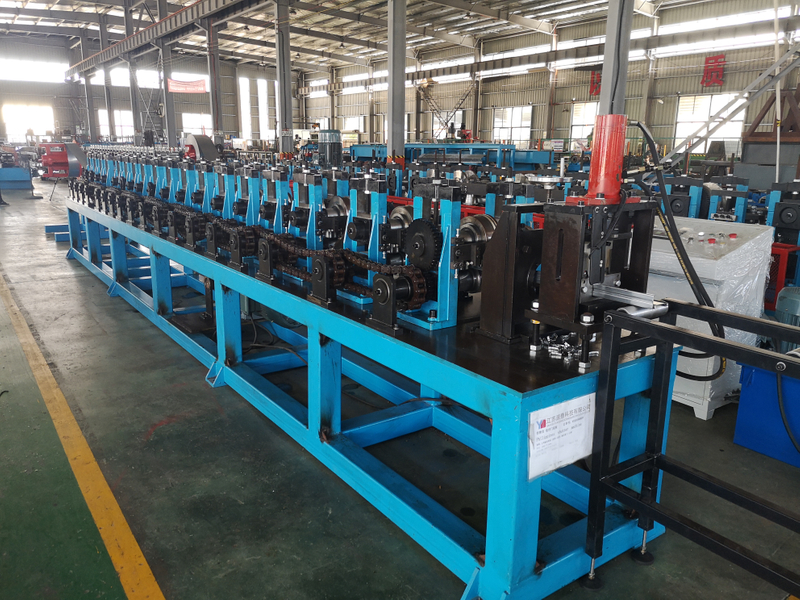

Special Shape Customized Shutter Slat Roll Forming Machine

Material

Thickness

1.2mm-1.7mm

Un-powered Decoiler

Coil weight

3tons

Diameter shaft

130mm

Material of shaft

Gcr45 steel

Forming stand

Station

20stations

Shaft Material

45# steel 65mm diameter

Frame body

350H

Roller materail

45# steel quenching and tempering treatment

Main motor

11kw

Forming speed

10-15m/min(excluding punching and cutting)

Voltage

380v,50hz,3ph

Transport

Chain driving

Stop to saw cutting

Material

Blade and mold material: Cr12mov steel with quenched

treated 60-62℃

Motor power

4.0kw

Others

Screen

5.7inch MCGS Touch Screen

PLC and frequency

conversion

Siemens PLC,Yasakaw Frequency Changer

Other electronic components

Schneider

Use

1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.

3)Error is easy to adjusted.

Language

English and Chinese

Product

Length

Based on requirements

Length tolerance

+-1mm
