Z Purlin Purline Roll Forming Machine Full Automatically Adjustable Width and Height 1mm-3mm Thickness

1.Suitable Coil Thickness:1.0mm-3.0mm

2.Material: cold rolled sheet

3.Coil width /feeding width :based on profile drawing

1)5T passive decoiler :1set

2) leveling+Roll forming unit : 1set

3)Hydraulic punching and shearing  1set.

4)PLC Control :1 set

5)Discharge Table:1 set

6)Spare parts:Easy damaged parts: conk 2 pcs, fuse-link 4 pcs ,Rubber mat 1 pcs;Bolt spanner 1 pcs

7)Hydraulic Station: 1 set

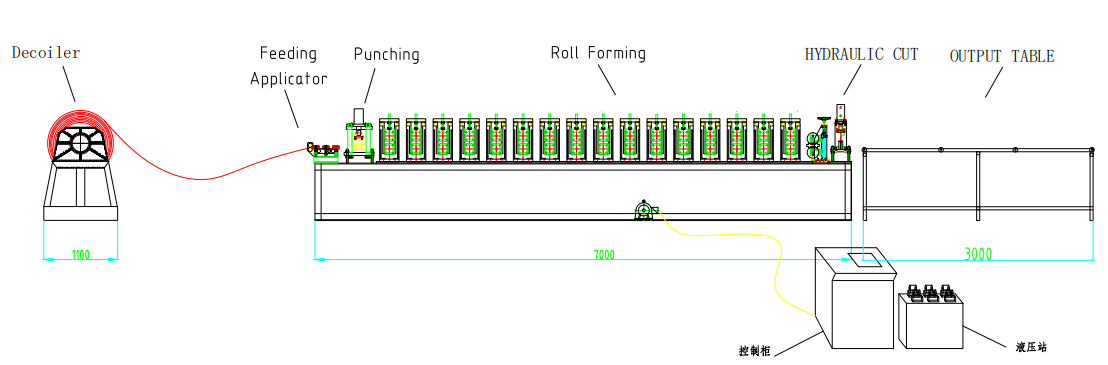

Decoiler --Levelling unit+Roll forming unit--Hydraulic punching+cutting --discharge table(output table)
