Total power required | 32 kw |
| Working Station | 18 sets |
| Max.shaft diameter | 76mm |
| Motor power | 7.5KW |
Dimensions (L*W*H) | 6.5m*1.5m*1.6m |
Overall packing s hipment | Total 1X40gp container |
Working hours per day | 8 to 16 hours |
Set up t ime | 20 mins |
Line d irection | Left to right while facing operator panel |
Machine frame | H-BEAM frame |
Variable line speed | 10-15m/min |
Material loading system | Automatic |

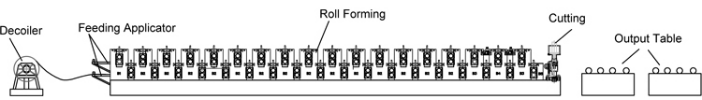

MAJOR EQUIPMENTS we designed as below:
A - DECOILER.....................................................................HYDRAULIC ACTIVE DECOILER
B- INFEEDER APPLICATOR.........................................TO GUIDE MATERIAL
C- ROLL FORMING UNIT............................TO ROLLING THE DRAWING PROFILE
D-CUTTING SYSTEM...................................HYDRAULIC AUTOMATICALLY CUT TO LENGTH
E- OUTPUT TABLE...... ......................SUPPORT THE FINISHED PRODUCTS
Total power required | 32 kw |
| Working Station | 18 sets |
| Max.shaft diameter | 76mm |
| Motor power | 7.5KW |
Dimensions (L*W*H) | 6.5m*1.5m*1.6m |
Overall packing s hipment | Total 1X40gp container |
Working hours per day | 8 to 16 hours |
Set up t ime | 20 mins |
Line d irection | Left to right while facing operator panel |
Machine frame | H-BEAM frame |
Variable line speed | 10-15m/min |
Material loading system | Automatic |
MAJOR EQUIPMENTS we designed as below:
A - DECOILER.....................................................................HYDRAULIC ACTIVE DECOILER
B- INFEEDER APPLICATOR.........................................TO GUIDE MATERIAL
C- ROLL FORMING UNIT............................TO ROLLING THE DRAWING PROFILE
D-CUTTING SYSTEM...................................HYDRAULIC AUTOMATICALLY CUT TO LENGTH
E- OUTPUT TABLE...... ......................SUPPORT THE FINISHED PRODUCTS
