Carriage floors roll forming machine with high strength steel

Carriage floors roll forming machine with high strength steel ,thickness:1.2mm/ matarial strength:900Mpa

  • YD-CF-02

  • YTSING

Availability:
Inquire Add to Basket

Carriage floors roll forming machine with high strength steel ,thickness:1.2mm/ matarial strength:900Mpa

Parameter
Finished Product Thickness 1.2mm
Material STEEL
Coil width 1250MM
Machine Main Specification
Coiler Dimensions for   decoiler 1000*1800*1800mm
Capacity 10tons
Mandrel expansion by Hydraulic


Roll forming part Dimensions for   rollformer 15000*3000*1500mm
Structure Column
Working Station 42 working stations
Roller Material Cr12.Mov.HRC58-62
Shaft Diameter 85mm
Driving System CHAIN driving
Main power 22KW*4
Cutter Material Cr12.Mov.HRC58-62
Power of hydraulic station 5.5KW
Cutting  System Hydraulic

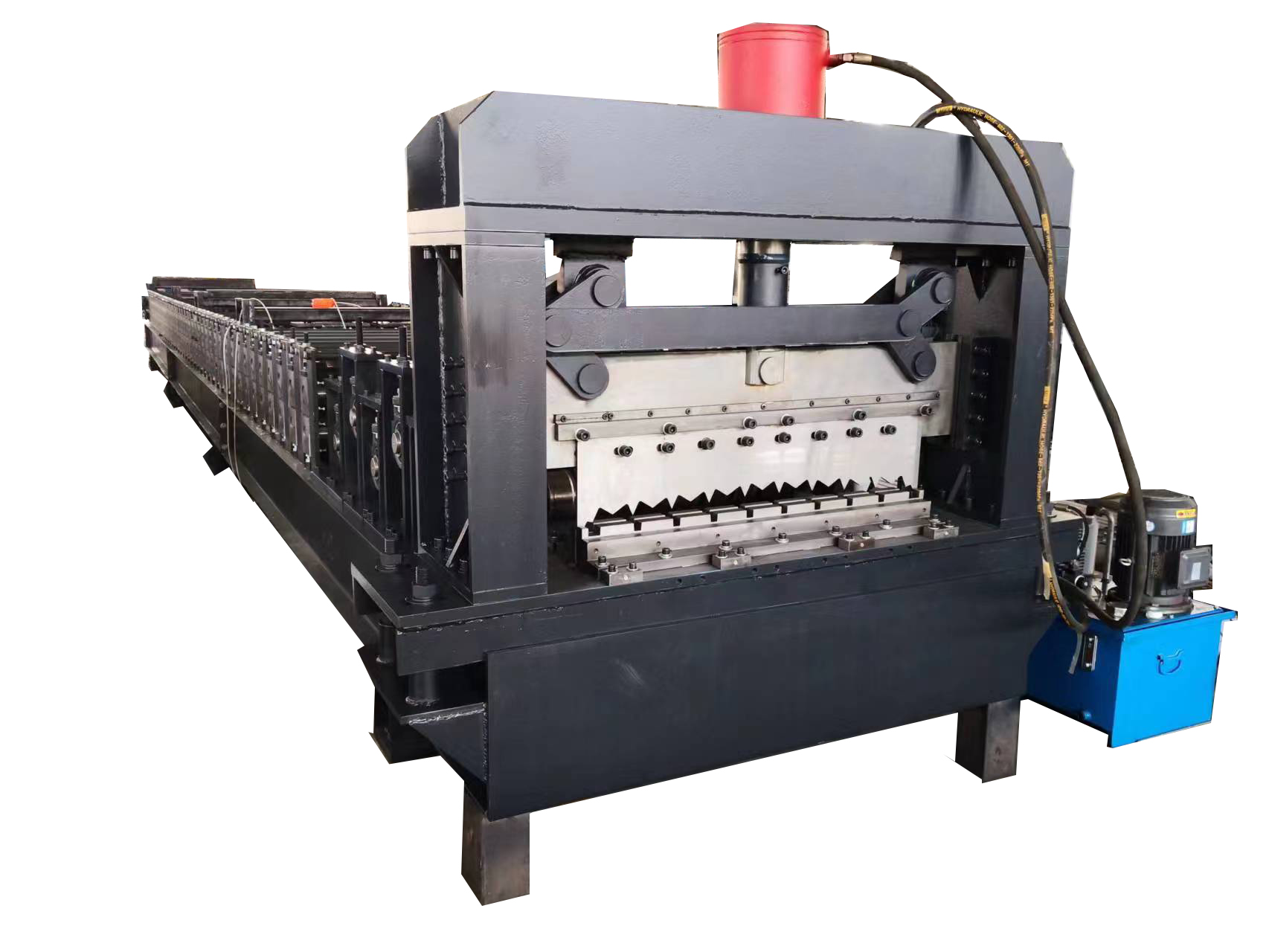

主机1
