YT-KR-001
YTSING
00110

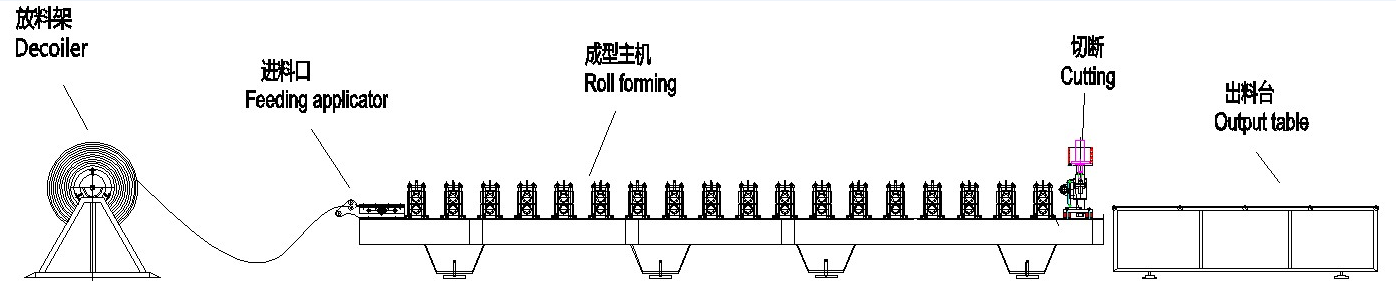

Consist of production line
A: Passive Decoiler |
B: Feeding Applicator |
C: Roll Forming Unit |
D: Hydraulic Cutting |
E: Output Table |
TECHNICAL DATA
No. of Work Station | 18 working stations |
Max. Roll shafts Dia | 76mm |
Required Motor Capacity | 11 K.W |
Max. Line Speed | 20mtr./min(Not include shear) |
Transducer | Yaskawa |
Roller material | GCr 15, CNC machining, hard chromed |
Transmission | Chain driving |
Cages | Use the strong steel nets |
Leveling screws on base | With thick metal plates |
