Elevator guide rail making machine delivery to customer's factory

Views: 308     Author: Site Editor     Publish Time: 2023-07-05      Origin: Site

Elevator guide rail making machine delivery to customer's factory

Parameter
Finished Product Thickness 2.0-2.5mm
Material Q235
Effective width 50MM
Machine Main Specification
Coiler+Leveling Dimensions for   decoiler 500*800*800mm
Capacity 3 tons
Mandrel expansion by manual
Leveling 7rollers(top3+down4)
Punching unit Dimensions for   punching 3000*800*1000mm
Working station 7 stations
Punching Material Cr12.Mov.HRC58-62
Power of hydraulic station 7.5KW
Roll forming part Dimensions for   rollformer 15000*1800*1500mm
Structure Column
Working Station 19working stations
Roller Material GCr15,Double   machining
Shaft Diameter 76mm
Driving System Gearbox driving
Main power 18.5KW
Cutter Material mould blade
Power of hydraulic station 4.0KW
Cutting   System Hydraulic and tracking

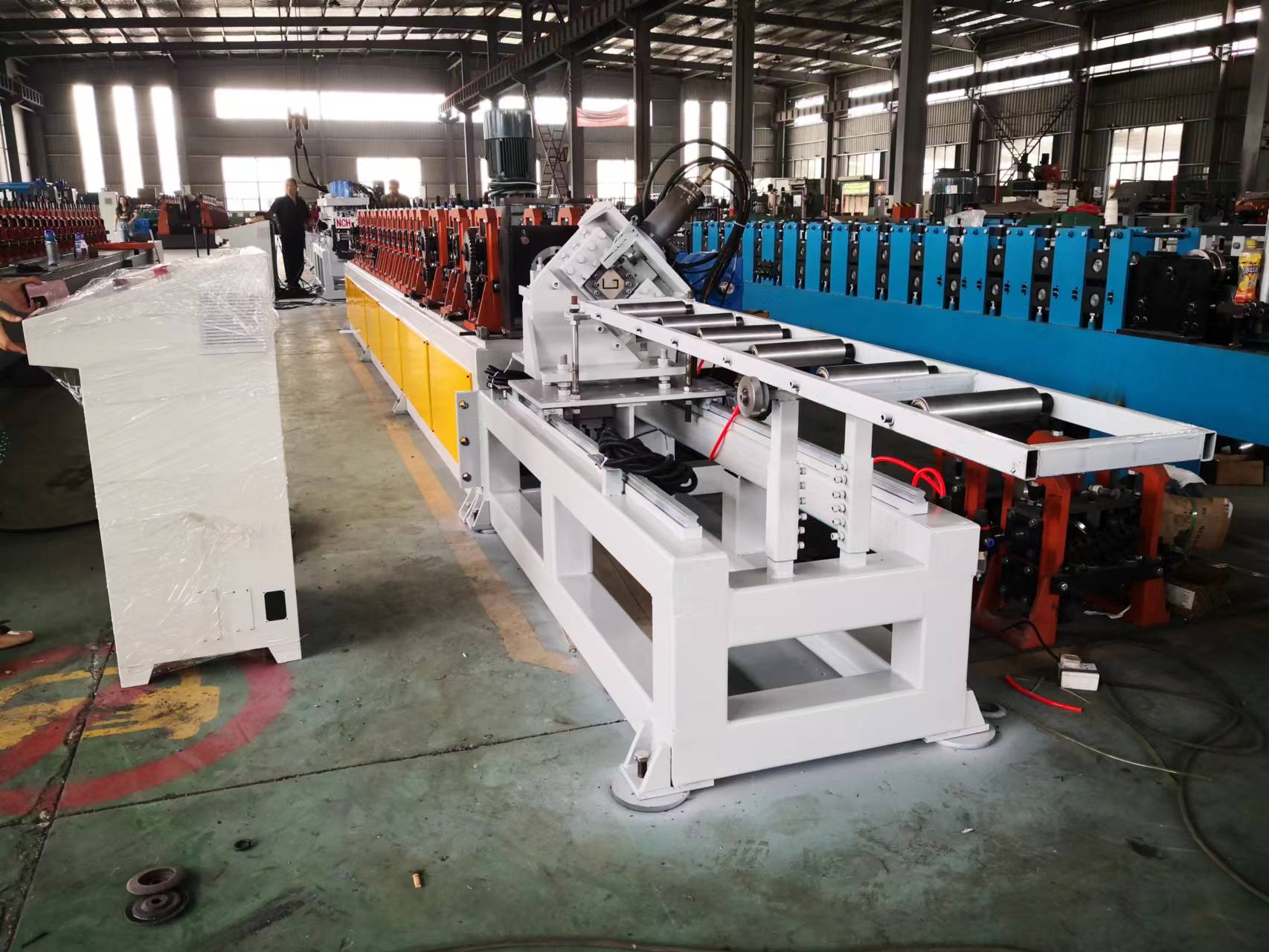

微信图片_20230705084926

微信图片_20230705084920
