Rack Post C Shape Roll Forming Machine With Punching Holes Fully Automatical

  • YD-RP-001

  • YTSING

Availability:

Item

Parameter

Material

Thickness

1.5mm

Un-powered Decoiler

Coil weight

3tons


Diameter shaft

130mm


Material of shaft

Gcr45 steel

Leveling unit

Working rollers

7 rollers(3 upper rollers, 4 down rollers)

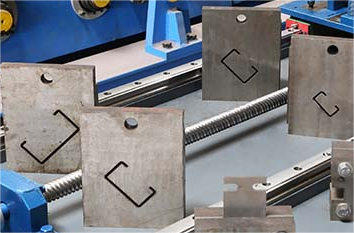

Forming stand

Station

18stations


Shaft Material

45# steel 75/85mm diameter


Frame body

350H


Roller materail

45# steel quenching and tempering treatment


Main motor

15kw


Forming speed

12-18m/min(excluding punching and cutting)


Voltage

380v,50hz,3ph


Transport

Chain driving

Hydraulic Cutting

Material

Blade and mold material: Cr12mov steel with quenched

treated 60-62℃


Motor power

5.5kw

Hydraulic Punching

Material

Mold material: Cr12mov steel with quenched

treated 60-62℃;Punching Power: 5.5kw

Hydraulic oil pump

Motor

5.5kw hydraulic oil pump


Screen

5.7inch Siemens Touch Screen


PLC and frequency

conversion

Siemens PLC,Yasakaw Frequency Changer


Other electronic components

Schneider




Use

1)Automatic length and quantity measurement 2)Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.

3)Error is easy to adjusted.


Language

English and Chinese

Product

Length

Based on requirements


Length tolerance

+-1mm
