YD-DR-01
YTSING

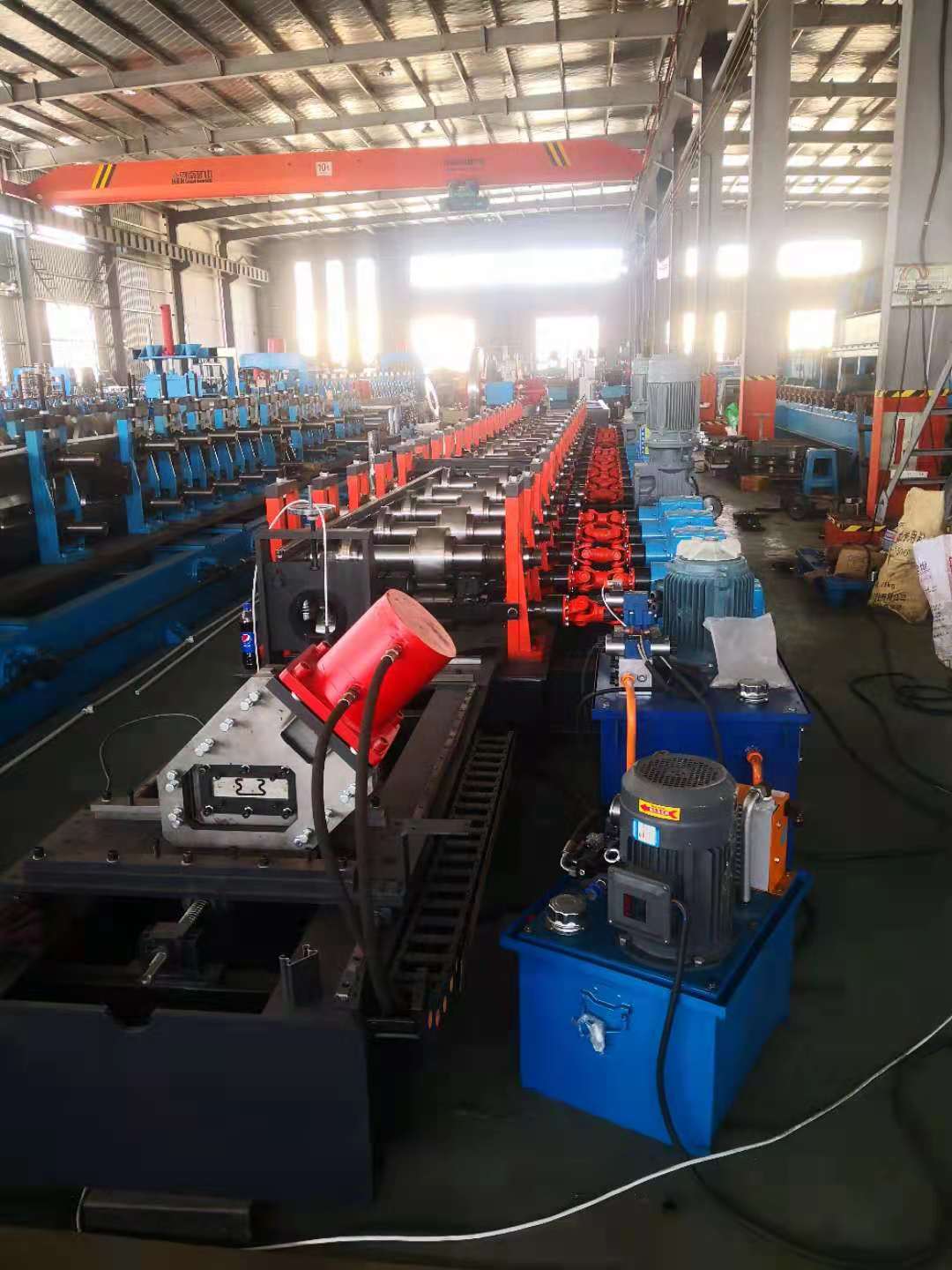

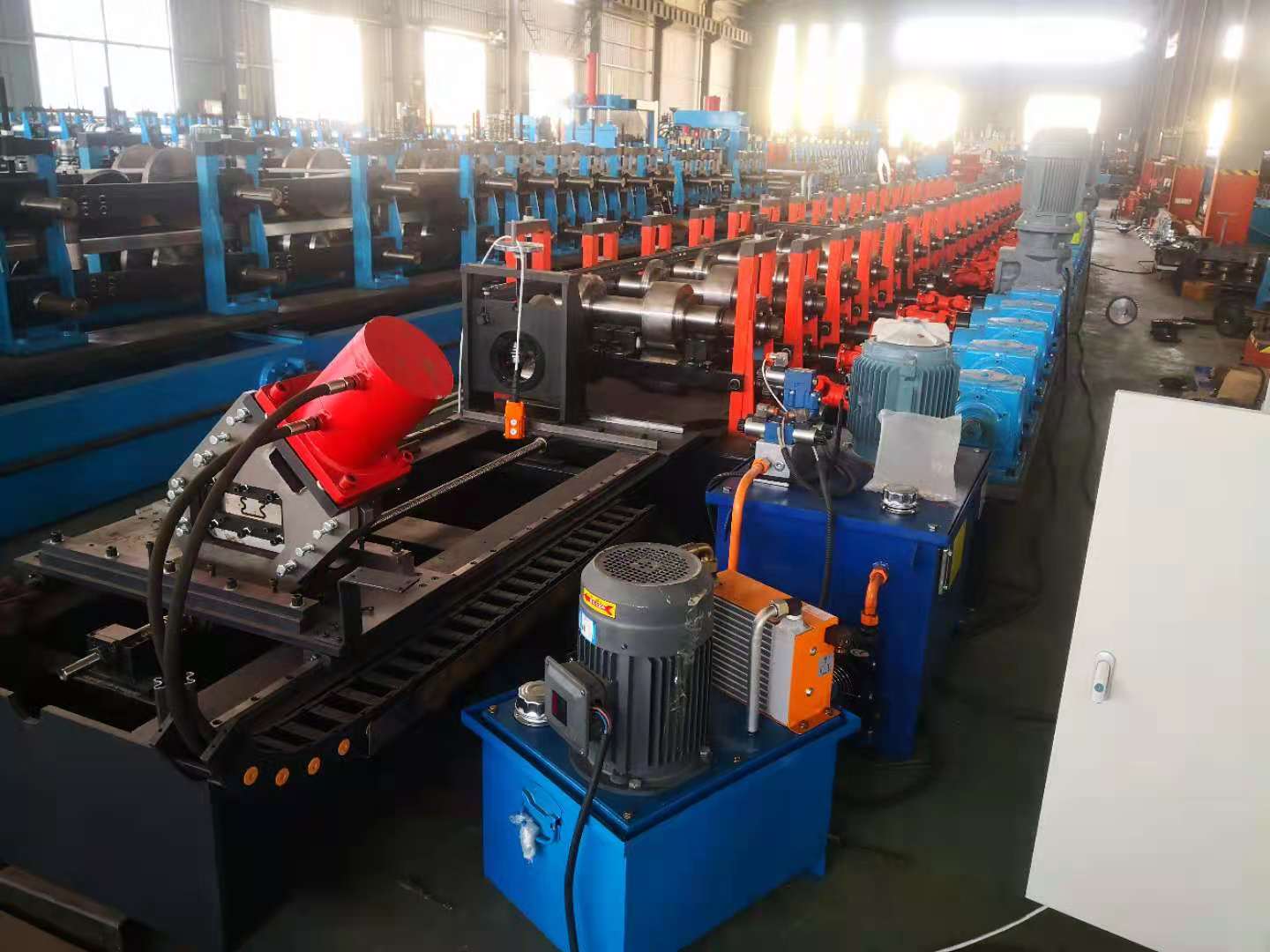

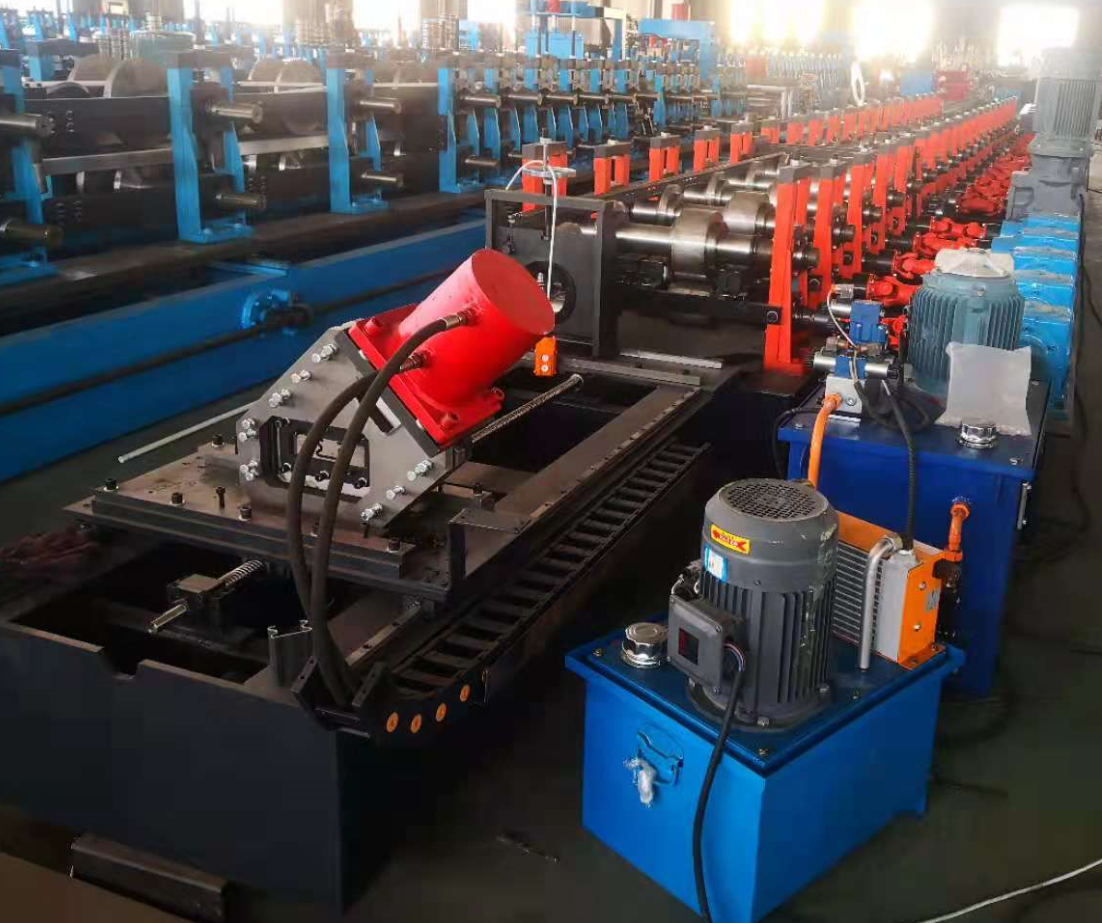

Double Row Guide Rail and C Purlin Roll Forming Machine
Total power required | 42.8kw |
Dimensions (L*W*H) | 9m*2m*1.6m |
Overall packing shipment | One 40ft container |
Working hours per day | 8 to 16 hours |
Set up time | 20 min |
Line direction | Left to right while facing operator panel |
Machine frame | H-BEAM frame |
Variable l ine s peed | 10-15mtr./min. |
Material loading system | Manual |
Accuracy level | Profile dimension +/- 0 .5 mm |
Cut length: +/-1.5 -2.0 mm |
The whole line adopts PLC control, LCD display touch screen, man-machine interface. Realize the communication between people and PLC. The operator automatically runs (programmable control) through the program set and monitors the control process, so that the operator can control the production line and modify the control parameters, and can monitor the equipment running state, running parameters and fault indication in real time.
