YD-PW-01
YTSING
Availability: | |
---|---|
生产能力/Production capacity:
序号 No. | 项 目 Project | 数 值 Numerical value | 备 注 Remark |
1 | 制管外径 Tube outer diameter | Φ35mm~Φ95mm | 方管/Square tube: 25X25mm~75X75mm |
2 | 制管壁厚 Pipe wall thickness | Δ1.0mm~4.0mm | |
3 | 制管速度 Pipe making speed | 20M/min~60M/min | |
4 | 制管长度 Pipe length | 4M~9M |
带钢规格 / Strip Specifications:
序号 No. | 项 目 Project | 数 值 Numerical value | 备 注 Remark |
1 | 钢带厚度 Strip thickness | Δ1.0~4.0mm | 材质/Material: Q195,Q235, Q355 |
2 | 钢带宽度 Strip width | H100~300mm | |
3 | 钢卷外径 Coil outer diameter | Φ1000mm~Φ1500mm | |
4 | 钢卷内径 Inner diameter of steel coil | Φ470mm~Φ520mm | |
5 | 卷重 Maximum roll weight | ≤8000kg |

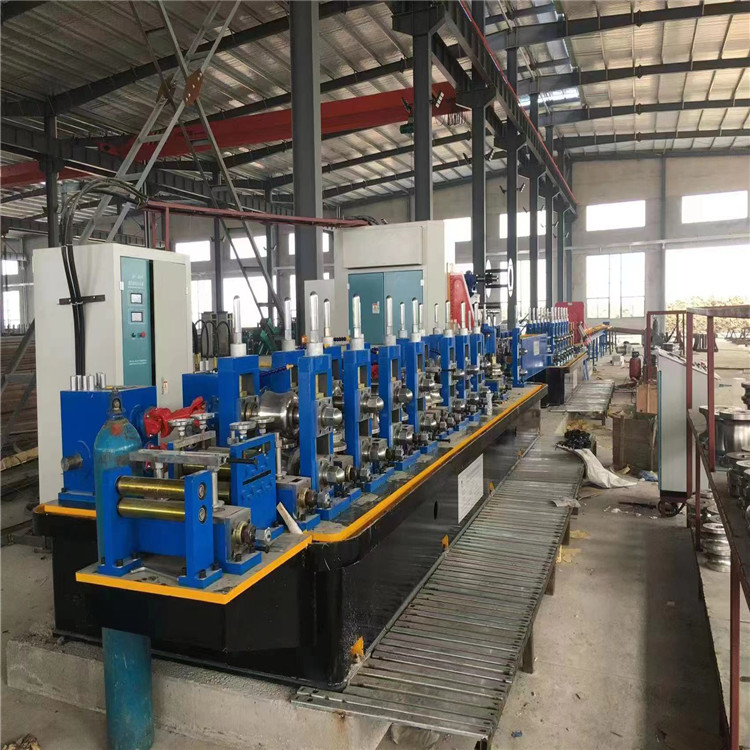

生产线工艺流程/Production line process:
原料(带钢卷)→开卷→剪切、对焊→储料→被动矫平→成型轧制→高频焊接→去除外毛刺→喷淋冷却→定径、整型→粗矫直→定尺切断→收管、捆扎。
Raw material (strip steel coil) → Uncoiling → Shearing, butt welding → Material storage → passive leveling → Forming rolling → High frequency welding → Removing external burr → Spray cooling → Sizing, Shaping → Rough straightening →Sizing Cut off → Take up the tube, bundle.
生产能力/Production capacity:
序号 No. | 项 目 Project | 数 值 Numerical value | 备 注 Remark |
1 | 制管外径 Tube outer diameter | Φ35mm~Φ95mm | 方管/Square tube: 25X25mm~75X75mm |
2 | 制管壁厚 Pipe wall thickness | Δ1.0mm~4.0mm | |
3 | 制管速度 Pipe making speed | 20M/min~60M/min | |
4 | 制管长度 Pipe length | 4M~9M |
带钢规格 / Strip Specifications:
序号 No. | 项 目 Project | 数 值 Numerical value | 备 注 Remark |
1 | 钢带厚度 Strip thickness | Δ1.0~4.0mm | 材质/Material: Q195,Q235, Q355 |
2 | 钢带宽度 Strip width | H100~300mm | |
3 | 钢卷外径 Coil outer diameter | Φ1000mm~Φ1500mm | |
4 | 钢卷内径 Inner diameter of steel coil | Φ470mm~Φ520mm | |
5 | 卷重 Maximum roll weight | ≤8000kg |
生产线工艺流程/Production line process:
原料(带钢卷)→开卷→剪切、对焊→储料→被动矫平→成型轧制→高频焊接→去除外毛刺→喷淋冷却→定径、整型→粗矫直→定尺切断→收管、捆扎。
Raw material (strip steel coil) → Uncoiling → Shearing, butt welding → Material storage → passive leveling → Forming rolling → High frequency welding → Removing external burr → Spray cooling → Sizing, Shaping → Rough straightening →Sizing Cut off → Take up the tube, bundle.
